Overview

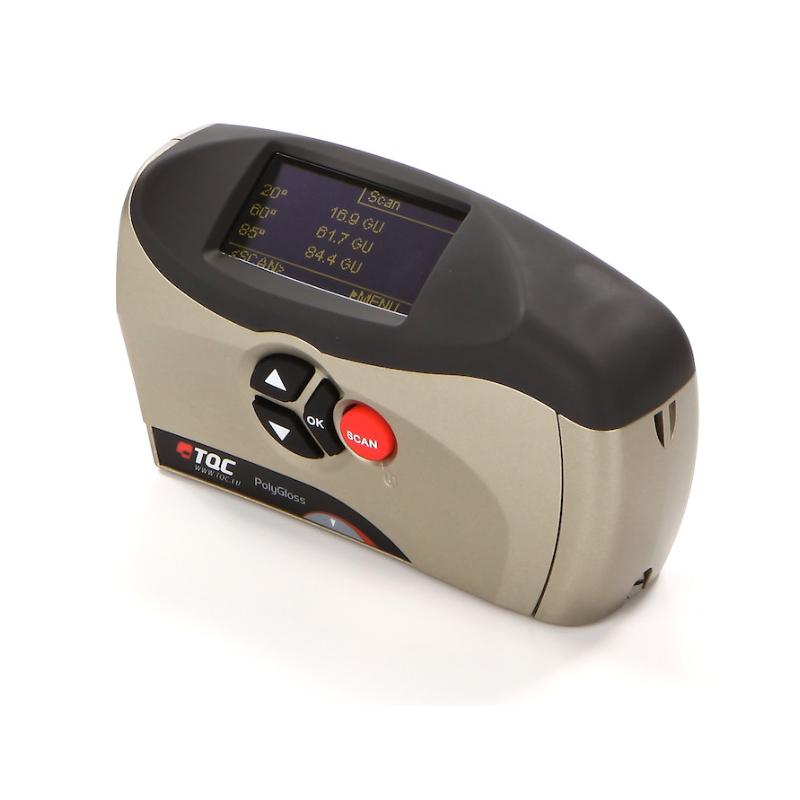

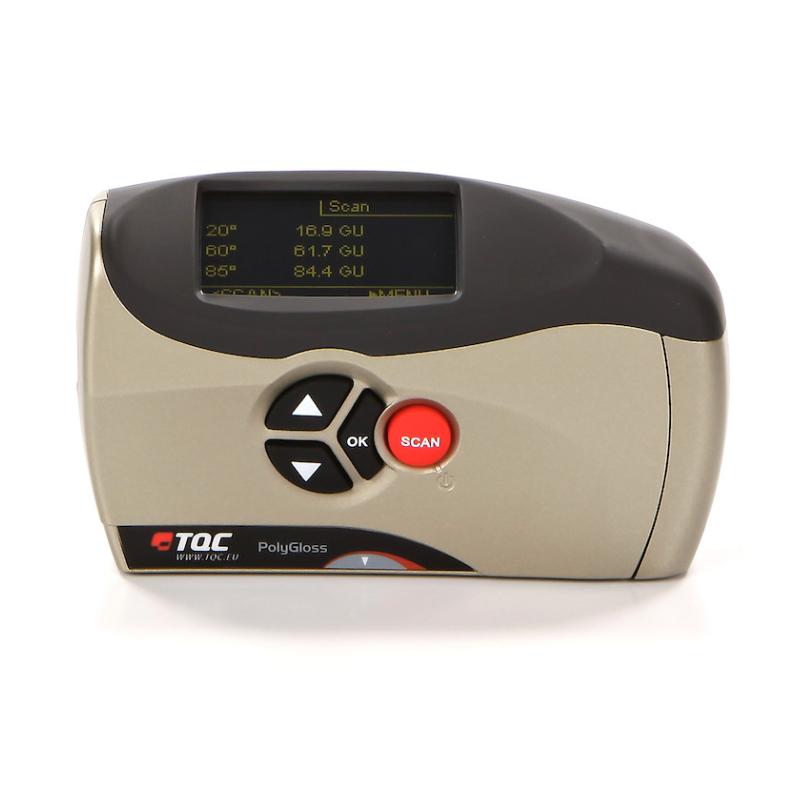

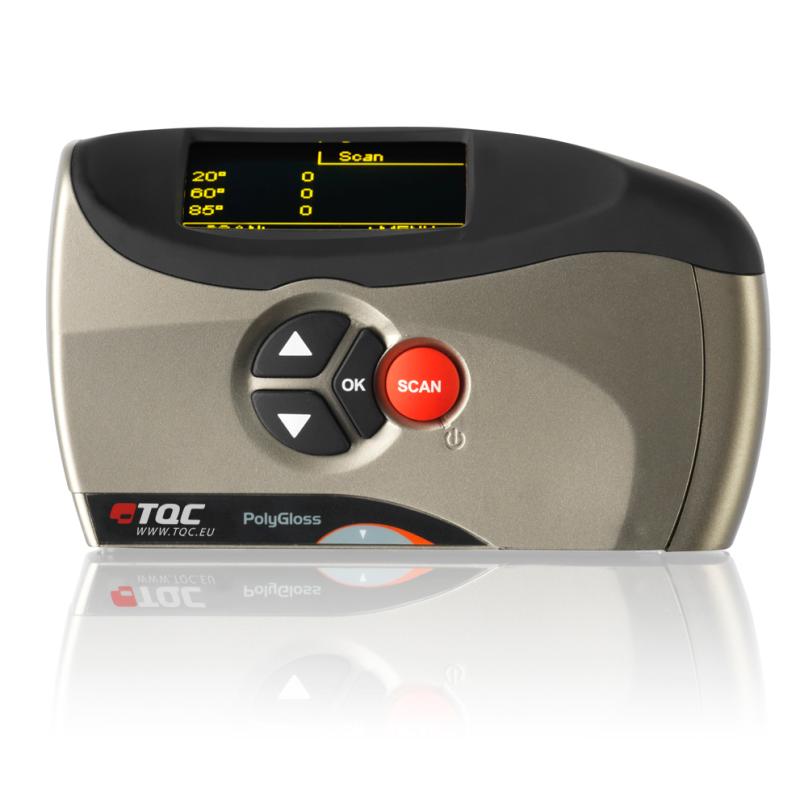

The TQC GL0030 Gloss Meter is a three-angle Glossometer for the measurement of the full range of Glossiness, including 20 °, 60 ° and 85 ° angles. The 85 ° angle is particularly suitable for the measurement of low Gloss or matte surfaces with high diffuse reflection characteristics.
Features

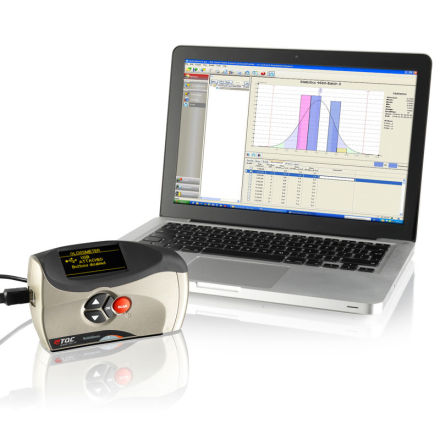

1. Optical inspection Stability; 2. LED light source; 3. OLED display, high visibility and contrast ratio; 4. Ergonomic shape, suitable for left-handed and right-handed users; 5. USB port; 6. Users can calibrate by themselves; 7. Menu operation; 8. Suitable for any platform, fast and convenient measurement of accurate Gloss level; 9. Suitable for a variety of material measurement, such as paper, plastic, paints, wood, etc.; 10. Fool operation, no special training and skills required.
Principle
The Gloss Meter calculates the Glossiness value by illuminating the surface to be measured with an LED Illuminant and using the Optical inspection Sensor to detect the intensity of reflected light at different angles (20 °, 60 °, 85 °). Users simply place the instrument in the position to be measured and press the scan button to read the value.
Applications
Paper, plastic, paints, wood and other material gloss measurement
Standards
ISO 2813、ASTM D523、ASTM D2457、ASTM C584、AS 1580 (602.2)、BS 3900 D5、DIN 67530、JIS Z 8741、ISO 7668、MFT 30064
Steps

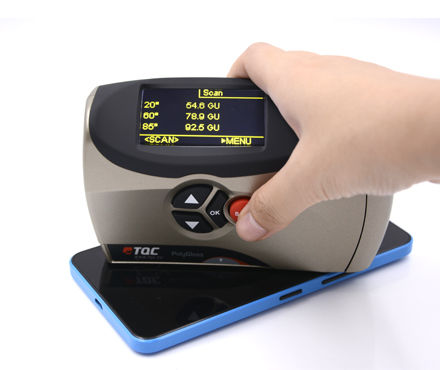

1. Place the instrument on the object to be tested.
2. Press the "scan" button;
3. Read the value.
Notice
Do not use in high or low temperature environment.
• Glossometer drying at three angles.
• Since it is a precision instrument, it cannot be dropped or knocked.
• Keep it clean.
• Use a soft dry cloth to clean the instrument, do not clean with Miscellaneous materials such as wire brushes and sandpaper.
• The use of detergents may cause long-term damage.
• Do not use compressed air cleaning equipment.

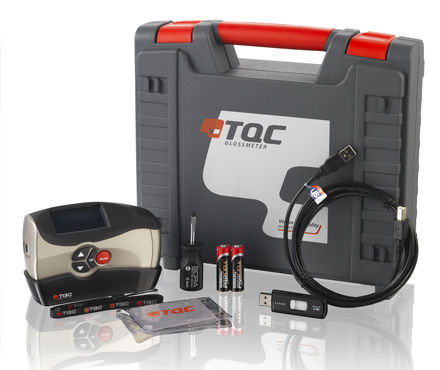

• When the three-angle Glossometer is not in use, put it in its case.
It is recommended to calibrate once a year.
