Overview

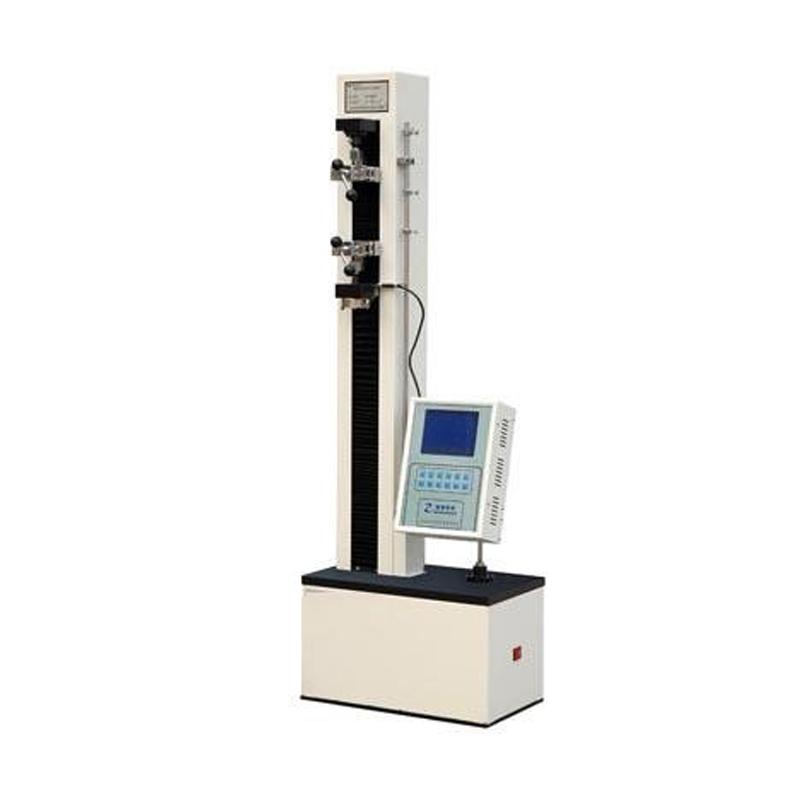

HORIZON DLS-05 Electronic Tensile Tester is a professional testing equipment for Plastic film, composite film tensile strength, fracture elongation, Modulus of Elasticity measurement, as well as disbonding, tearing, heat sealing strength and other performance tests.
Features
1. Operation mode of touch keys, LCD display multiple interfaces in real time
2. Can be pulled off and stopped and peak maintained, with over-current, over-voltage, overload and other protection devices
3. Measurable stretching, heat sealing, disbonding, tearing and other items
4. Can be determined elongation force value, fixed force value to measure elongation, can display force value, displacement Linear dispersion
5. Single point speed regulation or stepless speed regulation (1-500mm/min)
60,000 joint adopts cross pin structure, with swing angle limit function, to ensure the test concentricity
7. Control mode closed loop, high control accuracy
Principle
High Accuracy measurement is realized by the closed-loop Control mode through touch key operation and real-time control of liquid crystal display. The structure of universal joint cross latch ensures the concentricity of sample clamping and eliminates the influence of irregular sample on Sensor.
Applications
Plastic film, composite film tensile strength, fracture elongation, Modulus of Elasticity measurement, disbonding, tearing, heat sealing strength and other performance tests
Standards
GB/T13022、GB/T8808、GB 1040、GB/T4850、GB/T 16578、QB/T 2358、QB/T 1130
Notice
• Power supply voltage must be kept within 220V +/- 10% V range
• Measurement range of 2% to 100% of maximum load
• Displacement rate adjustment range is 1~ 500mm/min
• Standard configuration includes host, a set of standard fixtures, a micro printer, disbonding test plate, and standard pressure roller
• Optional configuration can be additionally equipped with disbonding test plate and standard pressure roller
