Overview

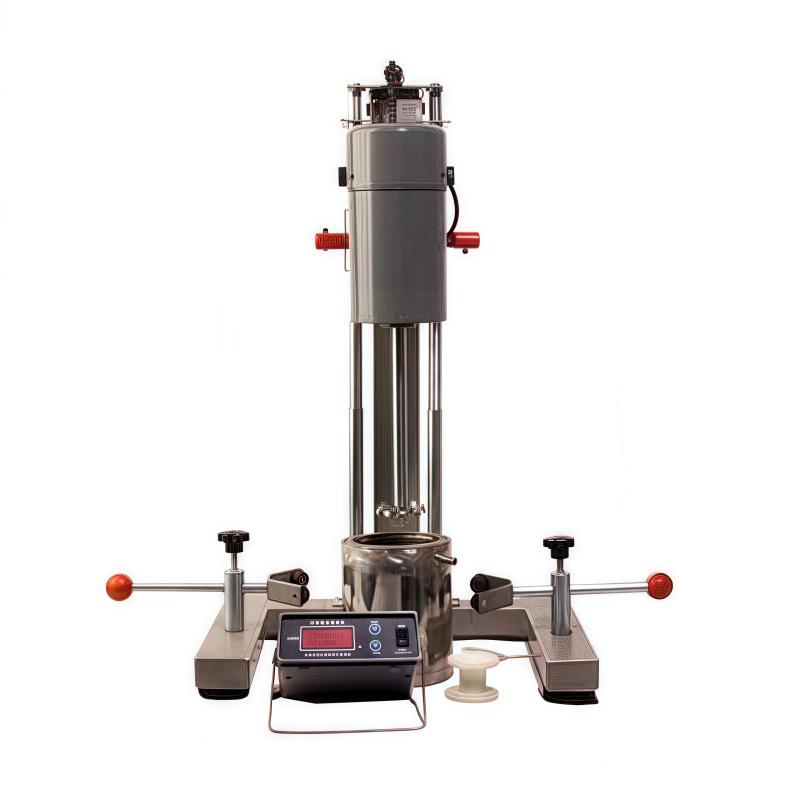

QIWEI FS400D laboratory high speed dissolver is a high-performance equipment that integrates dispersion function and stirring function. The two processes of dispersion and homogenization are completed by one machine and one container. The equipment has high efficiency, good mixing effect, easy cleaning, simple and convenient manual lifting, and is widely used in factories, scientific research institutions, Universities & colleges and medical units and other liquid materials dispersion and mixing.
Features
1. Integrating dispersion and mixing functions, one machine completes the dispersion and homogenization process
2. High efficiency, good mixing effect, easy to clean
3. Manual lifting is simple and convenient
4. Electronic constant force speed regulation, digital direct display of shaft Rotation speed
5. Equipped with dispersed impellers and sand discs to adapt to different test needs
6. Process data can be provided according to the relationship between shaft speed and material viscosity
Principle
This equipment adopts electronic constant force speed control line, digital direct display shaft Rotation speed, and equipped with dispersed impeller and sand grinding disc. The disperser head generates swirl/spin tangential high linear speed under the high-speed drive of the motor, and the material produces strong hydraulic shearing and high-frequency mechanical effects under the action of huge centrifugal force, so that the fluid material can withstand thousands of shearing and high-frequency mechanical effects per minute, so as to achieve the effect of efficient mixing, dispersion and homogenization.
Applications
Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Install dispersion head or sand disc
2. Put the material into the stainless steel drum
3. Adjust the position of the dispersion head through the manual lifting bracket
4. Use intelligent motor speed controller to set Rotation speed
5. Start the device for decentralized mixing operation
6. Clean the equipment after completion
Notice
• The maximum processing viscosity shall not exceed 10000mPa.s
• Processing capacity range of 2~ 5kg
• Speed regulation range is 100~ 8000rpm
• Make sure the components are firmly installed before use
• Pay attention to safety protection during operation
• Regular maintenance of equipment
