YONGLIDA SHG-700 wet film thickness Gauge Wet Film Comb Stainless Steel 250~ 700 microns

Name: YONGLIDA SHG-700 wet film thickness Gauge Wet Film Comb Stainless Steel 250~ 700 microns
Brand: YongLiDa
SKU: NB003510
Price: 117.0 USD
Availability: InStock

$ 117.00Ex works

Range 250~ 700 microns, Division 45 microns, made of stainless steel, Dimension 65 * 43 * 1.5 mm, suitable for on-site construction environment.

Model

SHG-700

Get Quote

Category : Wet Film Thickness Gauge

Brand : YongLiDa

SKU : NB003510

Service :The delivery and service By NBCLab.Com

Overview

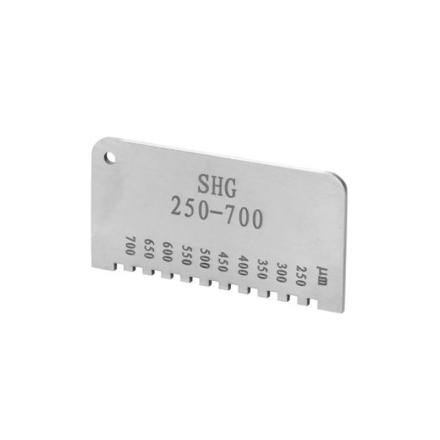

YONGLIDA SHG-700 wet film thickness gauge (Wet Film Comb) is a stainless steel wet film thickness gauge with a range of 250~ 700 microns. This product is suitable for construction sites in Paints, paints, Coatings and other industries.

Features

1. Stainless steel material, sturdy and durable 2. Range 250~ 700μm, covering common wet film thickness 3. Division 45μm, Measurement accuracy is high 4. Dimension 65 * 43 * 1.5mm, compact and portable

Principle

The SHG-700 wet-film gauge uses the comb gauge principle to determine the wet film thickness by vertically pressing the gauge teeth into the wet-film surface and observing which gauge teeth contact the substrate.

Applications

Paints, paints, Coatings industry construction site

Steps

1. Press the wet-film gauge vertically into the surface of the wet-film to be tested 2. Keep the gauge body in parallel contact with the substrate 3. Observe the condition of Coatings on the teeth 4. Read the scale value of the last contaminated Coating 5. The scale value is the wet film thickness value

Notice

• Make sure that the wet-film gauge is pressed vertically into the surface during measurement • The gauge must be in parallel contact with the substrate • Residual Coatings on the gauge teeth should be cleaned in time after measurement • Avoid moving or bumping the thickness gauge when the Coating is not dry • Keep the gauge teeth clean and drying during storage

Range
250~700μm
Dimension
65x43x1.5mm
Graduation
45μm
material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
