Overview

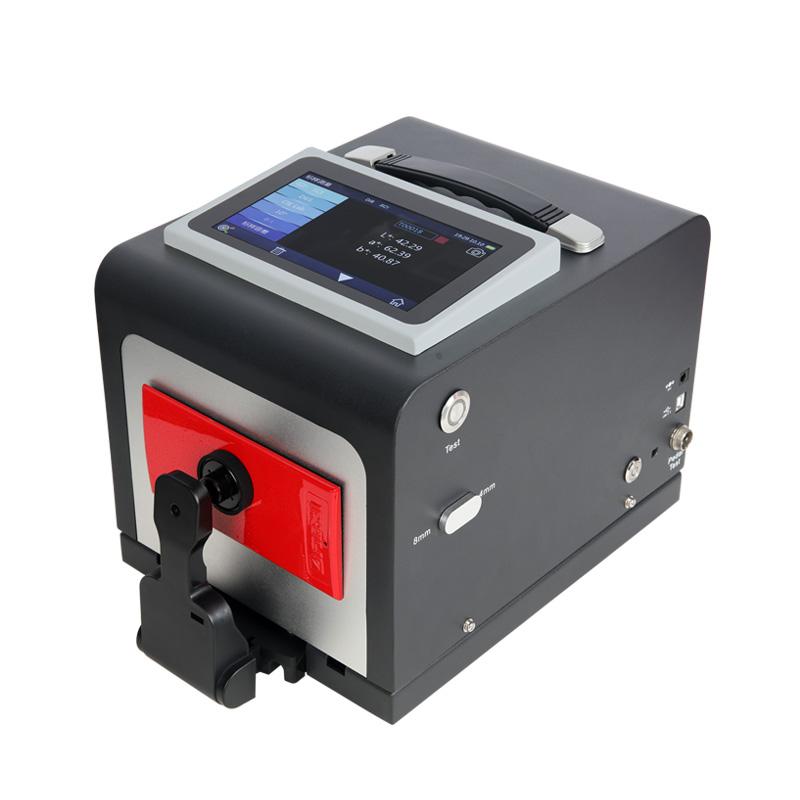

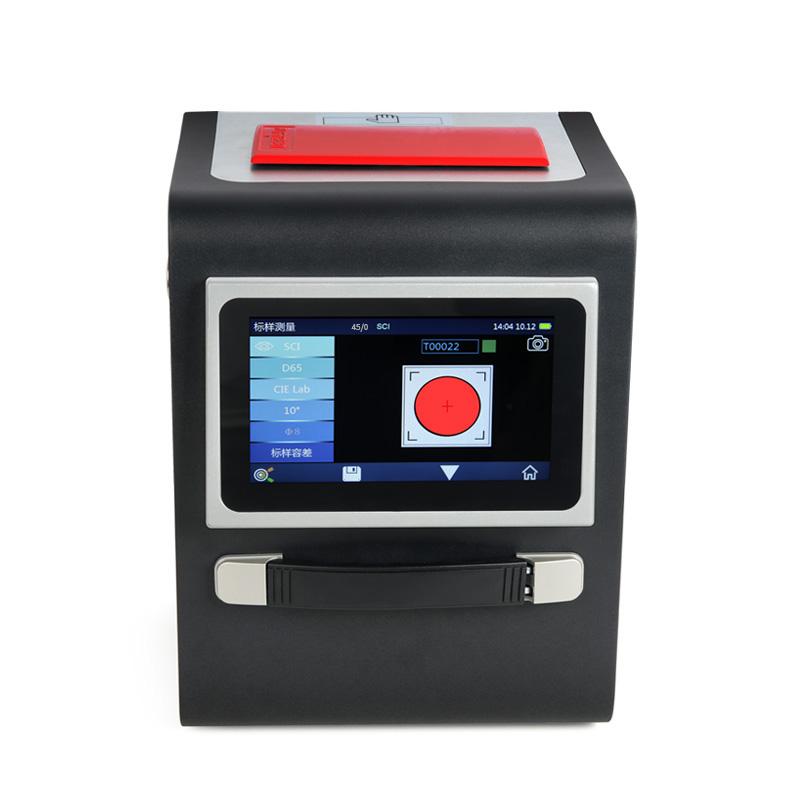

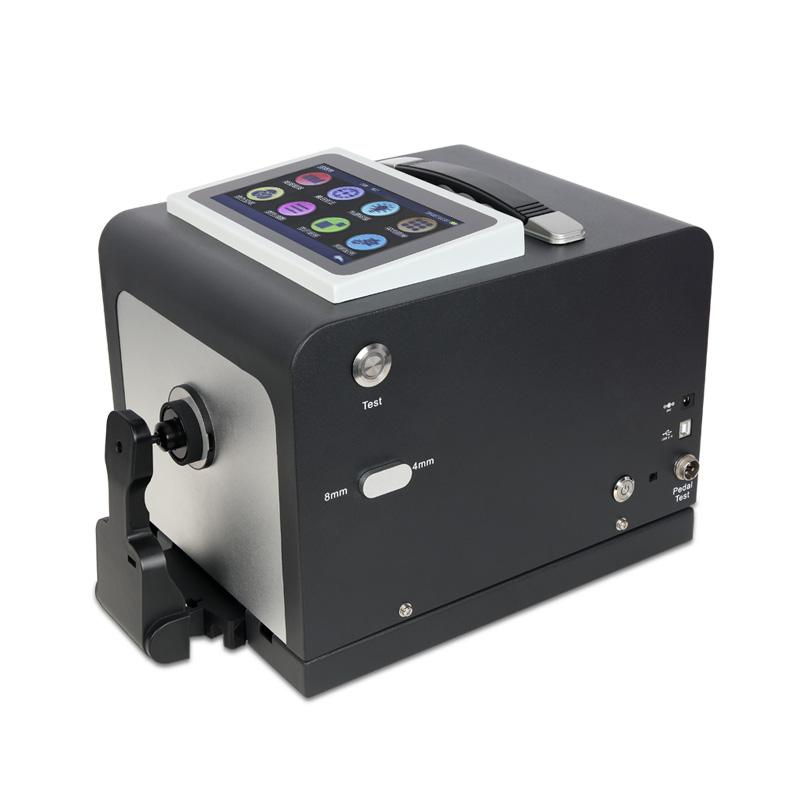

The portable Benchtop Colorimeter TS8210 is a Colorimeter developed by 3nh using independent spectroscopic core technology. It adopts built-in silicon photodiode array (dual row 40 groups) sensors and imported whiteboards, while taking into account the convenience of measurement speed and operation. TS8210 Repeatability Delta E * ab is easily controlled within 0.025, Inter-instrument Agreement Delta E * ab is controlled within 0.2, and accurate measurement can be used for accurate analysis and transmission of laboratory Color.
Features
1. Adopt international common D/8 structure, compatible with SCI/SCE measurement, and support SCI + SCE simultaneous fast measurement
2. Silicon Photodiode Array (Double 40 Array) Sensor
3. Various Color measurement spaces, Various Observation Illuminants
4. Combined Full Light spectrum LED Illuminant
5. Measurement verification report
6, camera view positioning, can clearly observe the measurement area
7, Industrial high definition Touchscreen, easy to use user interface
8. Color management software
9. Practical Accessories
Principle
The TS8210 Portable Benchtop Colorimeter uses planar grating spectroscopy to achieve accurate measurement of Color by combining Full Light spectrum LED Illuminant illumination and Silicon Photodiode Array Sensor to receive reflected light signals.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, ceramics
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps

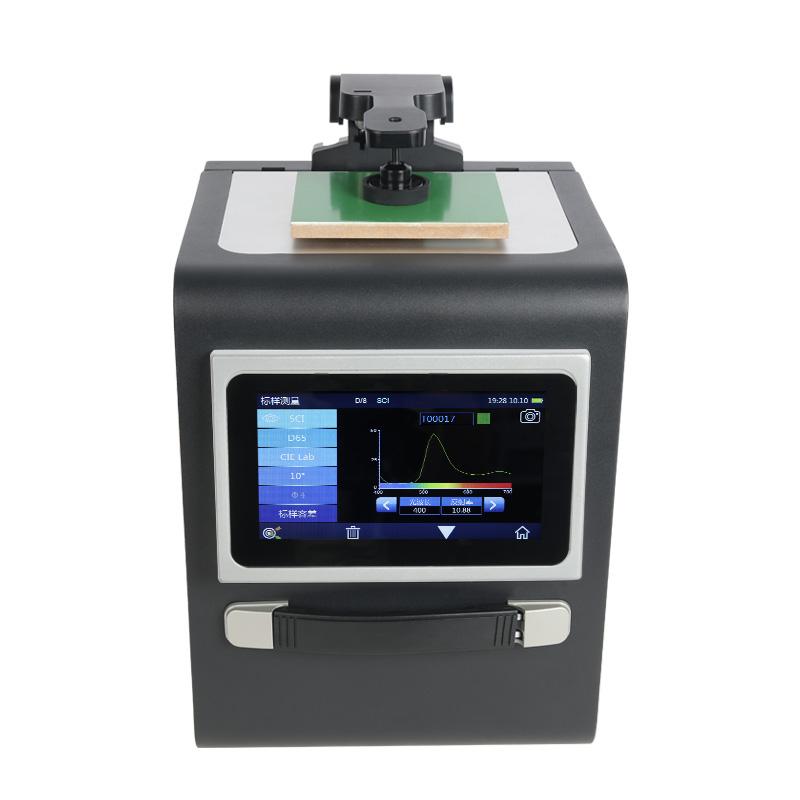

1. Accurately determine the measured part through camera viewing and positioning
2. Measurement mode and parameters
3. Perform a single or average measurement
4. View measurement results and Data analysis
5. Data management and report generation through SQCX quality management software
Notice
• Operating Ambient Temperature should be in the range of 0~ 40 ℃
• relative humidity should be controlled at 0~ 85% RH (no condensation)
• Operating Environment Altitude should be less than 2000m
• Storage Ambient Temperature -20~ 50 ℃
• Avoid operating and storing instruments under condensation conditions
