Overview

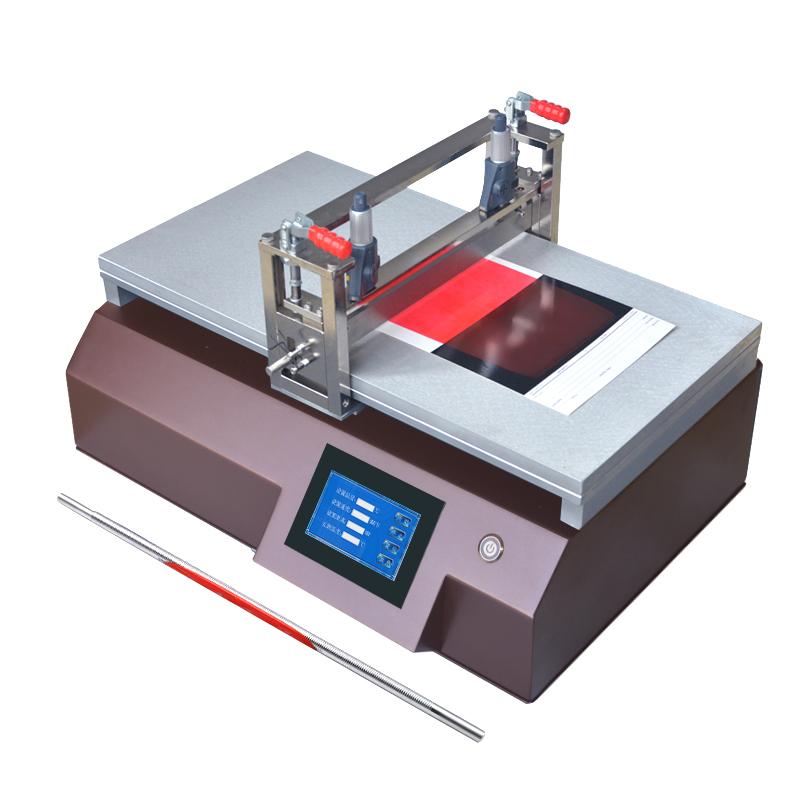

TBJ-X4-DJ1 Automatic Film Applicator is a small experimental Lab Film Applicator with imported accessories and low price, which is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the uniformity and smoothness of Spreader's gluing are guaranteed, the problem of artificial film inconsistency is solved, and the film reproducibility is improved. One China and one imported bar are standard.
Features
1. Using imported accessories, the price is good and cheap; 2. Control Spreader speed and stable pressure to ensure Spreader uniformity and smoothness; 3. Improve film reproducibility and reduce manual operation differences; 4. Standard China bar and imported bar with accuracy up to 1μm; 5. Support a variety of Optional accessories and customized functions.
Principle
Automatic Film Applicator controls the speed of the Spreader and the pressure applied to the Film Applicator to achieve accurate Spreader wet-film on different substrates. Vacuum chuck is used to fix the substrate, and Touchscreen controls the operation to ensure the Stability and conformity of the Spreader process.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the substrate and place it on the Vacuum chuck baseplate; 2. Select the appropriate bar and install it; 3. Set the Spreader speed, Travel and other parameters through the Touchscreen; 4. Start the device for automatic Spreader; 5. Remove the sample after completing the Spreader.
Notice
- Spreader thickness range is determined according to bar model; - coating speed can be customized below 5mm/s; - effective coating area and Vacuum Area can be customized; - Accessories such as leakage tank and substrate fixing fixture are optional; - Support a variety of customized functions such as automatic lame plating, UV curing, etc.
