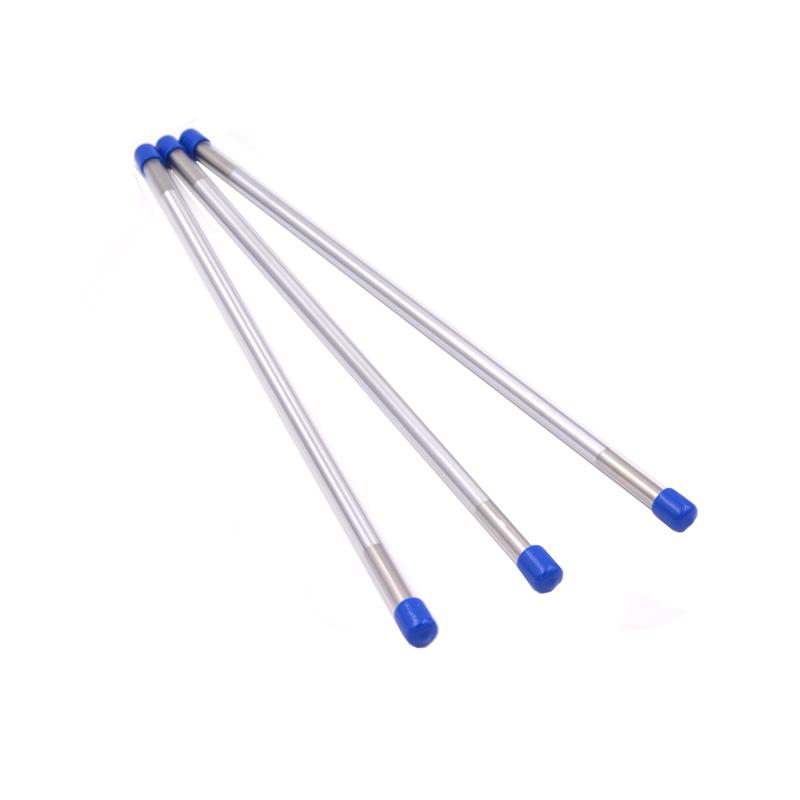

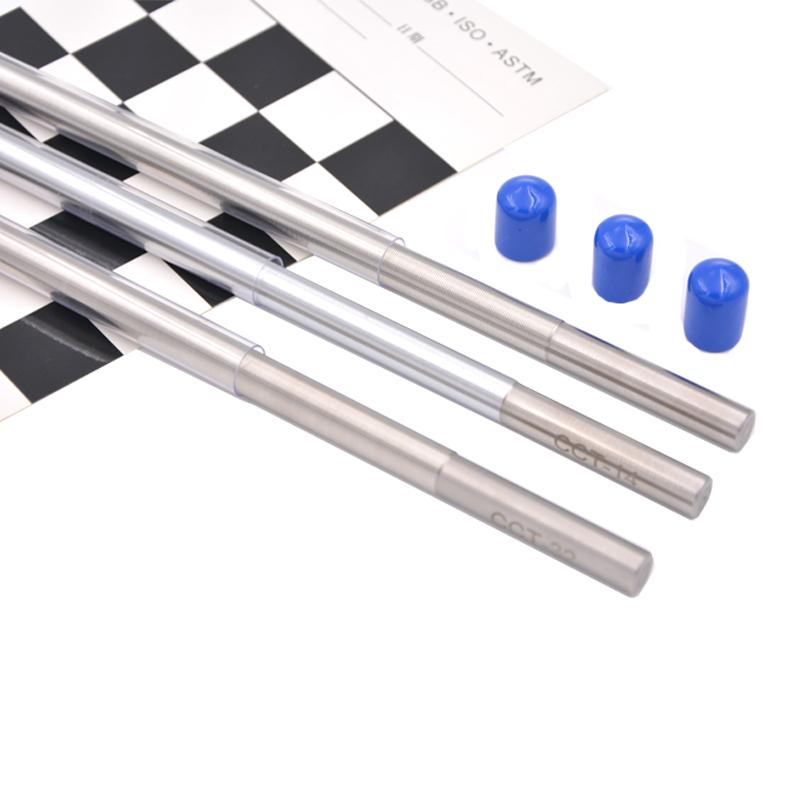

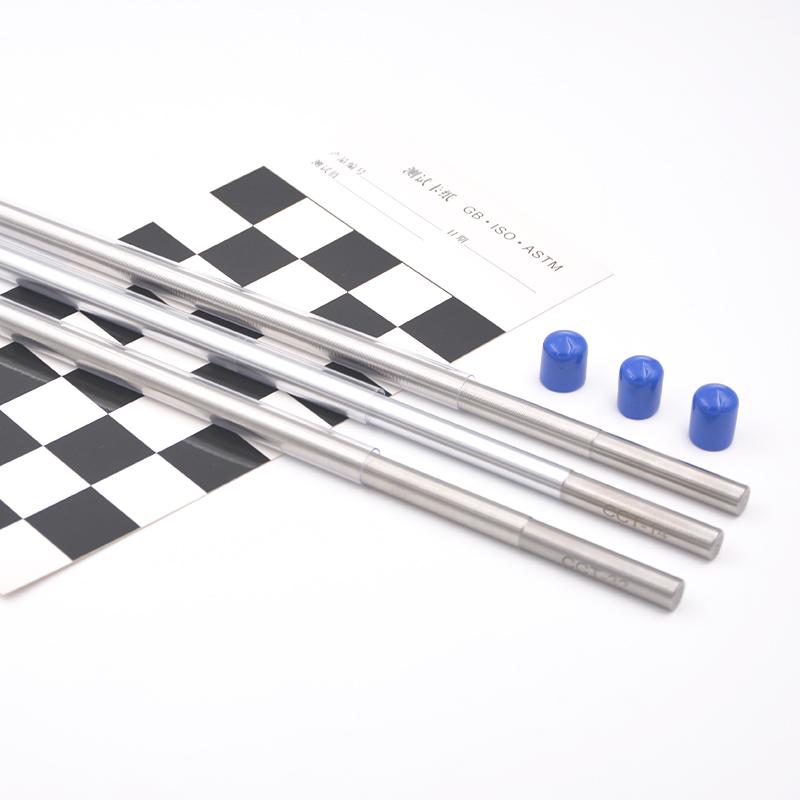

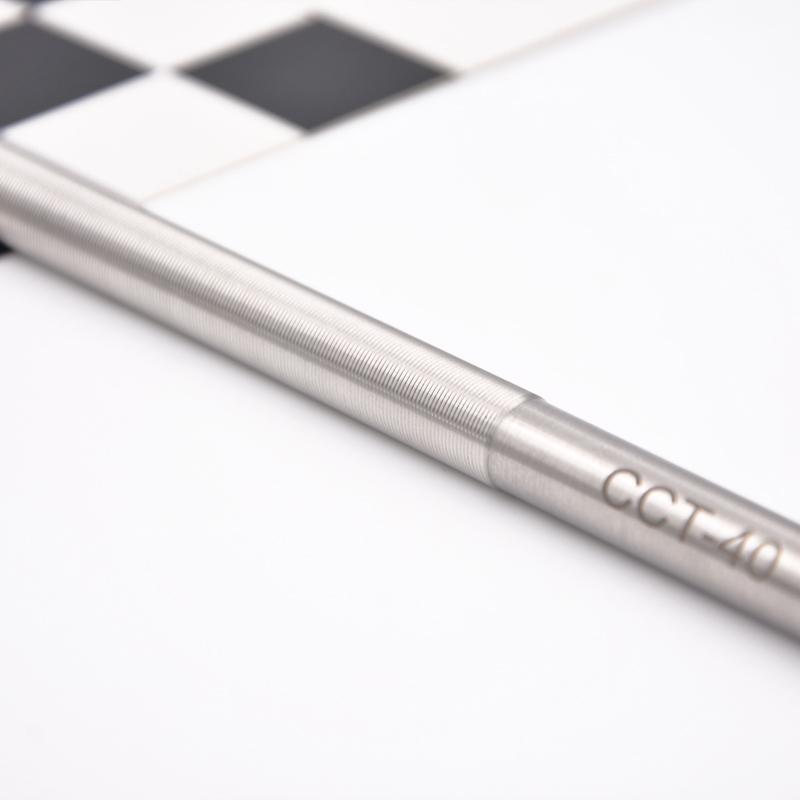

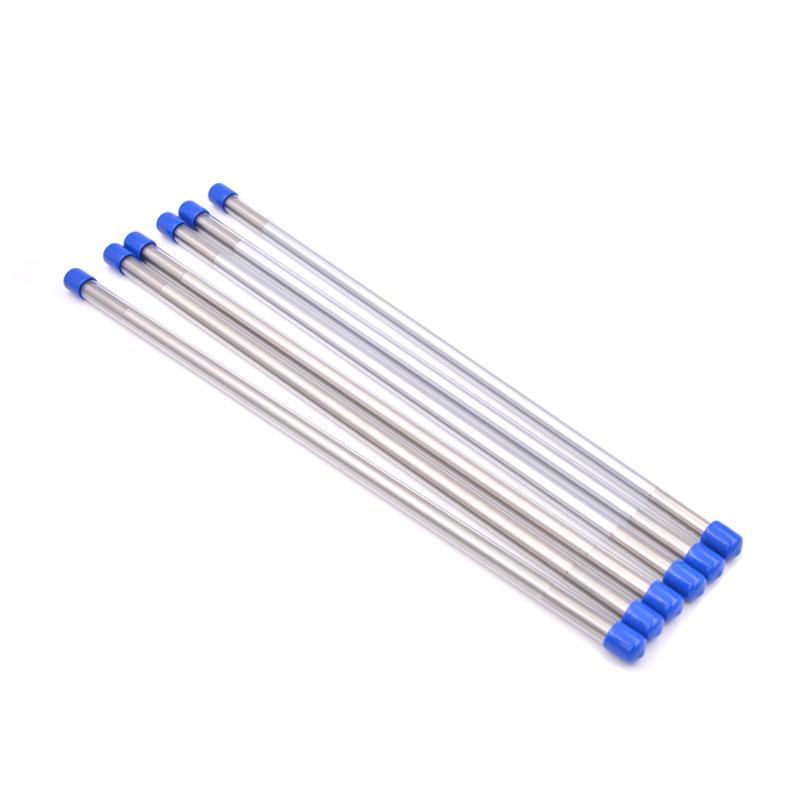

CCT CCT080-L400 coating Rod coating bar stainless steel wet film thickness 80μm

Name: CCT CCT080-L400 coating Rod coating bar stainless steel wet film thickness 80μm
Brand: CCT
SKU: NB036435
Price: 112.0 USD
Availability: InStock

$ 112.00Ex works

Made of stainless steel, wet film thickness 80μm, application width 320mm, groove design is not easy to block and easy to clean, to ensure high Spreader accuracy.

Model

CCT080-L400

Get Quote

Category : Coating Rod

Brand : CCT

SKU : NB036435

Service :The delivery and service By NBCLab.Com

Overview

Metering rod is commonly known as coating bar, bar, coating rod, steel wire coating bar, Applicator rod, Applicator rod, grooved rod, Smoothing Rods, gluing rod, Mayer Rod. It is a kind of rod that coatings are evenly distributed on the surface of the substrate through scraping of the rod on paper, film and other substrates and reaches a fixed wet film thickness. This experimental Metering rod is mainly used in laboratory manual Spreader or with Automatic Film Applicator scraping (L400 length).

Features

1. Spreader wet-film 4-190 microns, Miscellaneous model customization; 2. The grooves are not blocked and easy to clean; 3. Spreader accuracy is high and mass control is strict; 4. More than 10 years of service in the field of Spreader; 5. Support customization;

Principle

Coating is uniformly distributed on the surface of the substrate by scraping the rod and achieving a fixed wet film thickness.

Applications

Manual Spreader, Automatic Film Applicator

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Production process
formed
wet film thickness
80μm
rod diameter
10mm
Total length
400mm
application width
320mm
Grip Width
40mm+40mm
material
Stainless steel material
