Overview

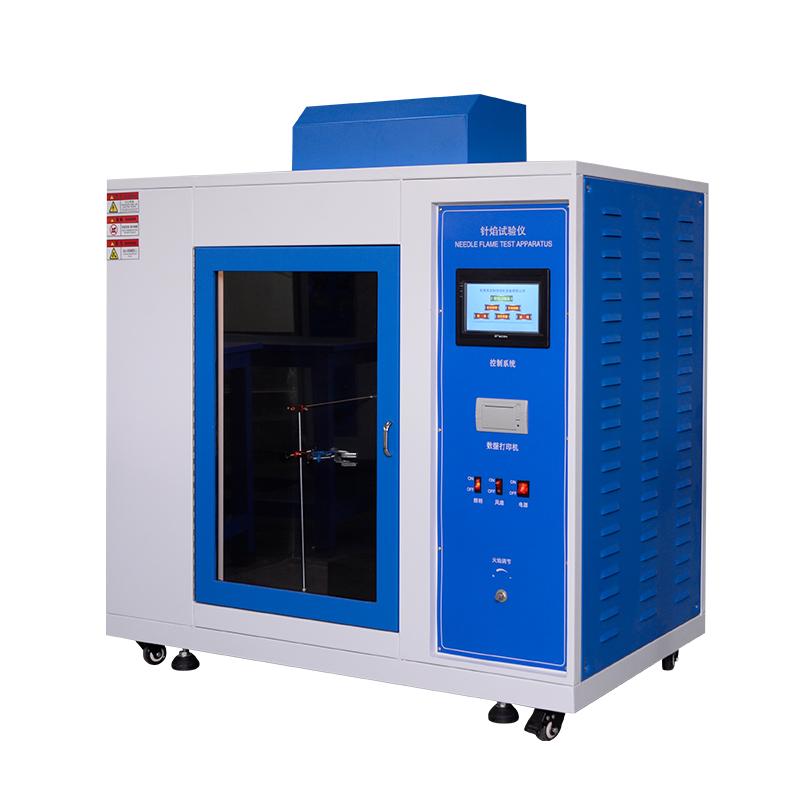

YOUKE YK3056 Touchscreen is a test equipment designed according to IEC884-1, GB 2099.1 and other standards. It is used to simulate the small flame generated by Electronics products under fault conditions and evaluate the ignition risk. The instrument is suitable for small parts that are not suitable for glowing wire test or horizontal-vertical combustion test, such as wiring boards, centrifugal switches, etc., with beautiful appearance and corrosion resistance.
Features
1. The combustion box is resistant to smoke and gas corrosion, with Glass observation door
2. Time digital display, fixture 3D adjustable
3. Control system automation, independent ventilation
4. With temperature measuring device
5. Optional Gas detection alarm device, automatically cut off the gas and start the exhaust
6. Adopt PLC + Touchscreen control, USB data export function is optional
7. System protection function prevents functional interference
8. Adopt load-bearing universal casters for easy movement
Principle
This product simulates the small flame generated in the faulty conditions of Electronics products, and assesses the fire hazard by the needle flame test method. When the sample ignites in the glowing wire test, use this instrument to further test the combustion hazard situation. Butane gas is used as the combustion gas, the flame height is adjustable, and the time for the temperature to rise from 100 ° C to 700 ° C is controlled within 23.5 +/- 1 second.
Applications
Electronic and electrical products, components of household appliances, parts, wiring boards, centrifugal switches, rice cooker sockets
Standards
IEC884-1、GB2099.1、VDE、IEC335、GB4706.1、GB5169.5、UL1694
Steps
STEP 1 Connect gas and power
2. Set combustion time and parameters
3. Place the sample and adjust the fixture
4. Start the test, observe the flame and record the data
5. After the test is completed, you can optionally export or print the results
Notice
* This machine is suitable for indoor use, Protection Rating IP20
* Check the gas connection before use to ensure that the self-locking function is normal
* Optional alarm device to monitor gas concentration
* Avoid use in humid or high altitude environments, relative humidity ≤ 95%, altitude ≤ 2500 meters
* Pay attention to fan noise and keep ventilated chill down
* Other functions are disabled when starting the function to prevent interference
