Overview

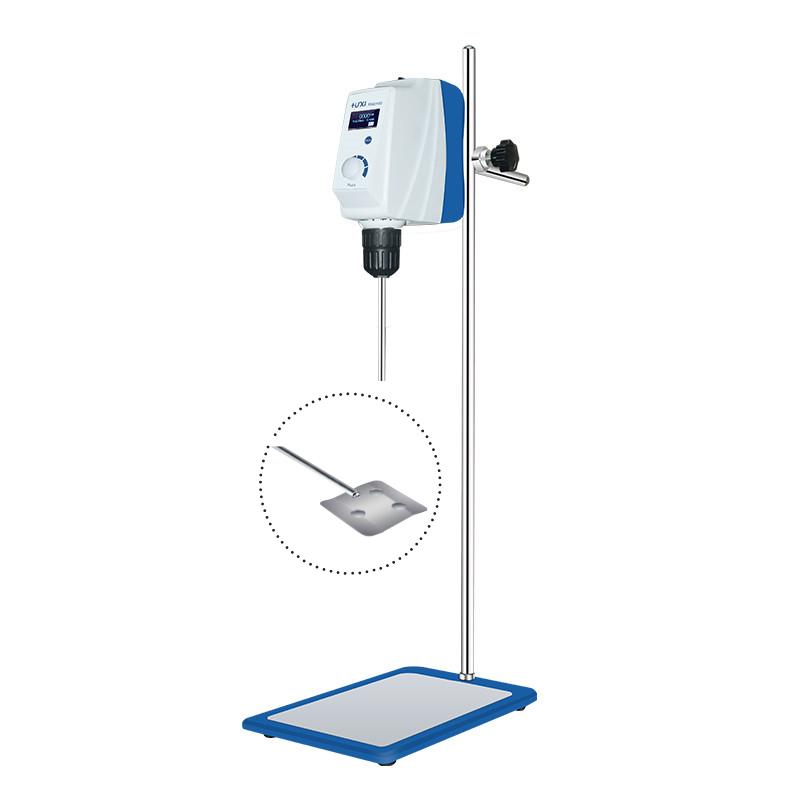

HUXI LCD top-mounted Stirrer (model RWD100/20030041/20030012) is a laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts LCD display and self-locking chuck design, which is more high-end safety than LED series. It can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection functions, automatically cut off the circuit and alarm if there is an abnormality
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller Type
2. Impeller fixed by self-locking chuck
3. Rotation speed and Working time
4. Start Stirrer for mixing operations
5. Turn off the device after the work is completed
Notice
• Only suitable for use within the Permissible Ambient Temperature range of 5~ 40 ° C
• The relative humidity should not exceed 80%
• Power supply voltage within 100-240VAC range before use
• Note that Impeller clamping diameter range is 0.5~ 10mm
• The device will automatically stop running when there is a fault display
• Please pay attention to safety measures when using
