Overview

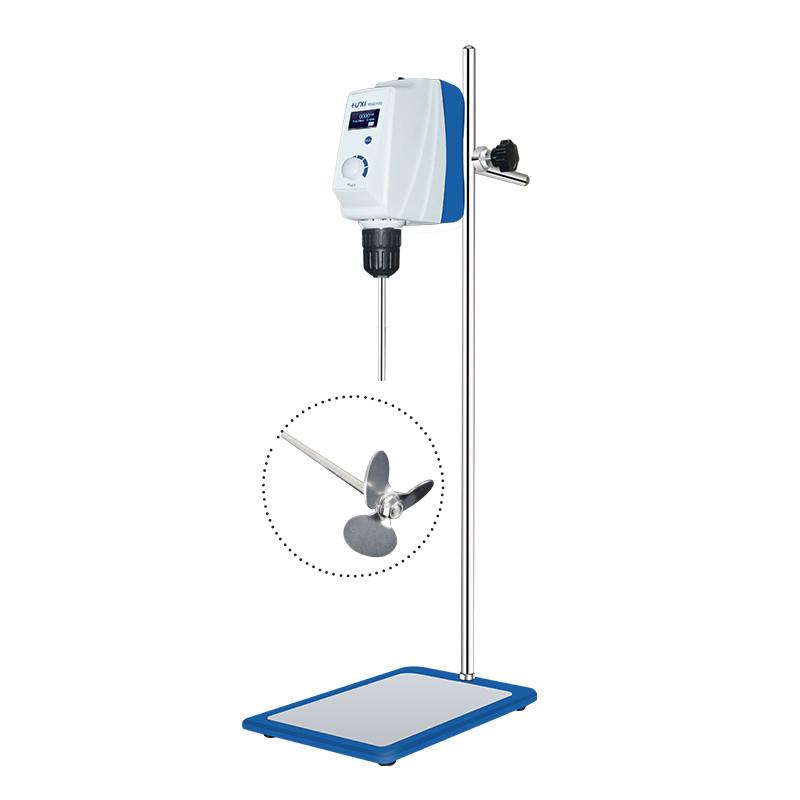

HUXI LCD top-mounted Stirrer (model RWD100/20030086/20030012) is a laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts LCD display screen and has automatic protection function for overload and abnormal conditions. It is capable of high load and long-term continuous work to ensure laboratory safety. It is mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin through a brushless DC motor to achieve mixing of medium and high viscosity liquids. The Impeller is fixed with a self-locking chuck, and the Rotation speed is controlled by stepless speed regulation. The torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it into the self-locking chuck
2. Connect the power supply and turn on the device switch.
3. Rotation speed and Working time set by LCD screen
4. Stirrer starts working
5. Power off the device after the work is completed
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ° C
• The relative humidity should not exceed 80%
• Impeller installation must be firm and reliable
• Stop using it immediately when there is a fault display
• Only for the allowable viscosity range (up to 50000mPa · s)
• Regularly check whether the equipment protection function is normal
