Overview

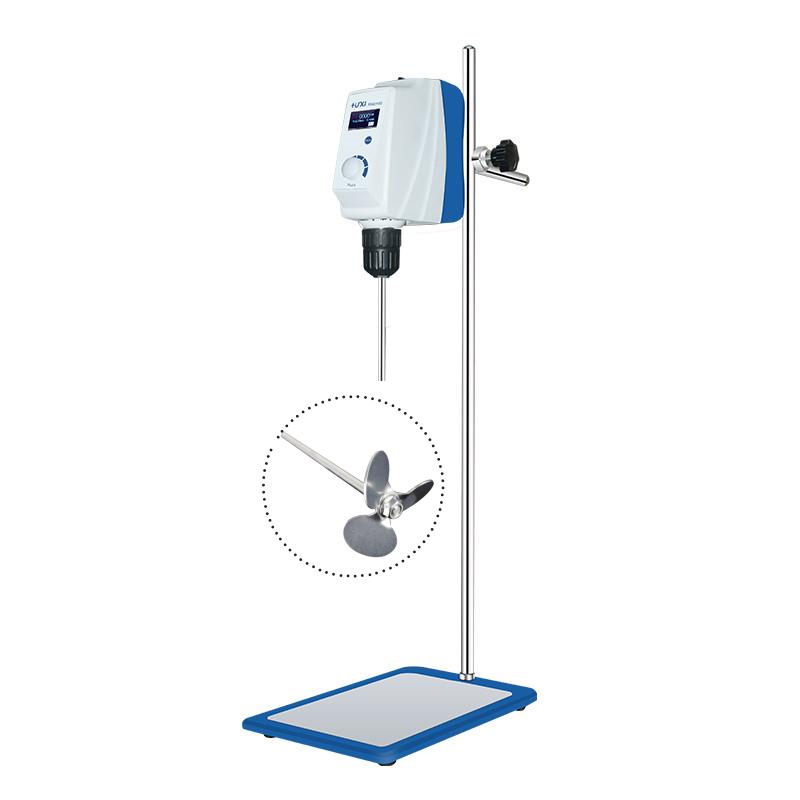

HUXI LCD Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts self-locking chuck and self-developed Cube lifting and fixing clip design. The product is capable of high load and long-term continuous work, and has the automatic protection function of overload and abnormal conditions to ensure laboratory safety. It is widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection functions, automatically cut off the circuit and alarm when abnormal
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the viscosity change of the sample to ensure the mixing effect. In the event of overload, short circuit or abnormal situation, the system will automatically cut off the circuit and alarm to ensure the safety of the experiment.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it on the self-locking chuck
2. Rotation speed and Working time set by LCD screen
3. Select coarse or fine-tuning mode for parameter fine-tuning as needed
4. Start the equipment and start the mixing operation
5. Turn off the device after the experiment is completed
Notice
• Power supply voltage within 100-240VAC range before use
• Ensure that the Ambient Temperature is between 5-40 ° C and the relative humidity does not exceed 80%
• Pay attention to the safety of the chuck protective cover and non-slip pad
• The device will automatically stop when overload or abnormality occurs, please check the cause of the failure
• Select the appropriate Impeller type based on sample viscosity
• Regularly check the operating status of the equipment to ensure that the Safety protection function is normal
