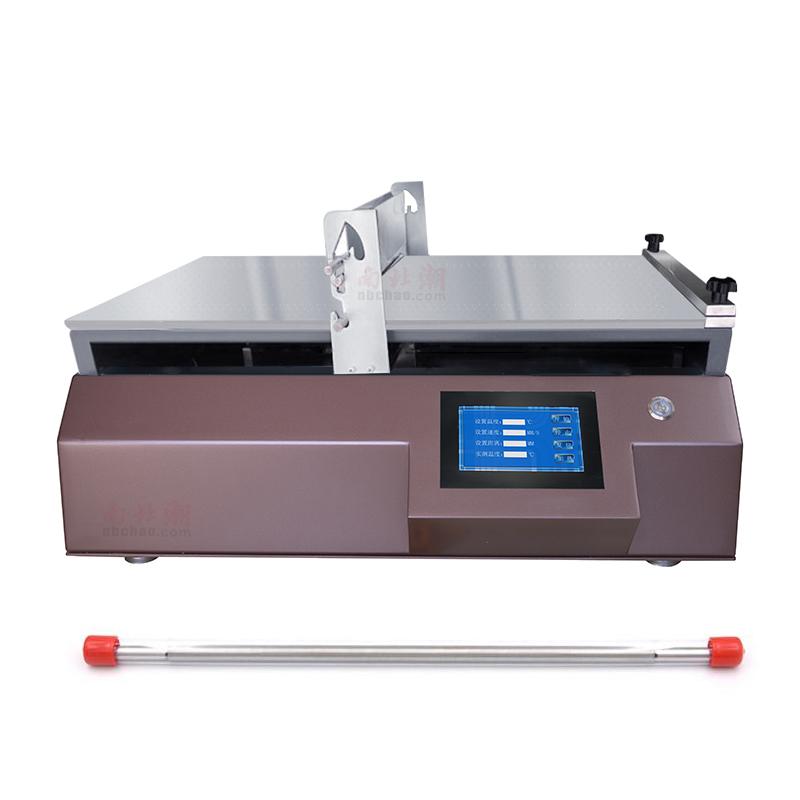

China TBJ-X4-DJ2 Automatic Film Applicator bar Coater Spreader accuracy +/- 0.001mm

Name: China TBJ-X4-DJ2 Automatic Film Applicator bar Coater Spreader accuracy +/- 0.001mm
Brand: zy
SKU: NB039252
Price: 3180.0 USD
Availability: InStock

$ 3180.00Ex works

Spreader speed 5-200mm/s adjustable, Spreader thickness range of 1-571.5μm, equipped with Vacuum chuck system to ensure the substrate flat, heating temperature up to 180 ℃.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB039252

Service :The delivery and service By NBCLab.Com

Overview

TBJ-X4-DJ2 Automatic Film Applicator adopts imported accessories, which is cheap and favored by R & D institutions of multinational enterprises, universities and scientific research institutions at home and abroad. The uniformity and smoothness of Spreader coating are guaranteed by controlling the speed and stable pressure, which solves the problem of inconsistent artificial film and improves the film reproducibility. Standard 1 China bar and 1 imported bar with an accuracy of up to 1μm.

Features

1. Using imported accessories, the price is good and cheap 2. Control the speed and stable pressure to ensure the uniformity and stability of the Spreader 3. Improve film reproducibility and reduce artificial differences 4. Standard High Accuracy bar, Spreader accuracy up to +/- 0.001mm 5. Support a variety of custom functions and Optional accessories

Principle

Automatic Film Applicator Spreaders accurate wet-film on different substrates by controlling the speed of the Spreader and the pressure applied to the Film Applicator. Stability and conformity of the Spreader process are ensured by using the bar coating method combined with Vacuum chuck to fix the substrate.

Applications

Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions

coating method
bar
meyer rod coating thickness Range
1-571.5 μm (Spreader thickness according to bar model)
meyer rod coating accuracy
±0.001mm
coating speed
5-200mm/s (< 5mm/s can be customized)
Coating Size
300 * 400Mm (Miscellaneous Size can be customized)
Spreader distance control
The number can be set arbitrarily within the Range of 1-400mm
Vacuum Area
280 * 440Mm (240 * 400mm without hole in the middle)
Vacuum aperture diameter
Φ1.2mm
Vacuum hole pitch
20*20mm
Substrate clamping method
Vacuum chuck
Control mode
Touchscreen control
Host power supply
220V 50HZ
Dimension
630*410*520mm
weight
65kg
speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Heating Temperature Range
RT+~180℃
Temperature Uniformity
±3℃
Heating mode
Platen Heating
Power
1500W
Vacuum pump Size
380*180*280mm
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
