Overview

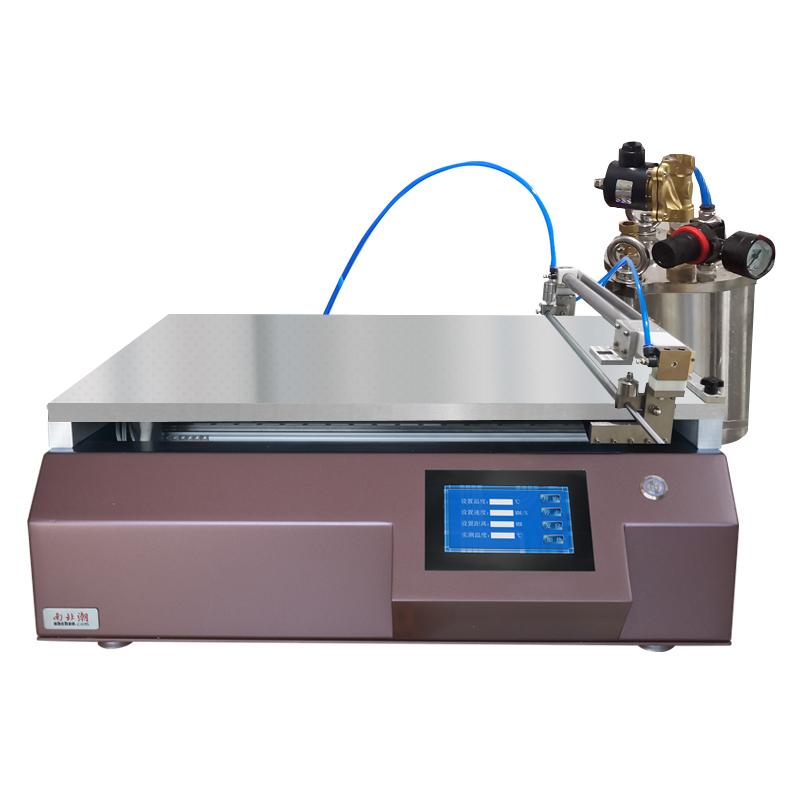

TBJ-X4-DJ3 Automatic Film Applicator is a small experimental Lab Film Applicator, which adopts imported accessories and is inexpensive. It is widely used in R & D institutions, universities and scientific research institutions of multinational enterprises. The equipment ensures the uniformity and smoothness of Spreader's glue application by controlling speed and stable pressure, solves the problem of inconsistent artificial film, improves the reproducibility of film, and can Spreader accurate wet-film on different substrates.
Features
1. Using imported accessories, the price is affordable, and it is favored by many multinational R & D institutions, universities and scientific research institutions.
2. By controlling the speed and stabilizing the pressure, ensure the uniformity and smoothness of the Spreader coating.
3. Improve film reproducibility and solve the problem of artificial film inconsistency.
4. Optional accessories are rich, including automatic lame plating device, UV curing device, etc., support customized functions.
5. Wide coating speed range, support stepless variable speed control, Spreader accuracy is high.
Principle
Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the pressure applied to the Film Applicator. The bar coating method, combined with an automatic feeding system, is fed by the outflow of air source pressure and reciprocating linear motion to ensure the thickness and uniformity of the Spreader. Vacuum chuck fixed substrate, Platen Heating provides temperature control for stable film process.
Applications
Multinational enterprise R & D institutions, universities, scientific research institutions
Steps
1. Prepare the substrate and place it on the Vacuum chuck board for fixing.
2. Select and install the appropriate bar to set the Spreader thickness and speed.
3. Configure the feeding system, adjust the air pressure and discharge port speed to control the discharge volume.
4. Set Spreader Travel, Speed and Miscellaneous parameters via Touchscreen.
5. Start the device for automatic Spreader and monitor the Spreader process.
6. After the Spreader is completed, remove the sample and perform subsequent processing.
Notice
• Make sure the air source pressure is 0.6Mpa before use, and connect the φ 8 trachea.
• The maximum pressure of the Mixing Tank is 8Mpa to avoid overpressure use.
• Customized coating speed below 5mm/s to ensure equipment compatibility.
• Heating Temperature range is RT +~ 180 ℃, Temperature Uniformity is +/- 3 ℃, pay attention to temperature control.
• Regularly check the Vacuum chuck system and Mixing Tank Safety Valve and other accessories to ensure safe operation.
• Accessories such as silicone pad and weight can be selected according to the uneven thickness of the substrate.
