Overview

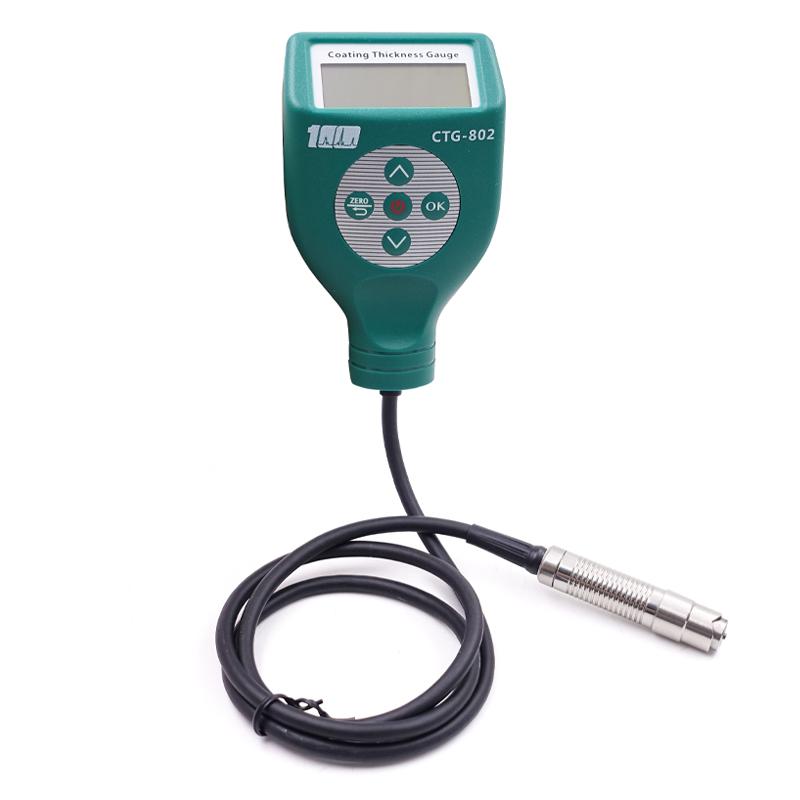

This instrument is a YIBAI brand CTG-802-3000F split iron-based large-range Coating thickness gauge. It adopts magnetic Induction and eddy Current automatic conversion technology to automatically identify the substrate. Measuring method conforms to international standards ISO2178, ISO2360 and national standards GB4956, GB4957, which can quickly, nondestructive and precise platings Film thickness measurement, suitable for laboratories and engineering sites.
Features
1. Using magnetic and eddy current thickness measurement methods, nondestructive measurement of magnetic metal substrate nonmagnetic coating layer and nonconductive coating layer on nonmagnetic metal substrate Film thickness
2. Spring guide sleeve probe equipped with super wear resistant cemented carbide probe, wear resistant more than 500,000 times to ensure measurement Stability
3. Measurement speed up to 0.3 seconds/time
4. High accuracy, Stability, can measure 1-5μm ultra-thin coatings
5. Measurement range, high resolution
6. Measurement accuracy is good
7. Can quickly and automatically identify magnetic and nonmagnetic substrates
8. Integrated structure, small size and light weight
9. Dot matrix backlight display, ignoring differences, suitable for night use
10. Equipped with automatic shutdown function to save power
Principle
This instrument uses magnetic Induction and eddy Current automatic conversion technology, by automatically identifying the type of substrate, using the principle of magnetic Induction on the magnetic metal substrate measurement nonmagnetic film thickness, using the principle of eddy Current measurement nonconductive metal substrate film thickness.
Applications
Manufacturing, metal processing, chemical industry, commodity inspection and other testing fields
Standards
ISO2178、ISO2360、GB4956、GB4957
Steps
1. Install 2 AAA AA AA batteries
2. Connect the split strip probe
3. Measurement mode (single measurement or continuous measurement)
4. Tap the probe on the measured surface for measurement
5. Read the Film thickness value displayed on the LCD dot matrix LCD screen
Notice
* Operating temperature range -10~ 50 ℃
* relative humidity should be less than 80%
* Ensure that the probe is in full contact with the surface for measurement on hard or rough surfaces
The instrument is equipped with an automatic shutdown function to save power
* Pay attention to the minimum curvature radius requirement when measuring
