Overview

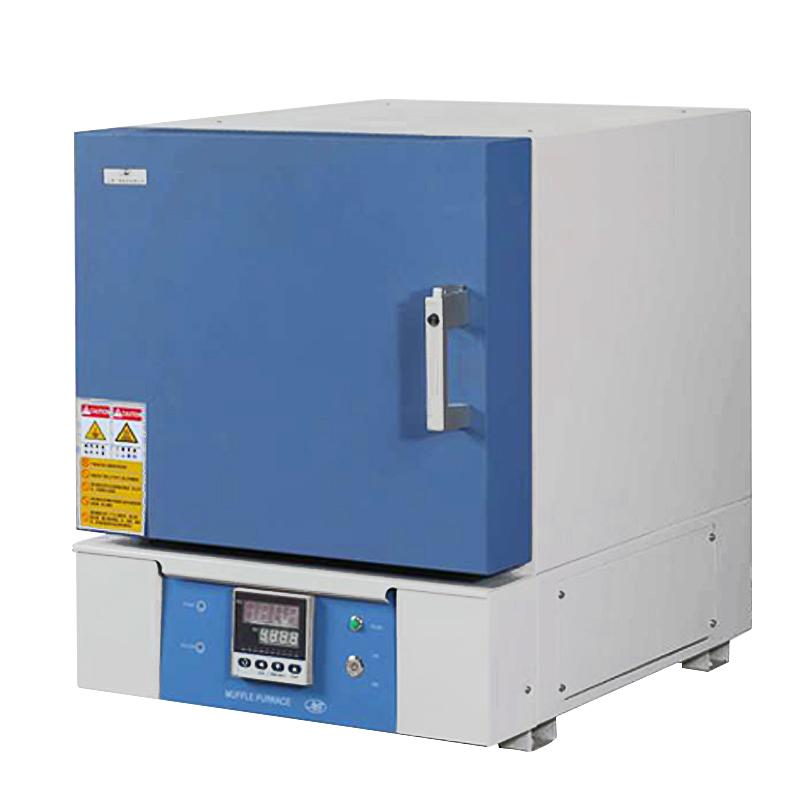

YIHENG SX 2 - 2.5-12 N box muffle furnace is a box type resistance furnace with nickel-chrome wire heating element and refractory brick furnace, which is used for chemical element analysis and high temperature heat treatment or high temperature heating in laboratory. The input Power of this product is 2.5KW, the volume is 2L, and the design temperature can reach 1200 ° C.
Features
1. Adopt microcomputer PID controller, safe, reliable and accurate, simple and convenient operation
2. Adopt high-quality door sealing design to increase Temperature uniformity in the furnace and minimize heat loss
3. Adopting a unique furnace door design, the door opening operation is simple and safe, and the high-temperature hot air in the furnace is not easy to leak out
4. Use corrosion-resistant lightweight refractory brick furnace, durable
Principle
The box muffle furnace generates high temperature through nickel-chromium wire heating elements, and cooperates with the refractory brick furnace to maintain heat. The microcomputer PID controller is used to precisely control the temperature to realize the high temperature heating treatment of the workpiece.
Applications
Universities & colleges, industrial and mining enterprises, R & D institutions for chemical element analysis and small steel parts quenching, annealing, tempering and other high temperature heat treatment; metal, stone, ceramic sintering, dissolving, analysis and other high temperature heating treatment
Steps
Step 1 Power on
2. Set the required temperature parameters
3. Put in the workpiece to be processed
4. Start the heating program
5. Turn off the power after heating
6. Take out the processed workpiece
