Overview

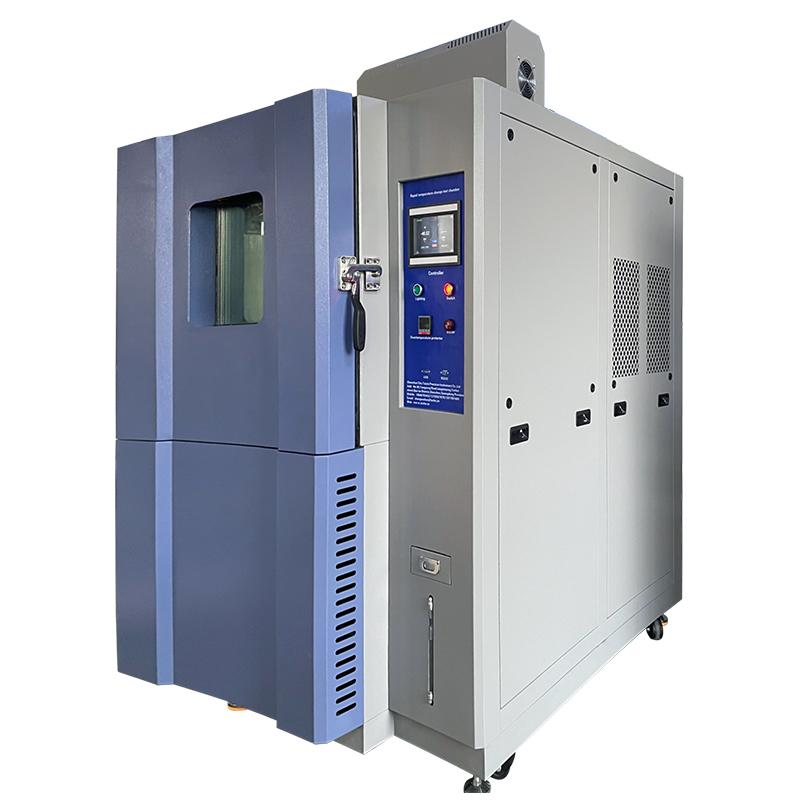

HUDA QD-E708-1000K40-X5 rapid temperature change test chamber is a professional equipment used to determine the adaptability of electronic products, automotive parts, materials, etc. under the conditions of high humidity, low humidity, constant heat and humidity, high and low temperature rapid alternating cycle, surface condensation heat and humidity. The testing machine adopts a reasonable structure and a stable and reliable Control mode, with beautiful appearance, easy operation, safety, high temperature and humidity control accuracy, suitable for rapid temperature change test, constant temperature and humidity test, alternating humidity cabinet test.
Features
1. Adopt multi-channel environmentally friendly and energy-saving mechanical compression refrigeration system, use environmentally friendly materials, two-stage multi-channel main bypass system adaptive selection and activation, energy consumption only accounts for 80% of congeneric products, frequency conversion technology is used to reduce vibration and noise.
2. Self-developed multi-channel multi-stage throttling system, automatically adjusting capillary tubing throttling through intelligent control system to ensure adjustable flow, uniform temperature field and small fluctuation.
3, the application of broadband compression equilibrate temperature control system, through the PID adaptive algorithm to achieve rapid temperature control, the use of temperature chamber and forced air duct system to ensure temperature uniformity.
4. Realize remote visual control, configure human-machine management interface and RS485 communication, support graphical interface, automatic fault prompt, and remote monitoring.
Principle
The equipment automatically adjusts the refrigeration output and flow rate according to the working conditions through a multi-channel mechanical compression refrigeration system and a self-developed multi-stage throttling system to achieve rapid temperature changes. The application of a broadband compression equilibrate temperature control system, combined with a forced air duct system of a temperature reconciliation chamber, a static pressure chamber and a centrifugal fan blade, ensures that hot and cold are fully exchanged and evenly supplied to the studio. The PID adaptive algorithm is used to quickly converge temperature control to reduce overshoot and improve Stability.
Applications
Electronics, automotive parts, materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)、GJB150.9A-2009、G/BT 2423.4-2008/IEC6008-2-30:2005、GB/T5170.18-2005、GB/T10586-2006、GBT 2424.6-2006、GBT 2424.7-2006
Steps
1. Set temperature and humidity parameters and programs through the control panel.
2. Start the device, and the system automatically executes the program to control temperature and humidity changes.
3. Monitor the running status, and view data and fault prompts through the remote interface.
4. Automatically stop or manually stop the device after the program is completed.
Notice
• The installation site needs to be flat and well ventilated, and does not contain flammable and explosive corrosive gases and dust.
• Reserve maintenance space around the equipment: A is not less than 400mm, B is not less than 400mm, and C is not less than 1000mm.
• The water quality of the water supply must meet the second-level water standard of the National Analytical Laboratory, and the solid impurity content is less than 1mg/L.
• Working environment temperature 5~ 30 ℃, humidity ≤ 85% R.H.
• Power supply voltage AC380V three-phase four-wire system, voltage allowable fluctuation range of 10%, frequency 50 +/- 0.5Hz.
• The grounding resistance of the protective ground wire is less than 4Ω.
• Avoid interference from strong electromagnetic radiation sources.
