Overview

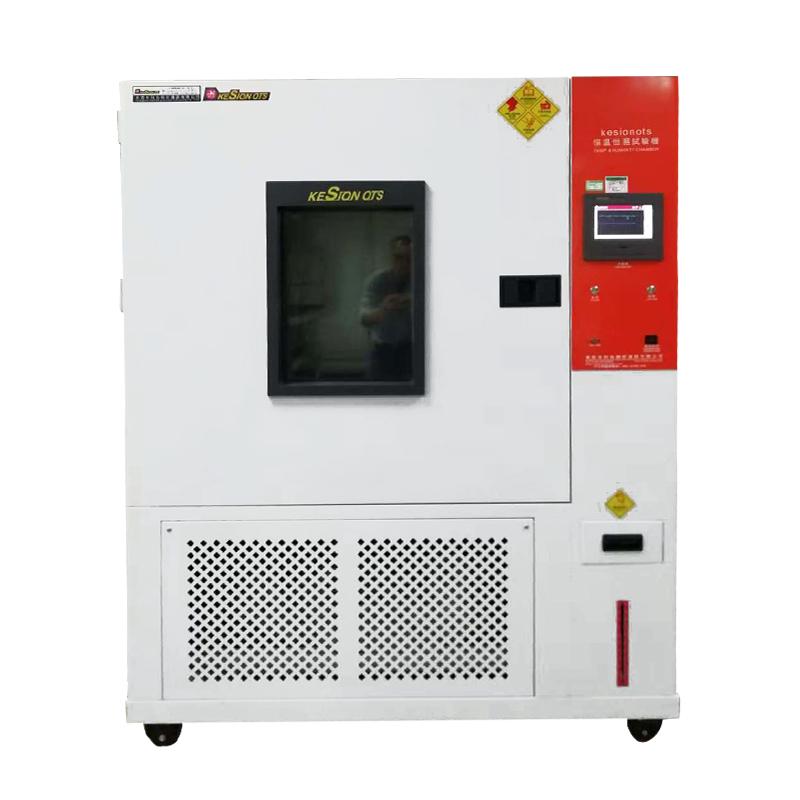

KESIONOTS KS-OTS-HD1000LA low/high temperature test chamber, also known as environmental test chamber, is suitable for high temperature and low temperature Reliability test of industrial products. For electronic and electrical, automobile and motorcycle, aerospace, ship weapons, colleges and universities, R & D institutions and other related products, parts and materials under high temperature, low temperature (alternating) cycle change, inspection of its performance indicators to carry out product design, improvement, identification and inspection, such as aging test.
Features
1. Temperature range: -70~ 150 ℃
2. High temperature resolution accuracy: +/- 0.1 ℃
3. Temperature Uniformity: +/- 1.0 ℃
4. High temperature control accuracy: +/- 1.0 ℃
5. Temperature Fluctuation: +/- 0.5 ℃
6. Fast heating rate: Technologies 4.0 ℃/min
7. Stable cooling rate: Technologies 1.0 ℃/min
8. The studio is made of stainless steel
9. The outer box material is high-grade cold plate nano paint
10. The thermal insulation material adopts high temperature resistant high density chlorine-based formic acid vinegar foam insulator material
11. The refrigeration system adopts air and water-cooled/double-stage Compressor
12. Equipped with perfect protection devices: no fuse switch, Compressor overload protection switch, refrigerant high and low voltage protection switch, ultra-humidity over-temperature protection switch, fuse, fault warning system
Principle
This machine realizes high temperature and low temperature environment simulation through refrigeration system and heating system. In the process of promoting the deterioration of sulfur rubber, the change rate of tensile force and elongation before and after heating is calculated. It is generally believed that one day of testing at 70 ° C is theoretically equivalent to 6 months of exposure to the atmosphere.
Applications
Electronics and electricians, automobiles and motorcycles, aerospace, ships and weapons, colleges and universities, R & D institutions
Standards
GB10592-89、GB2423.1、GB2423.2、GJB150.3、GJB150.4、IEC、MIL
Notice
• Power supply voltage requirements: 1 220VAC +/- 10% 50/60Hz & 3 380VAC +/- 10% 50/60Hz
Equipped with a variety of protective devices to ensure safe use
• Studio volume is 1000L, Dimension is 1500 * 1860 * 1570mm, need to ensure sufficient installation space
