Overview

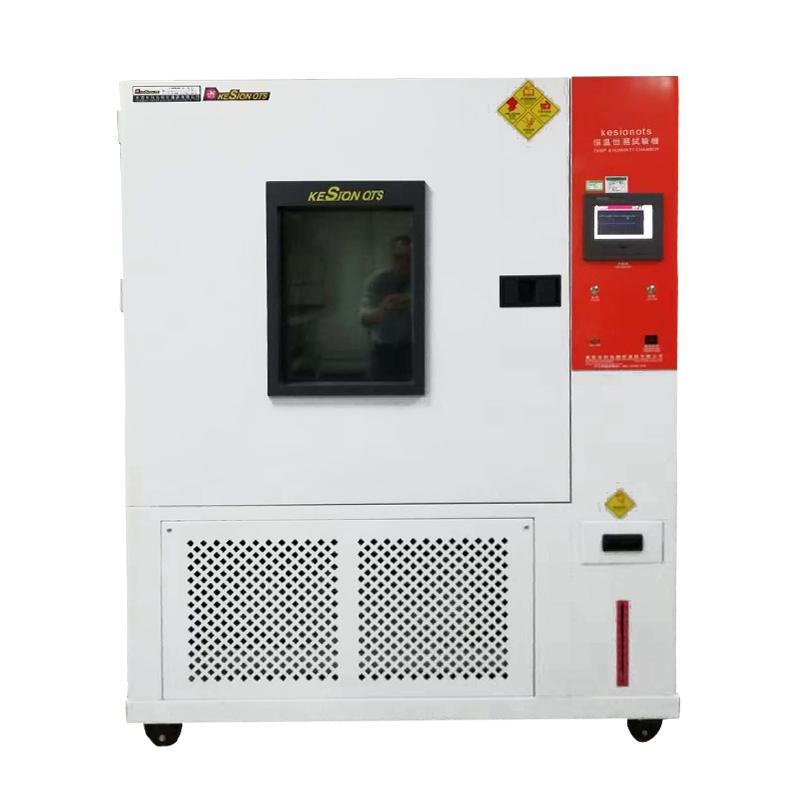

KESIONOTS KS-OTS-HD150LC low/high temperature test chamber, also known as environmental test chamber, is suitable for high temperature and low temperature Reliability test of industrial products. The equipment is used for parts and materials of electronic and electrical, automobile and motorcycle, aerospace, ship weapons, colleges and universities, R & D institutions and other related products under the condition of high temperature and low temperature (alternating) cycle changes, inspection of its performance indicators to carry out product design, improvement, identification and inspection, such as aging test.
Features
1. With a wide temperature control range (-40~ 150 ° C)
2. Using stainless steel studio material and high-grade cold plate nano paint outer box
3. Equipped with high temperature resistant high density chlorine-based formic acid vinegar foam insulation material
4. Optional air and water-cooled/dual-stage Compressor refrigeration system
5. Configure multiple protection devices including no fuse switch, Compressor overload protection switch, etc
6. Adopt Korean or Japanese "OYO" brand controller system
7. Use the French "Taikang" brand or the German "BITZER" refrigeration system
Principle
This machine realizes high temperature and low temperature environment simulation through accurate temperature control system, and calculates the rate of change of tensile force and elongation before and after heating in the process of promoting the deterioration of sulfur rubber. Test at 70 ° C for one day, theoretically equivalent to 6 months of exposure to the atmosphere, to complete the product aging test.
Applications
Electronics and electricians, automobiles and motorcycles, aerospace, ships and weapons, colleges and universities, R & D institutions
Standards
GB10592-89、GB2423.1、GB2423.2、GJB150.3、GJB150.4、IEC、MIL
Steps
1. Carry out low temperature and high temperature tests according to GB 2423.1, GB 2423.2 standards
2. Conduct a constant temperature test
3. Set the required temperature parameters through the controller system
4. Start the device for testing
5. Monitor and record test data
Notice
• Power supply voltage check before use (1 220VAC +/- 10% 50/60Hz & 3 380VAC +/- 10% 50/60Hz)
• Regularly check whether the protective device is working properly
• Pay attention to the temperature fluctuation range when the equipment is running
• Keep equipment well ventilated
• Maintain according to the instructions
