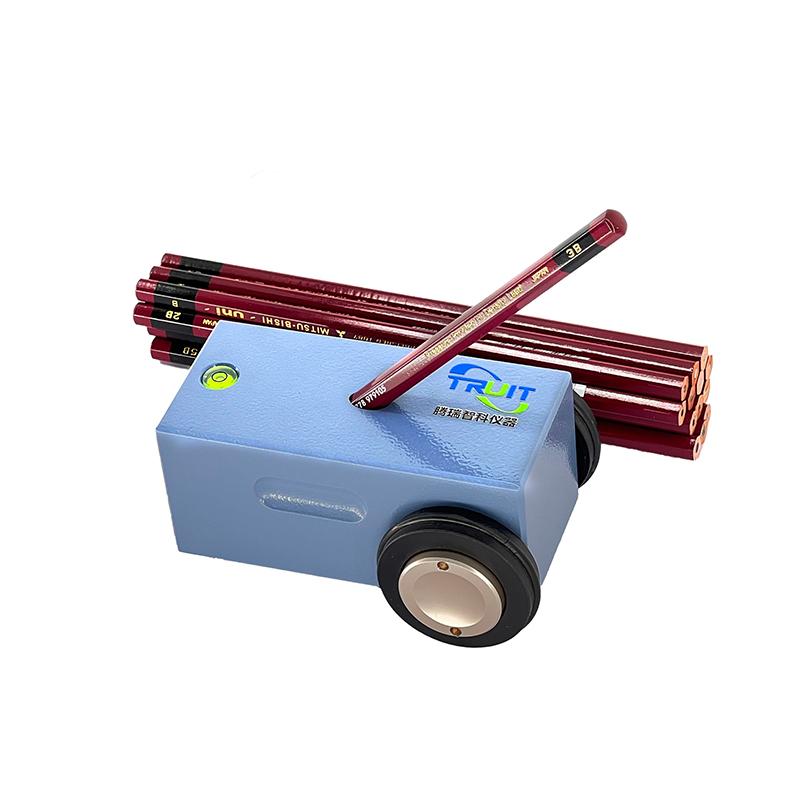

TRUIT TR 5100/3 Pencil Hardness Tester with level, ergonomic design 1000g load

Name: TRUIT TR 5100/3 Pencil Hardness Tester with level, ergonomic design 1000g load
Brand: TRUIT
SKU: NB043299
Price: 186.0 USD
Availability: InStock

$ 186.00Ex works

It adopts three-point horizontal adjustment and calibration integrated design, and is equipped with observation level to ensure test accuracy. Load 1000g, test angle 45 °, ergonomic grip design improves operation Stability, and pencil locking and disassembly are convenient.

Model

Get Quote

Category : Pencil Hardness Tester

Brand : TRUIT

SKU : NB043299

Service :The delivery and service By NBCLab.Com

Overview

The TR 5100/3 Pencil hardness tester is a test instrument of the TRUIT brand. Hardness is represented by scratching the drying film with a pencil with a specific Hardness label, and the hardest pencil label that does not cause film damage. The instrument comes with an observation level to ensure accurate leveling during the test process and provide reliable test results. The ergonomic design is adopted, and the design on both sides meets the comfort of manual holding, making the operation easy and convenient. At the same time, the center of the wheels on both sides adopts an arc design to increase the operation Stability and equilibrate, making the test process smoother.

Features

1. Three-point horizontal adjustment and calibration as one design 2. The instrument comes with an observation level 3. Ergonomic design on both sides, easy to take, not easy to slide 4. The circular arc design of the center of the wheels on both sides is better controlled during the grip and push test 5. The pencil is easy to lock/disassemble

Principle

Pencil hardness tester by scratching a pencil with a certain Hardness label on the film after drying, the hardest pencil label that does not cause film damage is used to represent film Hardness.

Standards

GB/T 6739、ASTM D 3363、ISO 15184

Steps

1. Use the instrument's own observation level to ensure the test level 2. Replace and fix the pencil through the pencil lock/remove function 3. Hold both sides of the instrument and use ergonomic design to pick and operate 4. Scratch test at 45 ° angle and 1mm/s on film 5. Observe and record the hardest pencil mark that does not cause film damage

load
1000g
Standard pencil
1 set of pencils (13 pcs in Total for 6B-6H)
The angle between the pencil and the measured surface
45°
Scratch speed
1mm/s

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
