Overview

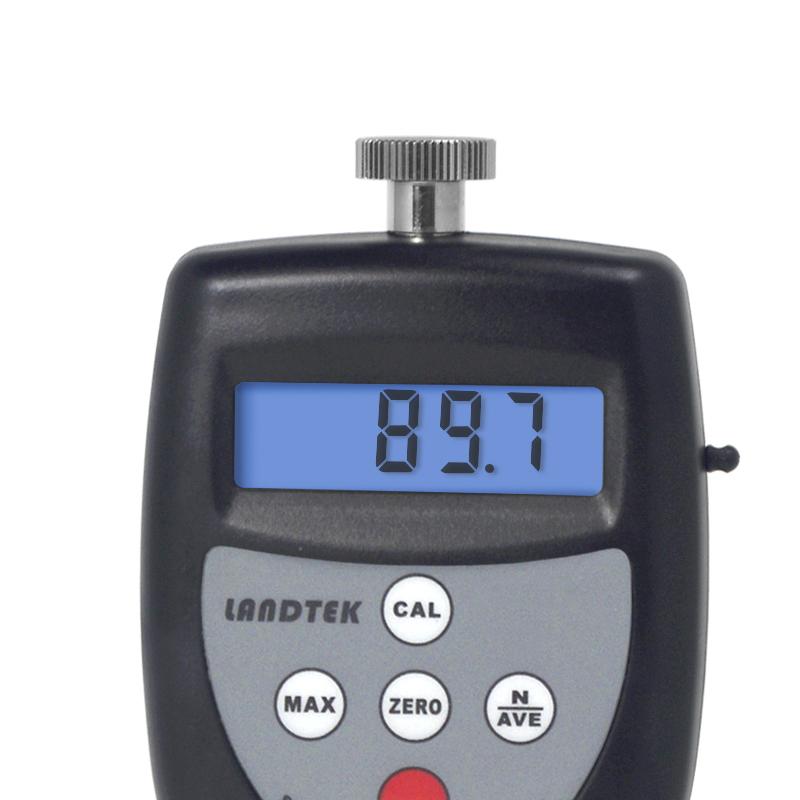

The LANDTEK HT6510OO Shore Shore Durometer is a portable hardness testing instrument that meets a number of international and national standards for the measurement of Hardness in materials such as very soft plastics, plastics, thermal plasticity plastics, sponges, foams, low density Spinning & weaving spindles, and human and animal tissues. The device features High Accuracy, versatile display, and multiple data output methods for easy field and laboratory use.
Features
Complies with a number of international and domestic standards, including GB/T 531-1999, GB/T 2411-80, DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
2. With average calculation function, the average value of multiple measurements can be automatically calculated.
3. Provide MAX Maximum latch function for easy recording of peak Hardness values.
4. It has the function of under-voltage alarm indication, and timely prompts that the battery power is insufficient.
5. Support USB data cable output and RS-232 data cable output for easy communication with PC.
6. Optional Bluetooth data output to achieve wireless data transmission.
7. High Accuracy measurement, Accuracy ≤ +/- 1H, resolution 0.1H.
8. Automatic shutdown function saves power.
9. Portable design, light weight (170g without battery), small size (162mm * 65mm * 28mm).
Principle
Based on the press-in Hardness test method, Shore Durometer measures the press-in depth and converts it to a Hardness value by pressing a pin (head size R1.2 hemisphere) into the material surface at standard pressure. The device uses an electronic Sensor and a microprocessor to automatically calculate and display Hardness values, averages and MAX Maximum, and supports a variety of Hardness units (such as HA, HB, HC, etc.) to ensure accurate and reliable measurement.
Applications
Very soft plastics, plastics and thermal plasticity plastics, sponges, foams, low density Spinning & weaving spindles, human and animal tissues
Standards
GB/T 531-1999、GB/T 2411-80、DIN 53505、ISO 868、ISO 7619、ASTMD 2240、JISK7215
Steps
1. Install 4 * 7 batteries to ensure sufficient power supply.
2. Turn on the power supply of the device and check whether the low voltage prompt function is normal.
3. Select the appropriate Measurement unit (such as HA, HB, etc.).
4. Press the needle vertically into the surface of the tested material to maintain stability.
5. Read the displayed Hardness value and record the data using the Average or MAX Maximum function.
6. Connect to PC via USB, RS-232 or Bluetooth to transfer measurement data.
7. Turn off the power after use or wait for automatic shutdown.
Notice
• Ensure that the working environment temperature is between 0 and 50 ° C and the humidity is below 80% RH to avoid measurement errors.
• Regularly check the battery power to avoid undervoltage affecting Measurement accuracy.

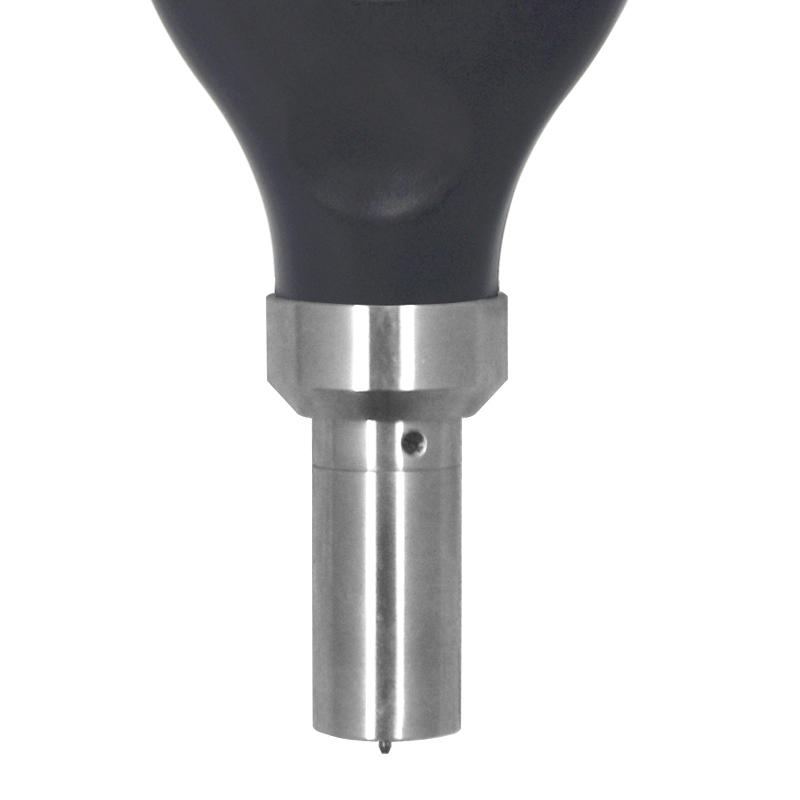

• The needle head is R1.2 hemispherical to avoid collision or damage during use.
• Keep the stylus vertically pressed during measurement to ensure data accuracy.
• Only suitable for materials with a Hardness value of less than 20O, exceeding the range may cause damage to the equipment.
• Avoid long-term use in humid or corrosive environments to prolong equipment life.
When transferring data, ensure a stable connection to prevent data loss.
