Overview

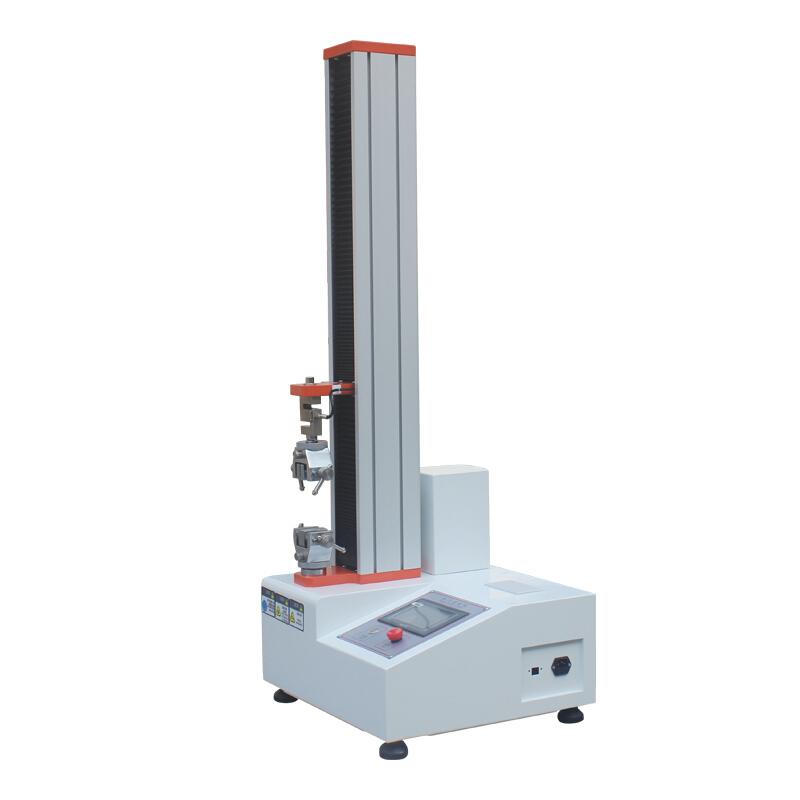

Touch screen single column tensile strength tester is a device suitable for tensile strength, Peel Strength, deformation rate, breaking force, disbonding force, opening force and other performance tests of Plastic film, Composite film, Adhesive, Adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products. LCD touch screen control, stable and accurate operation, simple and efficient operation.
Features
1. Stable and accurate operation
2. Easy to operate and efficient
3. LCD touch screen control
4. Can print data directly
5. Upper and lower limit protection switches, overload protection
6. The control system adopts the AC motor with full digital control frequency to ensure the high efficiency of the transmission system, the smooth transmission, the low noise and the speed accuracy can be controlled within 0.5%
7. The machine structure adopts the aluminum extrusion seal plate treated with paint, which has built-in High Accuracy, Low Resistance, No Gap Double Roller Screw and Guide Column, which improves the load efficiency and structural rigidity
8. Stable and reliable product performance, high measurement accuracy, powerful test software, easy to understand
Principle
The testing machine is driven by a variable speed motor and adopts a fully digital AC motor to control the frequency to ensure the efficient and stable transmission system. The machine structure has built-in High Accuracy double roller screw and guide column, which improves the load efficiency and structural rigidity, and realizes accurate tensile force, strength and other performance tests.
Applications
Adhesive Tape, Automotive, Pottery and porcelain, Composites, Construction, Food Equipment, Metal, Paper, Encasement, Rubber, Spinning & weaving, Wood, Communication and Various Shaped Materials
Steps
1. Select the appropriate fixture according to the product type. If you need to customize, please contact customer service.
2. Set test parameters, such as force units, stress units, test speeds, etc
3. Install the specimen in the fixture
4. Start the test, control and observe the Linear dispersion diagram through the LCD touch screen
5. After the test is completed, the average value of the data is automatically calculated, and the results can be printed
6. End the test according to the shutdown mode (e.g. upper and lower limit safety settings or specimen breakpoint sensing)
Notice
* The standard test fixture is a strong clamp fixture, which can only withstand 200KG. More than 500KG (inclusive) needs to be reinforced to 300~ 400KG. Please customize the fixture according to product requirements
* Linear dispersion cannot be printed by the printer because the Linear dispersion is large
* Capacity below 500KG (inclusive) using variable frequency motor, 1~ 30 tons using servo motor, choose to pay attention to Precision and power requirements
* Power supply voltage is 1PH, AC220V, 50/60Hz to avoid overload
Check whether the upper and lower limit protection switches and overload protection functions are normal before the test
