Overview

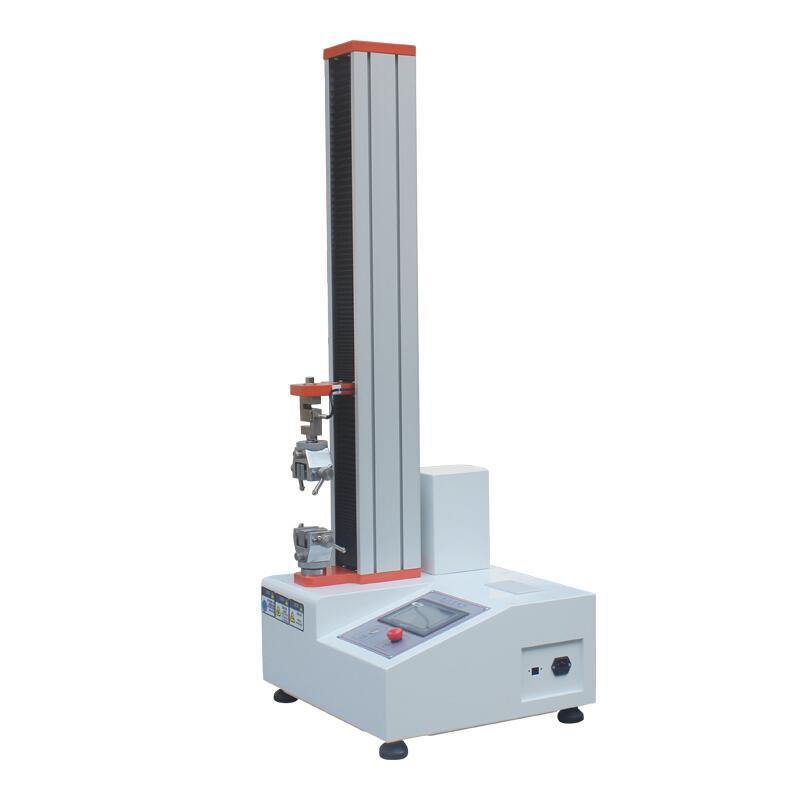

Universal Testing Machine is an instrument for measuring the mechanical properties of materials such as tensile, disbonding, compression, yield, bending, and fracture. It is widely used in materials science, engineering, and quality control and mass assurance processes. It consists of a load unit, a sample holder, a displacement measurement device, a control system, and a data collection system to precisely control the load applied to the sample and record data on the mechanical properties during testing.
Features
1. Tensile, compression, bending, disbonding, fatigue and Impact tests
2. Measurement accuracy up to +/- 1%, resolution 1/200000
3. Test speed range 0~ 300mm/min, effective stroke 600mm
4. Support multiple force value units and stress unit conversion
5. Equipped with micro-printers and computer software for easy data output and analysis
6. Adopt a speed-regulating motor as the power system, providing stable and reliable operation
Principle
Universal Testing Machine precisely controls the load applied to the sample through the control system, using the load unit, sample holder and displacement measurement equipment to work together to collect mechanical properties data in real time during the test process, and record and analyze the test results through the data collection system.
Applications
Adhesive Tape, Automotive, Pottery and porcelain, Composites, Construction, Food Equipment, Metal, Paper, Encasement, Rubber, Spinning & weaving, Wood, Communication and Various Shaped Materials
Steps
1. Select the appropriate fixture according to the testing requirements
2. Install the specimen into the fixture and fix it
3. Set test parameters, including speed, force value units, etc
4. Start the test and the device automatically applies the load
5. After the test is completed, the device automatically stops and records data
6. Output test results through printer or software
Notice
• Power supply voltage meets requirements before use (1PH, AC220V, 50/60Hz)
• Check whether the fixture is firmly fixed before testing
• Must not exceed the maximum capacity of the equipment 100Kg
• Regularly calibrate equipment to ensure Measurement accuracy
• Keep the equipment clean and avoid use in humid environments
• Pay attention to safety during operation and avoid hands close to moving parts
