Overview

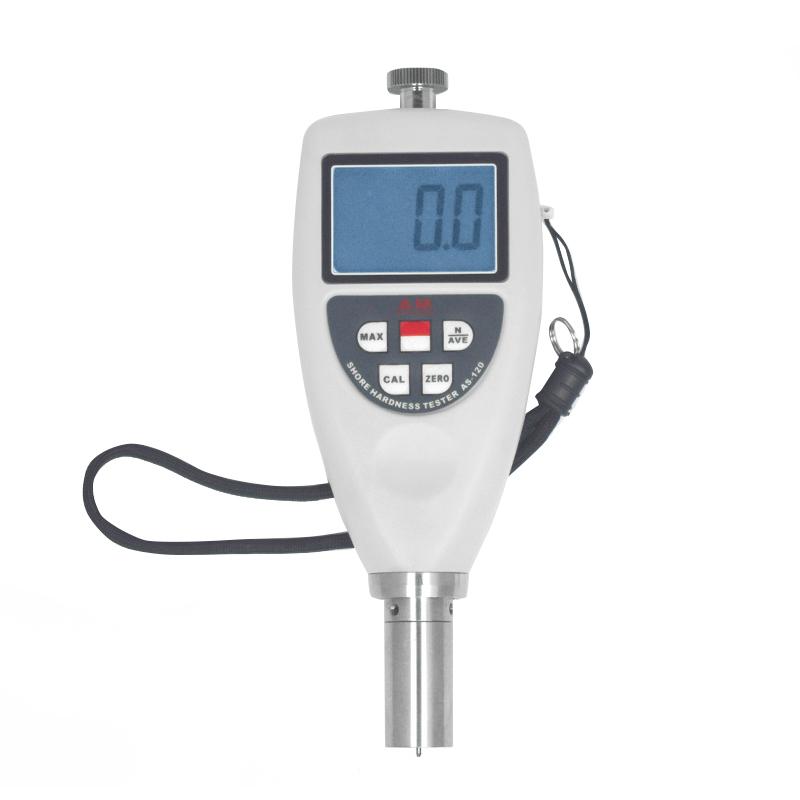

The AMITTARI AS-120C Shore Shore Durometer is one of the AS-120 series, which is mainly used to determine the Cedar Hardness of materials. The series offers eight different models, corresponding to different measurement probes, measurable objects and Hardness ranges, to meet the diverse Hardness measurement needs of users.
Features
1. Integrated design, small size and light weight.
2. With MAX Maximum latch, under-voltage alarm indication function, automatic shutdown and manual shutdown function.
3. Use USB data cable output to communicate with PC.
4. Provide Bluetooth data output selection.
5. When the battery voltage is lower than the specified value, it is automatically indicated.
6. Numbers show, ignoring the difference.
7. Metric/imperial unit conversion, with average calculation function.
8. Automatic shutdown and manual shutdown.
9. Using computer technology, digital filtering technology and other professional technologies, the material thickness can be accurately measured.
10. Using the optional RS232C software and cable, it can communicate with a PC computer for data acquisition, processing, analysis, and printing.
Principle
The Shore Shore Durometer is pressed into the surface of the material to be measured by pressing the needle head (AS-120C model 0.79 truncated cone). Digital filtering technology and computer technology are used to process the data to ensure the measurement accuracy.
Applications
Medium Hardness Rubber, Medium Hardness Plastic, Thermal plasticity Plastic, Thermal plasticity resilience
Standards
GB/T 531-1999、GB/T 2411-80、DIN53505、ISO868、ISO7619、ASTMD2240、JIS K7215
Steps
1. Turn on the power of the device.
2. Select Measurement mode (e.g. MAX Maximum Latch, Average Calculation, etc.).
3. Press the crimp head vertically into the surface of the tested material.
4. Read the Hardness Value, Average or MAX Maximum on the LCD display.
5. Use USB, Bluetooth or RS232C to connect to the PC for data transfer (optional).
6. Manual shutdown or wait for automatic shutdown after measurement is completed.
Notice
* Ambient Temperature should be kept at 0~ 40 ℃.
* Environmental humidity should be less than 90% RH.
* Use 2 * 1.5V AAA No. 7 battery power supply, pay attention to the undervoltage alarm indication.
* Make sure that the needle head is in vertical contact with the surface of the measured material during measurement.
* Optional accessories include standard Hardness chip, USB data cable, RS232C data cable and Bluetooth module.
