Overview

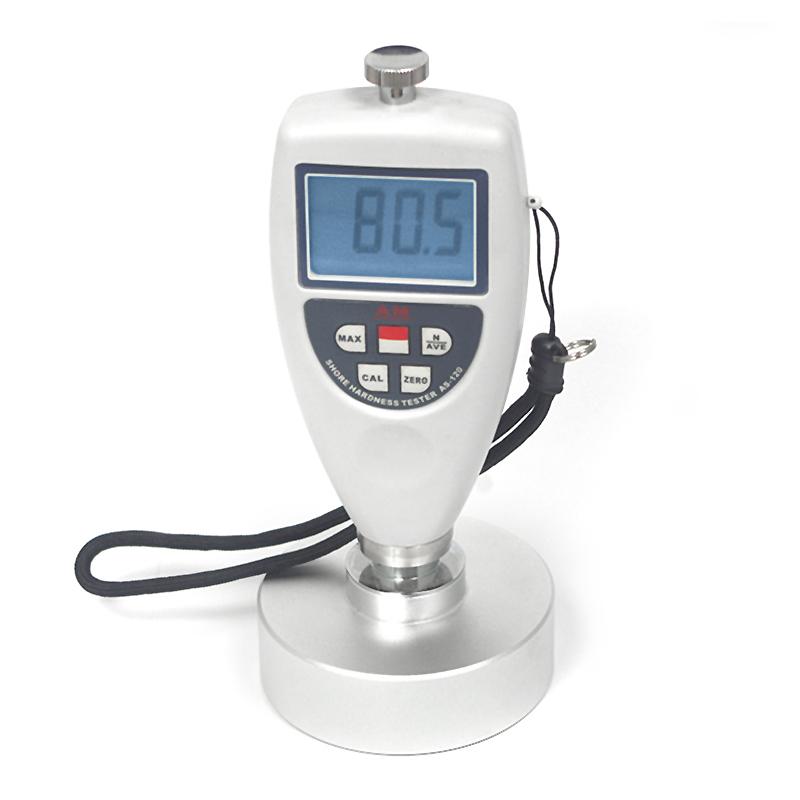

The AMITTARI AS-120E Shore Shore Durometer is one of the AS-120 series, which is mainly used to measure the Cedar Hardness of materials. The series is available in eight models, equipped with different measurement probes, which can measure different objects and Hardness values to meet the diverse Hardness measurement needs of users.
Features
1. Integrated design, small size and light weight
2. With MAX Maximum latch, undervoltage alarm indication function, automatic shutdown and manual shutdown function
3. Use USB data cable output to communicate with PC
4. Provide Bluetooth data output selection
5. When the battery voltage is lower than the specified value, it automatically indicates
6. Numbers are displayed, ignoring the difference
7. Metric/imperial unit conversion, with average calculation function
8. Automatic shutdown and manual shutdown
9. Using computer technology, digital filtering technology and other professional technologies, can accurately measure the thickness of the material
10. Utilize optional RS232C software and cables to communicate with PC computers for data acquisition, processing, analysis, and printing
Principle
The AMITTARI AS-120E Shore Shore Durometer applies pressure to the material through the pinhead to measure Clearance Hardness. Digital display and a number of specialized technologies, including computer technology and digital filtering technology, ensure measurement accuracy.
Applications
Hard sponge, EVA
Standards
GB/T 531-1999 "Rubber pocket hardness gauge press-in Hardness test method", GB/T 2411-80 "Plastic Shore Hardness test method", DIN53505, ISO868, ISO7619, ASTMD2240, JIS K7215
Notice
* Ambient Temperature 0~ 40 ℃
* Environmental humidity < 90% RH
When the battery voltage is lower than the specified value, the device will automatically indicate

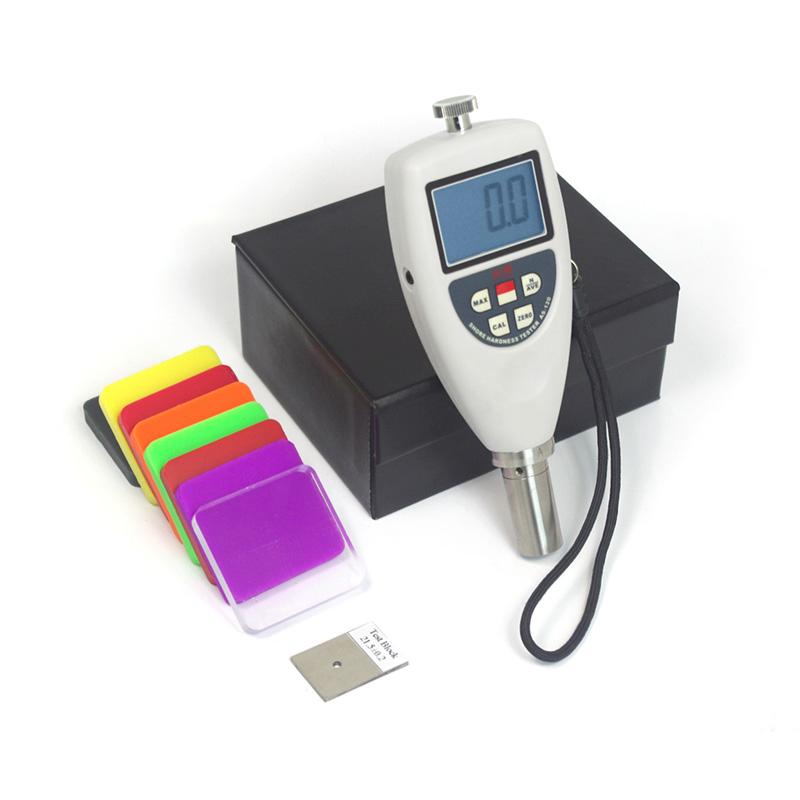

* Optional accessories such as standard Hardness chip, USB data cable output, RS232C data cable output, Bluetooth Bluetooth data output, please follow the instructions
