Overview

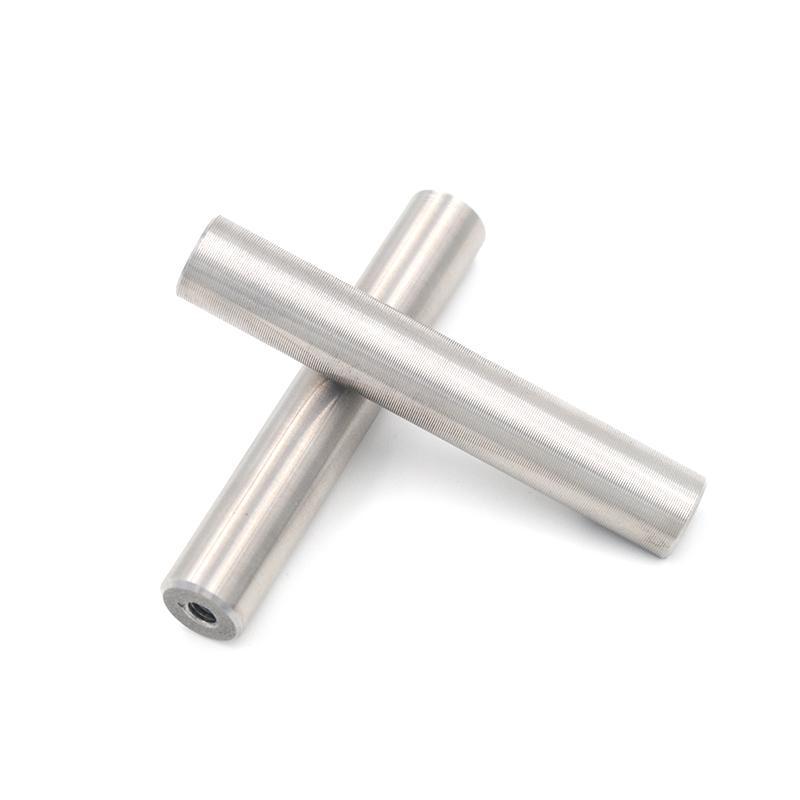

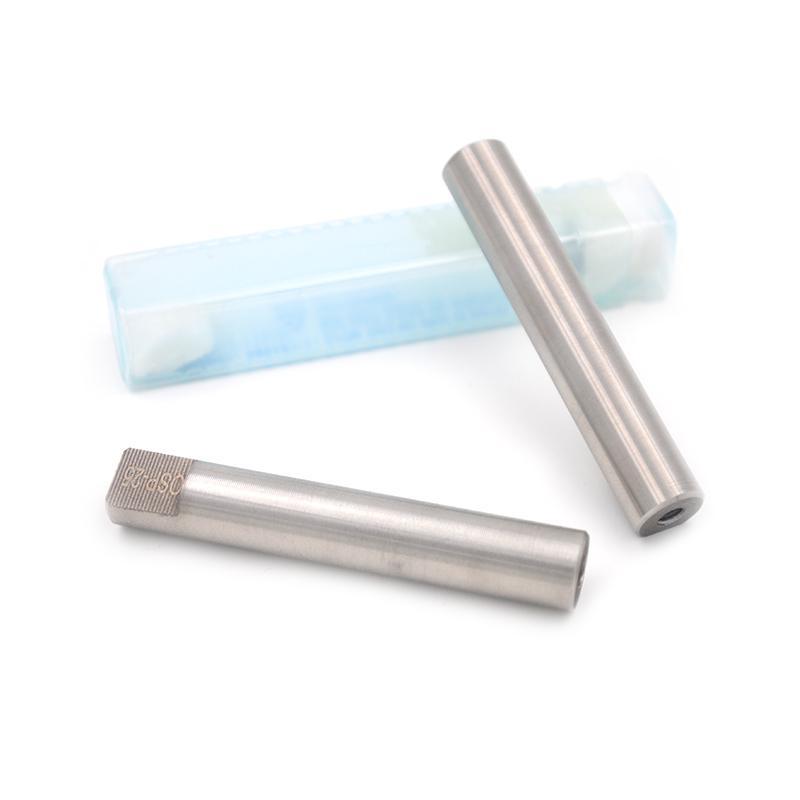

OSP-200T L60 coating rod is a Japanese OSP brand inks Applicator rod. It adopts a formed production process. The wet film thickness is 200μm, the diameter is 10mm, the total length is 60mm, the application width is 60mm, and the material is 304 stainless steel. The bottom of this model has a K shape with large tooth spacing. It is suitable for high viscosity Coatings and has good leveling.
Features
1. The bottom of the cogging is K-shaped, with large tooth spacing, suitable for high viscosity Coating
2. leveling well, Spreader evenly
3. Made of 304 stainless steel, with strong durability
4. The application width is 60mm, suitable for fine Spreaders

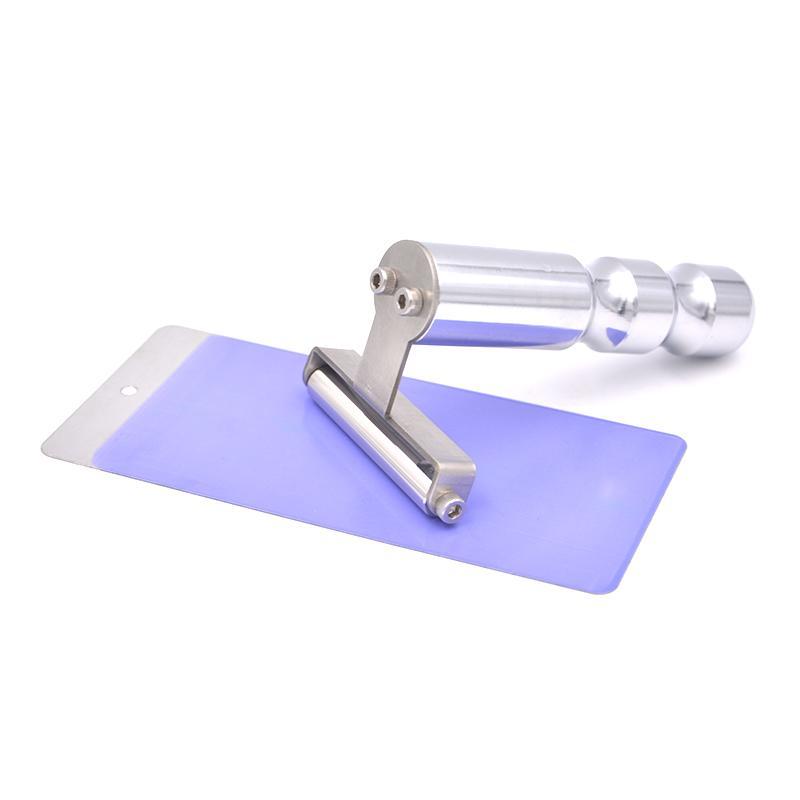

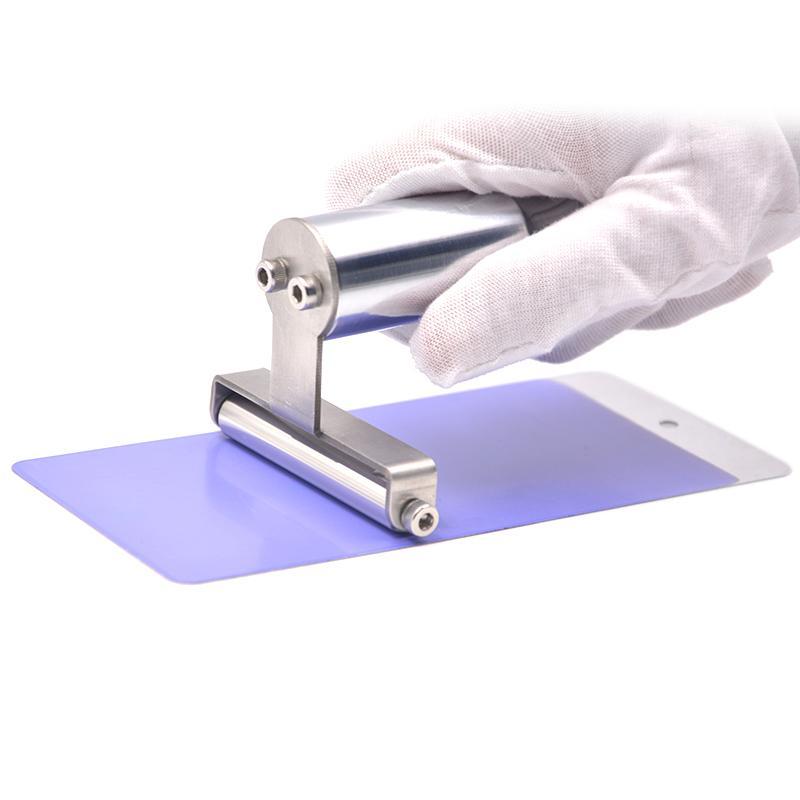

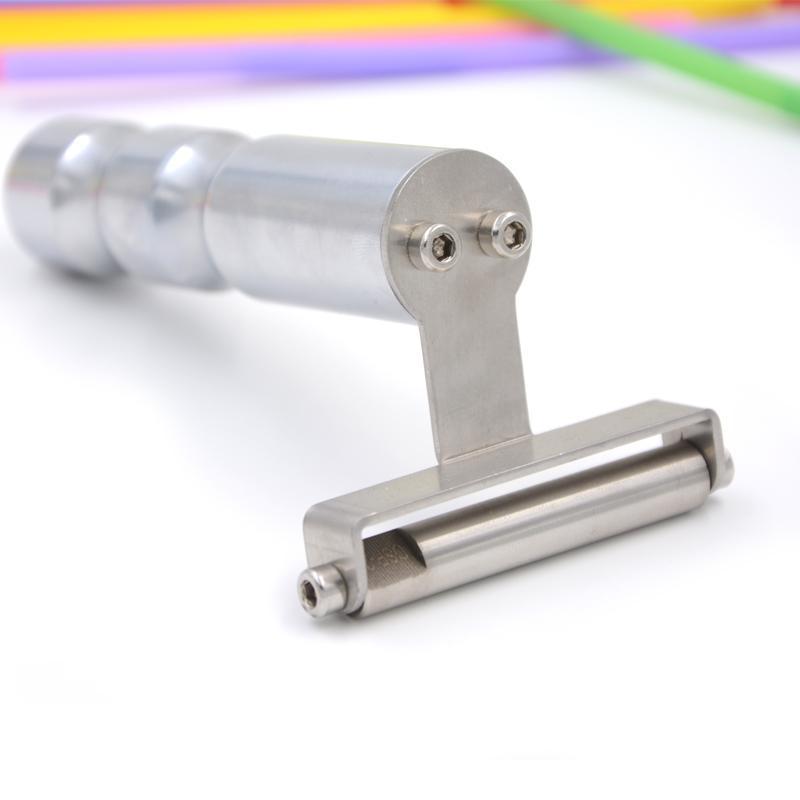

5. It needs to be used with a handle, and the operation is easy.
Principle
The coating rod is manufactured by a formed production process. When used, it is matched with the handle to uniformly Spreader the high viscosity Coating on the surface of the substrate. The K-shaped cogging design increases the tooth spacing, which facilitates the flow and levelling of the high viscosity Coating and ensures the uniform thickness of the Spreader.
Applications
Silk, non-woven fabric
Steps
1. Prepare coating rod and install handle
2. Place High Viscosity Coatings in the Spreader Area
3. Coating evenly with coating rod
4. Check Spreader Thickness and Uniformity
5. Clean coating rod for next use
Notice

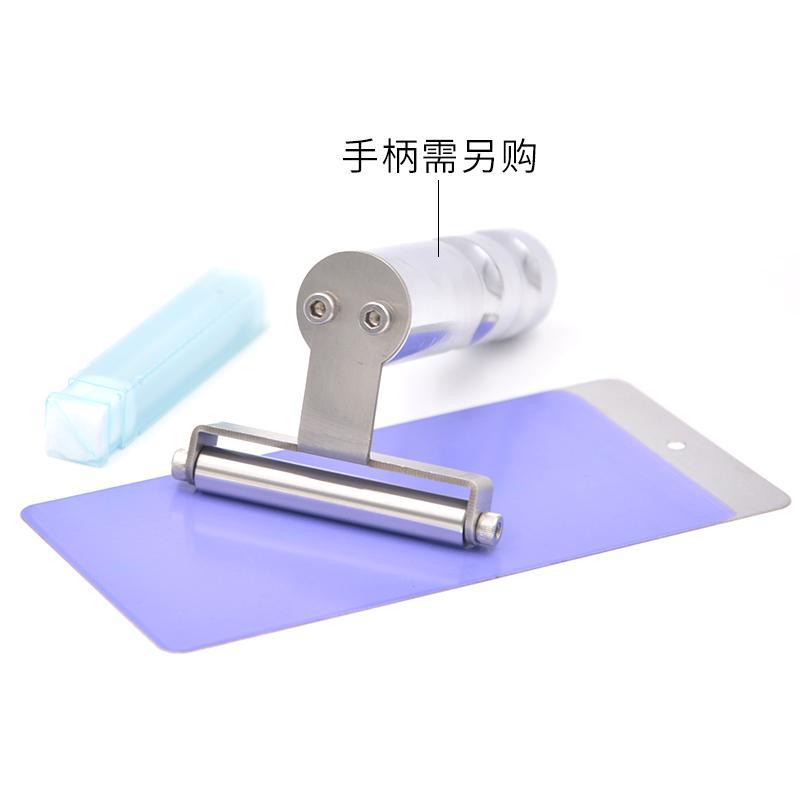

• The coating rod needs to be equipped with a handle to ensure stable operation
• Suitable for High Viscosity Coatings, such as Glue, Avoid Low Viscosity Materials
• Clean immediately after use to prevent Coating residues from affecting performance
• Pay attention to Spreader thickness control to avoid excessive Spreader
• Avoid collisions during storage and keep the cogging intact
