Overview

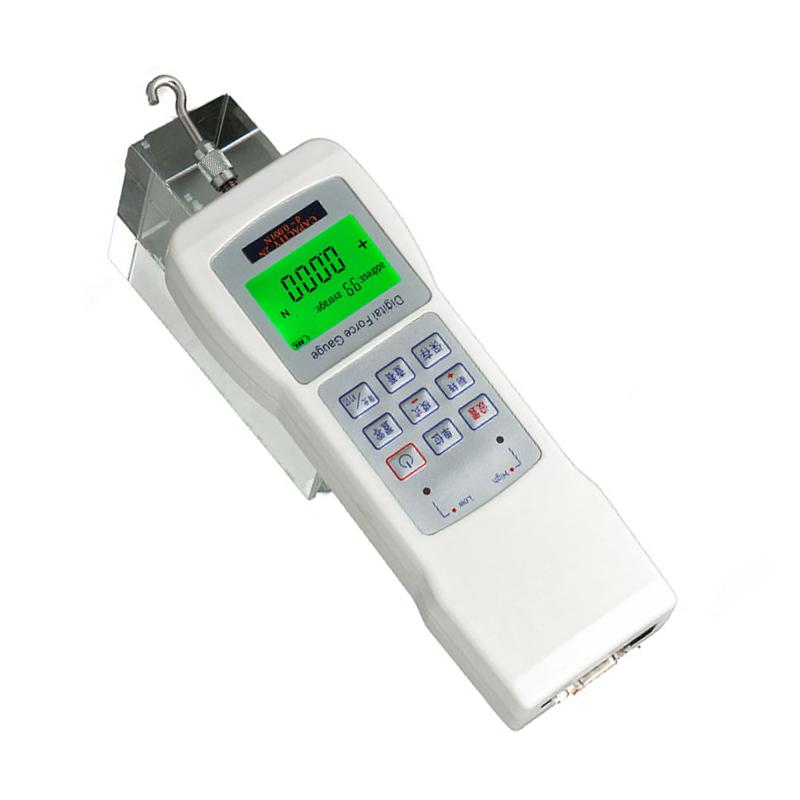

Hypertherm Handheld Force Gauge HG-20 is a digital display Force Gauge with a maximum load Measured value of 20N and a load Graduation of 0.01N. It uses a segment LCD screen and has a backlight function, which is suitable for push-pull load testing, plug-and-pull force testing and failure testing of various products. It can be combined with different machines or fixtures to form small experimental machines with different purposes, which realizes convenient measurement and powerful functions.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ
2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The HG-20 handheld Force Gauge detects push and pull forces through built-in or external Sensors, converts the force value into an electrical signal, and displays it digitally on the segment LCD screen after conversion by ADC. It supports a variety of test modes, such as real-time tracking and peak hold, and can be combined with upper and lower limit setting and alarm functions for data judgment. With the electric testing device, advanced functions such as stop-if-break, reset and fatigue test can be realized.
Applications
Push-pull load test, insertion force test, failure test
Steps
1. Connecting contacts Connecting rods or clamps
2. Turn on the power and check the battery level.
3. Select the desired unit (e.g. N, Kgf, etc.)
4. Set the test mode (real-time force tracking, peak hold, or first peak mode)
5. Set the upper and lower limit comparison value, peak holding time, gravitational acceleration or automatic shutdown time as needed
6. Perform a push-pull force test and observe the display reading
7. Use the storage function to record data
8. After the test is completed, the data can be exported or reports can be generated through the Communication interface
Notice
• When the battery level shows very small, charge it in time to avoid automatic shutdown.
• Ensure that there is no vibration and corrosion medium around the working environment
• Operating temperature is 0~ 40 ℃, storage temperature is -20~ 70 ℃, relative humidity is 15%~ 80% RH
• Check that Sensors and Connections are in good condition before use
• Avoid over-range use to prevent damage to the instrument
