Overview

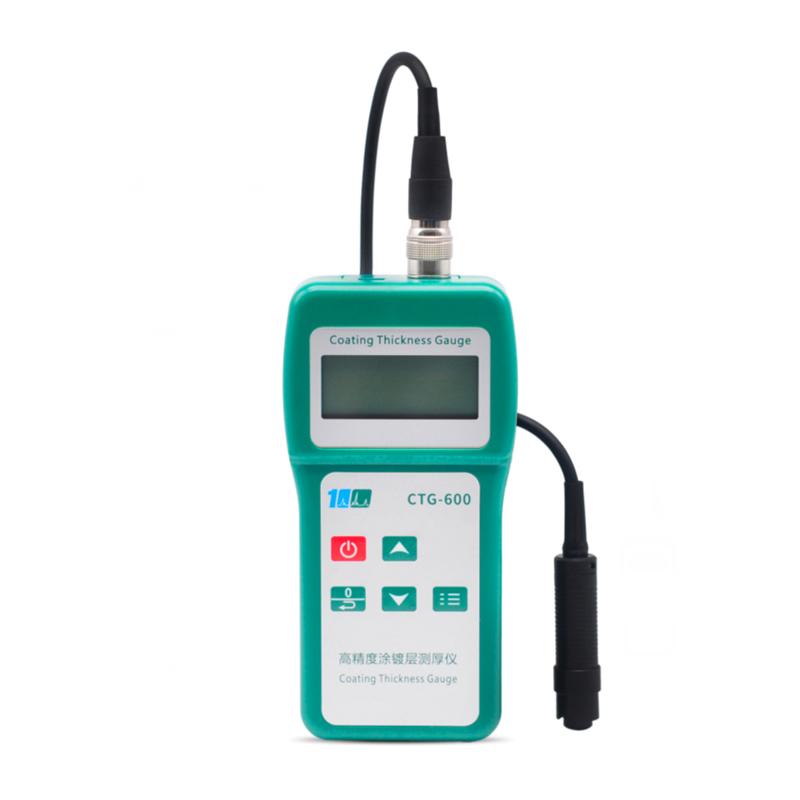

YIBAI CTG-600FN3 split Coating thickness gauge has the functions of backlight, large screen digital display, single point and multi-point calibrating, etc., and this product is resistant to high and low temperature, anti-drop, Probe wear resistance (more than 500,000 times), good test Stability, Test speed, suitable for various measurement environments. Its technical parameters are completely national and international standards. Fe function can detect the nonmagnetic Coating thickness on all magnetic substrates, such as paint coated on steel and iron, powder coating, plastic, porcelain, chromium, copper, zinc, etc. Coating thickness on all nonmagnetic substrates, such as lacquers, plastics, porcelain, etc. These coatings must be applied to nonmagnetic metal substrates such as aluminum, copper, brass or stainless steel.
Features
1. Spring guide sleeve Probe with wear-resistant cemented carbide probe, which can also ensure that the probe has constant pressing force and stable sampling value when making measurements on hard or rough surfaces;
2. Can quickly and automatically identify the magnetic substrate;
3. High accuracy and Stability;
4. Measurement speed up to 0.3 seconds/time;
5. The large-screen digital display is clearer;
6. Two shutdown methods: manual shutdown mode and automatic shutdown mode;
7. Measurement range and high resolution;
8. Adopt digital backlight display, regardless of differences, suitable for night use.
9. Measurement mode: single measurement/continuous measurement;
10. It has the function of metric-inch unit conversion to achieve μm/mil conversion.
11. Newly designed shell and internal structure to enhance product beauty, anti-drop and anti-Impact ability;
12. Measurement accuracy is good.
Principle
Measurement principle is magnetic Induction + eddy Current. Fe function uses magnetic Induction method to detect nonmagnetic Coating thickness on all magnetic substrates; NFe function uses eddy Current method to detect insulation Coating thickness on all nonmagnetic substrates.
Applications
Coating thickness measurement on nonmagnetic substrates
Standards
National standards, international standards
Steps
1. Turn on the power supply of the device;
2. Measurement mode (single measurement or continuous measurement);
3. Probe touch the surface to be measured for measurement;
4. Read the measurement results displayed by the LCD point array LCD screen;
5. You can choose to convert metric and British units.
6. Manual shutdown or wait for automatic shutdown after measurement is completed.
Notice
- The ambient temperature range is -10-50 ° C, Humidity < 80%;
Make sure the thickness of the substrate is not less than 0.3mm.
- Measurement within the radius of curvature: F function convex 1.5mm/concave 25mm, N function convex 3mm/concave 50mm;
- Use 2 AA batteries for power supply, pay attention to the battery power;
- Avoid Strong Impact or Drop of Equipment;
- Keep Probe in touch with the surface vertically during measurement.
