Overview

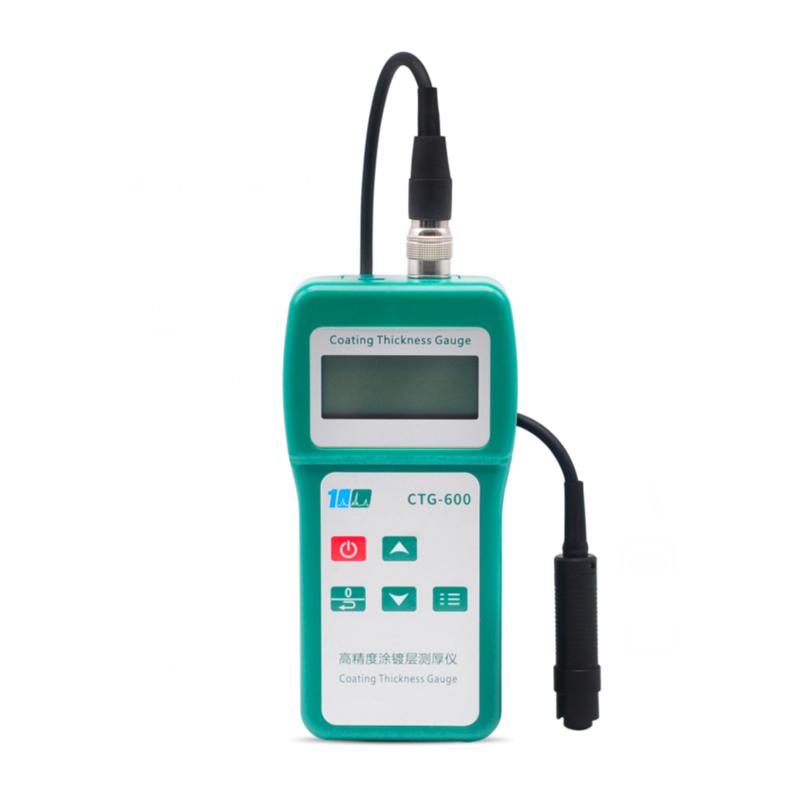

YIBAI CTG-600F5 split Coating thickness gauge adopts the principle of magnetic Induction, which can automatically identify magnetic metal substrates, and can quickly, non-destructive and precise measurement of coating and platings thickness. It is suitable for laboratories and engineering sites, and is widely used in automotive industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other fields.
Features
1. Spring guide sleeve Probe with wear-resistant cemented carbide probe to ensure that the probe has constant pressing force and stable sampling value
2. Can quickly and automatically identify the magnetic substrate
3. High accuracy, Stability
4. Measurement speed up to 0.3 seconds/time
5. Large screen digital display is clearer
6. Two shutdown methods: manual shutdown mode and automatic shutdown mode
7. Measurement range, high resolution
8. Adopt digital backlight display, ignore the difference, suitable for night use
9. Measurement mode: single measurement/continuous measurement
10. With metric-inch unit conversion function, achieve μm/mil conversion
11. Newly designed shell and internal structure to enhance product beauty, anti-drop and impact resistance
12. Measurement accuracy
13. High and low temperature resistance, drop resistance, Probe wear resistance (more than 500,000 times)
14. Test Stability, Test speed, suitable for various measurement environments
Principle
The instrument uses the principle of magnetic Induction to detect the nonmagnetic Coating thickness on all magnetic substrates by Fe function, such as lacquers on steel and iron, fire-proof coatings, anti-corrosion coatings, powder coatings, plastics, porcelain, chromium, copper, zinc, etc.
Applications
Automobile industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection
Standards
National standards, international standards
Steps
1. Install 2 AA batteries for power supply
2. Measurement mode: single measurement or continuous measurement
3. Touch the Probe surface for measurement
4. Switch metric/imperial units as needed (μm/mil)
5. Select manual shutdown or wait for automatic shutdown after use
Notice
Only for nonmagnetic coating measurements on magnetic substrates
• Use ambient temperature range of -10-50 ℃, Humidity < 80%
• The thinnest substrate thickness is 0.3mm.
• Minimum radius of curvature: 1.5mm convex surface
• Avoid use beyond the specified environment conditions
• Protect Probes to Avoid Excessive Impact
