Overview

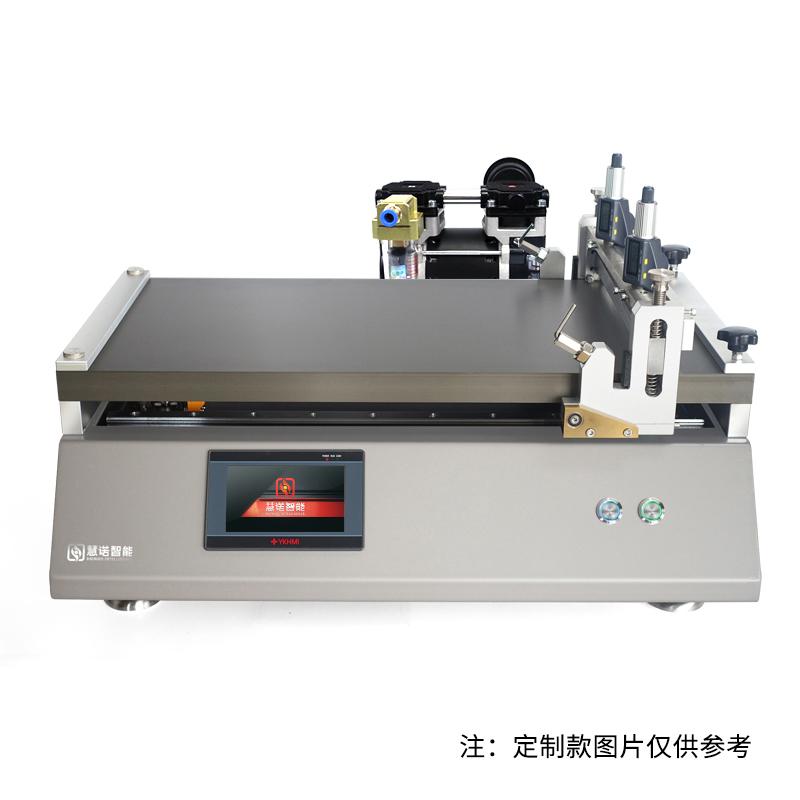

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a bar drawdown blade Coater, using bar and drawdown blade two coating methods, external Vacuum chuck pump, innovative bar Installation method and clamshell drawdown blade head greatly improve Spreader efficiency, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, Resin and other laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy

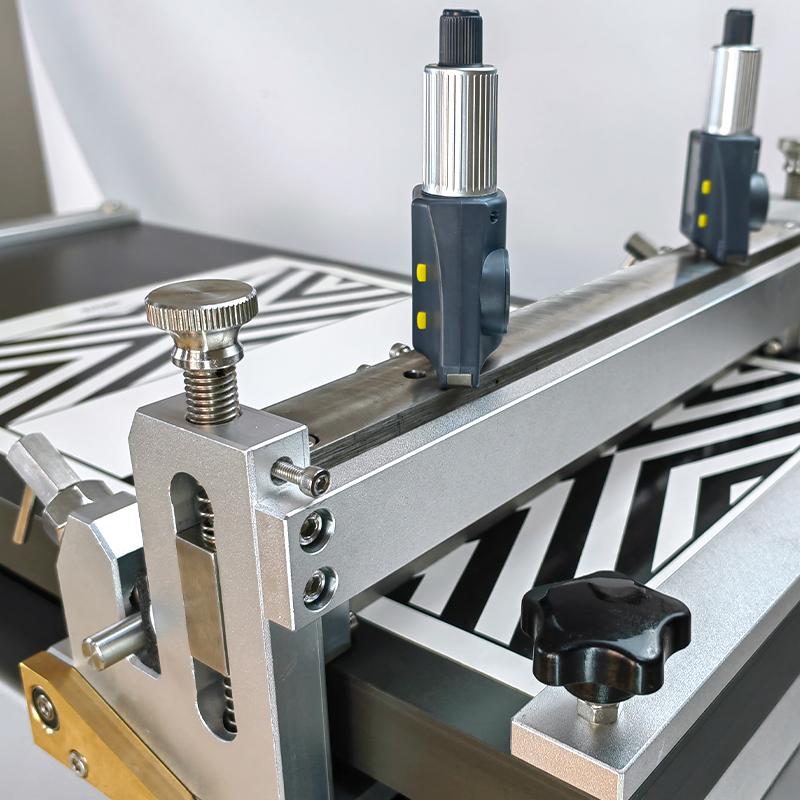

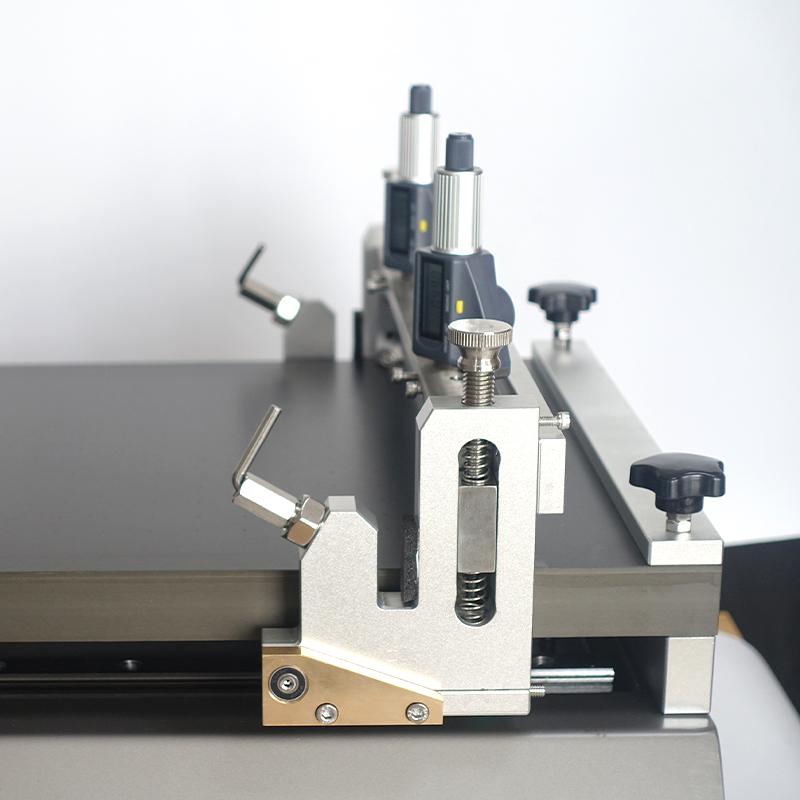

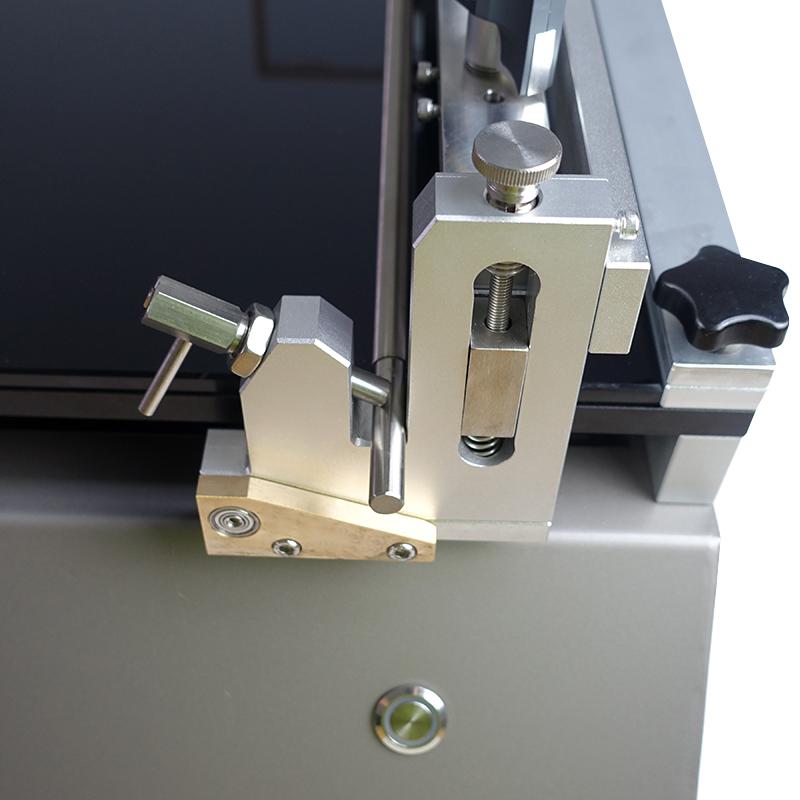

3. Clamped Blade Coating Head for Easy Cleaning
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy

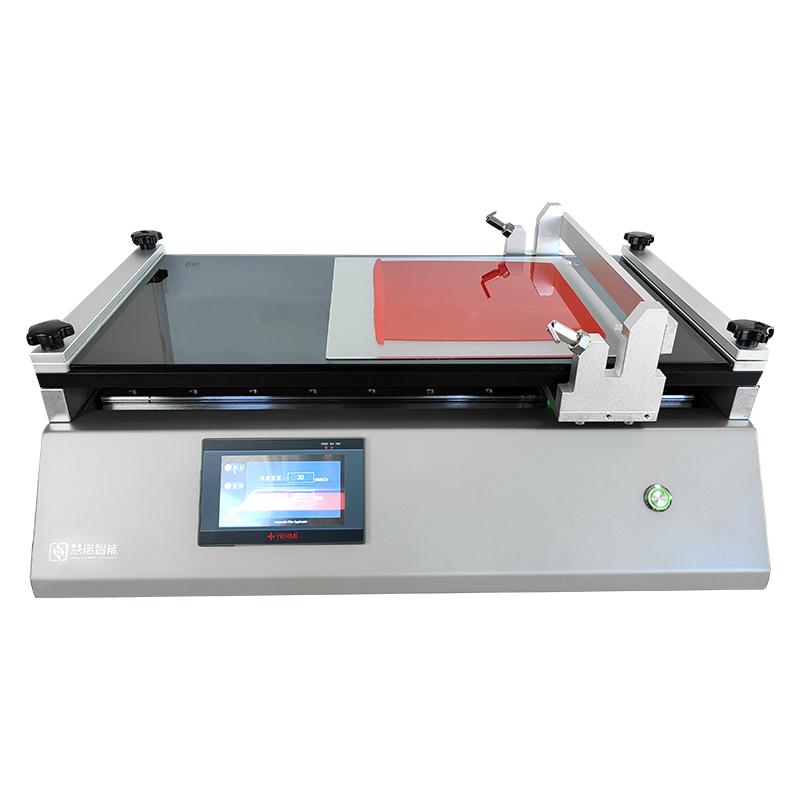

5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. Two coating methods, bar and drawdown blade, are used to fix the substrate through Vacuum chuck and fixture to realize the automatic film process.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare Substrate and Spreader Samples
2. Place the substrate on the Spreader table and fix it with Vacuum chuck or fixture
3. Choose the bar or Blade Coating method as needed
4. Set application length and Spreader speed parameters through Touchscreen
5. Start the device for automatic filming
6. Remove the sample after the Spreader is completed
7. Spreader head and countertop
Notice
• Please make sure that the power supply of the device is connected correctly before operation
• Check whether the substrate is firmly fixed before Spreader
• Select the appropriate coating method and parameters according to the sample characteristics
• Clean the Spreader head and countertop in time after the Spreader is completed
• Regularly check the working status of the Vacuum chuck system
• Do not touch moving parts during equipment operation
