Overview

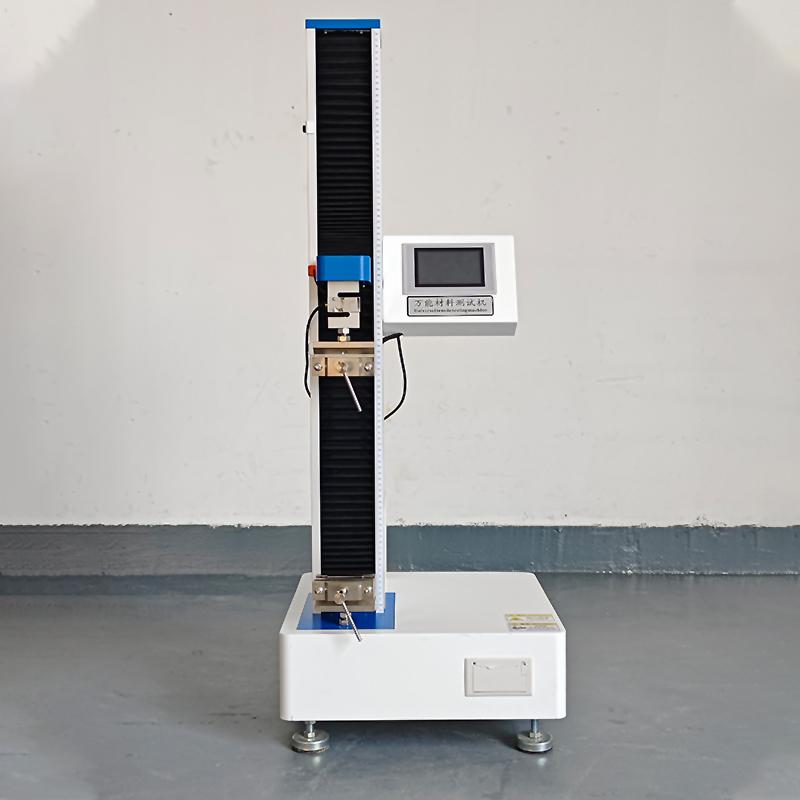

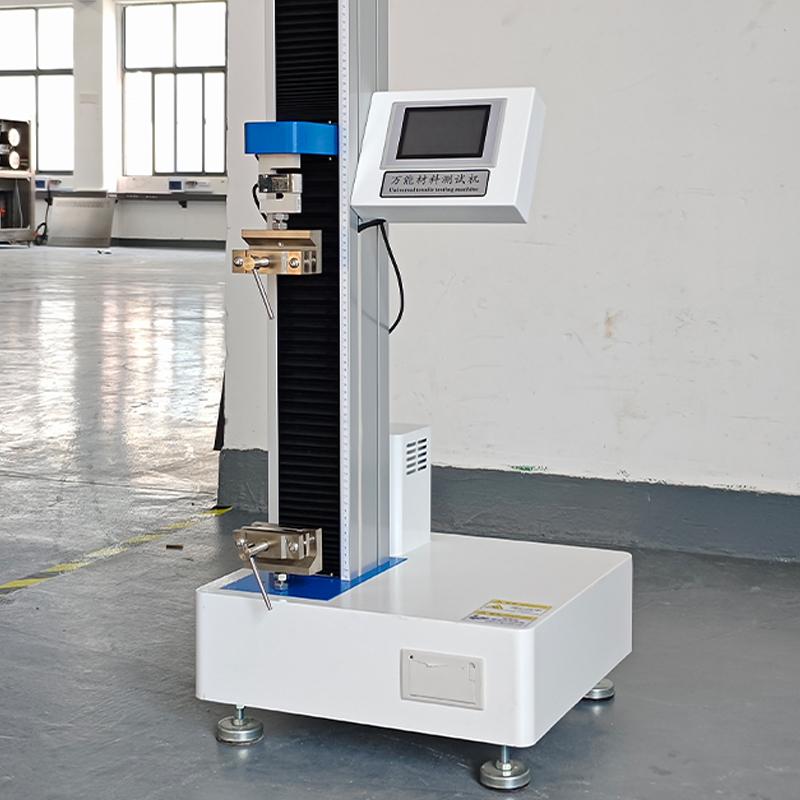

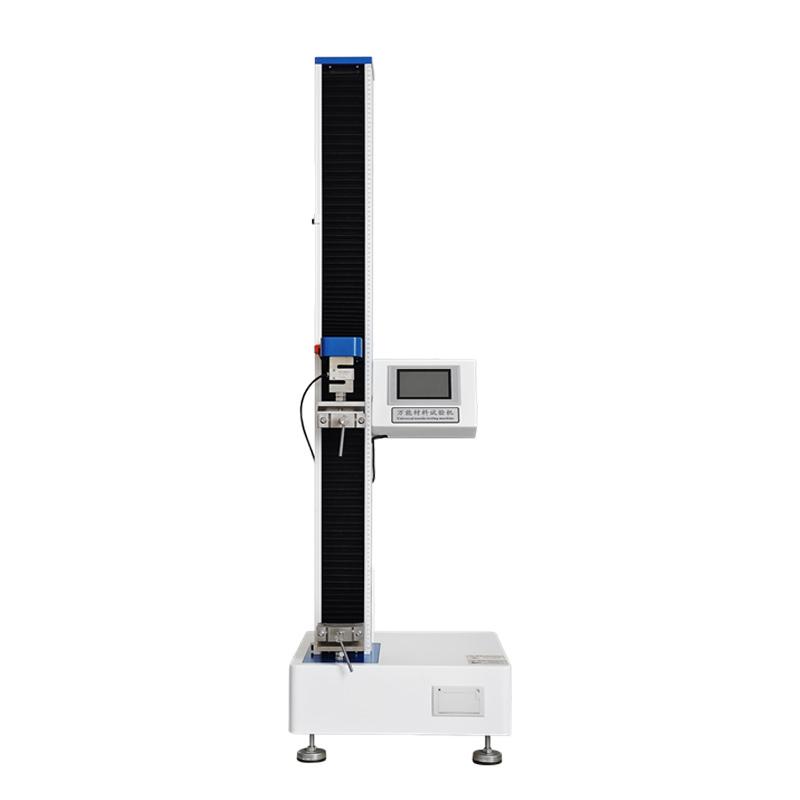

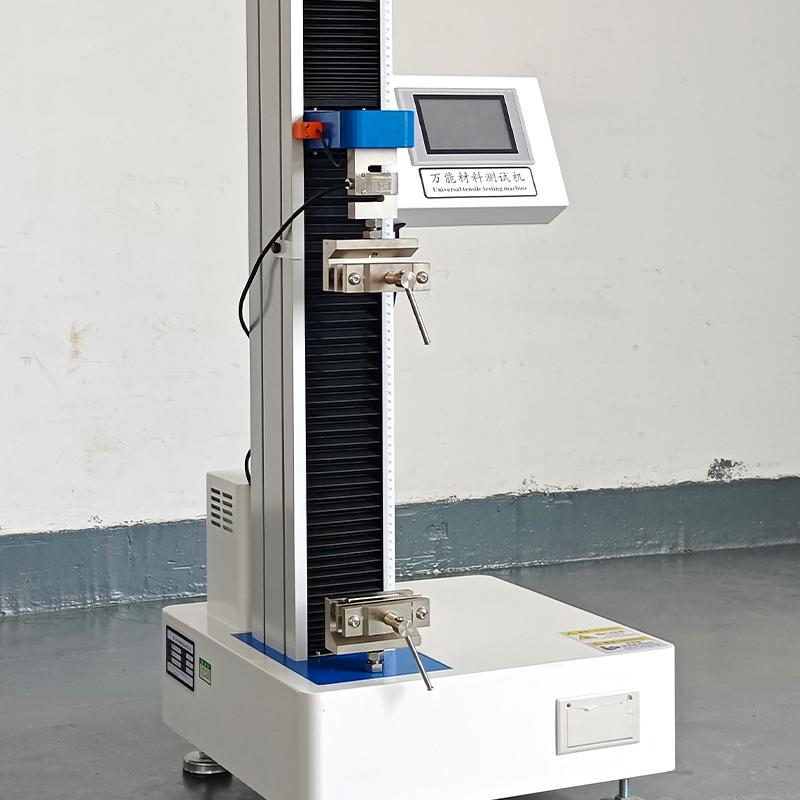

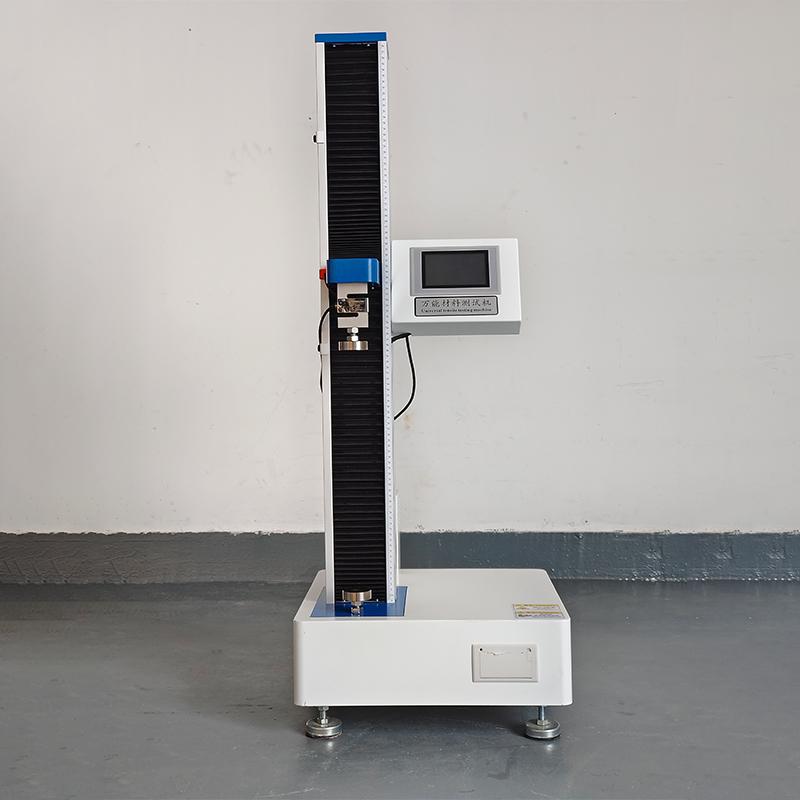

The digital single-arm Universal Testing Machine STX1000 is a new generation of microcomputer-controlled electronic universal testing machine specially designed by Lugong brand for universities and research institutes. The equipment adopts High Accuracy stepper motor and driver, which drives the precision ball drive screw and guide rod to load after deceleration. It can complete the test of tensile, compression, bending, shear and other mechanical properties of the sample. It has a wide and accurate loading speed and force measurement range, and has High Accuracy and Sensitivity for the measurement and control of load, deformation and displacement.
Features
1. The main engine adopts a high-steel single-arm structure with a beautiful appearance
2. High Accuracy Ball Screw for Efficient and Smooth Transmission
3. The transmission part adopts arc tooth synchronous belt drive, and there is no gap in both directions during the transmission process
4. High Accuracy Stepper Motor and Drive System to Ensure Smooth Transmission and Precise Control
5. The fixture is specially designed for firm clamping, easy operation, and no jaw slippage
6. The special process guarantees the coaxiality of the testing machine and eliminates the influence of irregular samples on the Sensor

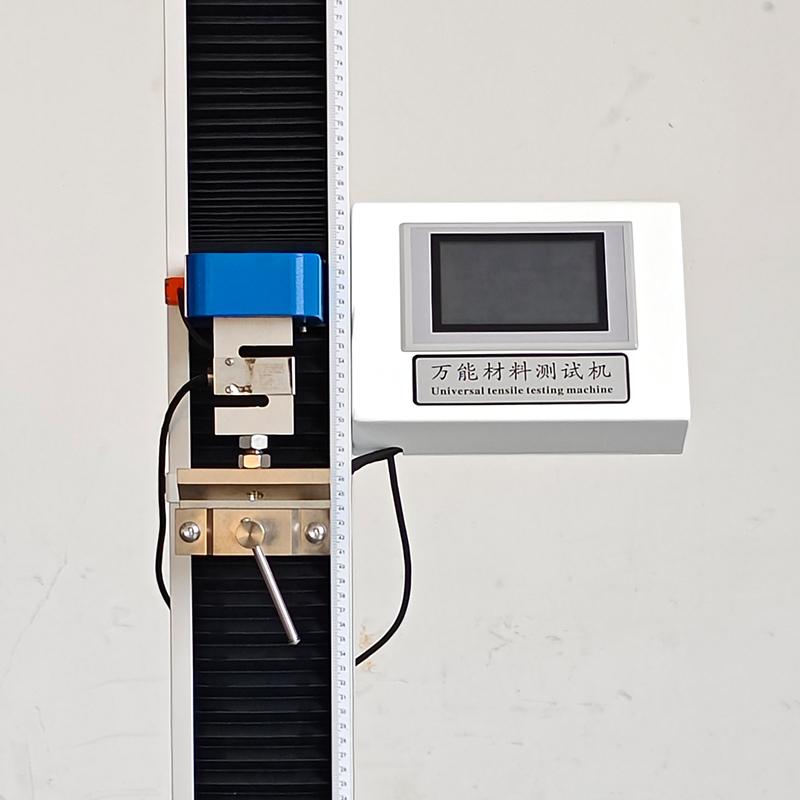

7. Large LCD screen real-time display control parameters and measurement results
8. With overload protection and other functions
Principle
The testing machine adopts High Accuracy stepper motor and driver, drives the precision ball drive screw and guide rod to load after deceleration, measures and controls the load, displacement and deformation through the control system, and completes the test of tensile, compression, bending, shear and other mechanical properties of the sample.
Applications
Plastic film, composite film, soft Encasement material, Adhesive, adhesive tape, adhesive, rubber, paper and other products of tensile, disbonding tearing and other performance testing, research institutions, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments
Standards
Force value accuracy: 1 level, force value measurement range: 2%~ 100% FS, force value Indication Error: better than indication +/- 1%, force value resolution: 1/3000, beam displacement measurement accuracy: resolution higher than 0.01mm
Steps
1. Connect single-phase 220V +/- 10% power supply
2. Set the test speed range from 0.1 to 500mm/min
3. Install the specimen in the fixture
4. Set the control parameters through the large-screen LCD screen
5. Start the testing machine for testing
6. Real-time observation of measurement results
7. Stop the equipment after the test is completed
Notice
• The working environment should be kept at room temperature - 35 ° C, relative humidity should not exceed 80%
• Pay attention to mechanical limit protection and software overload protection functions
• Ensure that the specimen is firmly held to avoid slippage
• Regularly check the transmission system of the equipment
• Note that the weight of the equipment is about 90kg, and it needs to be stable during installation
