Overview

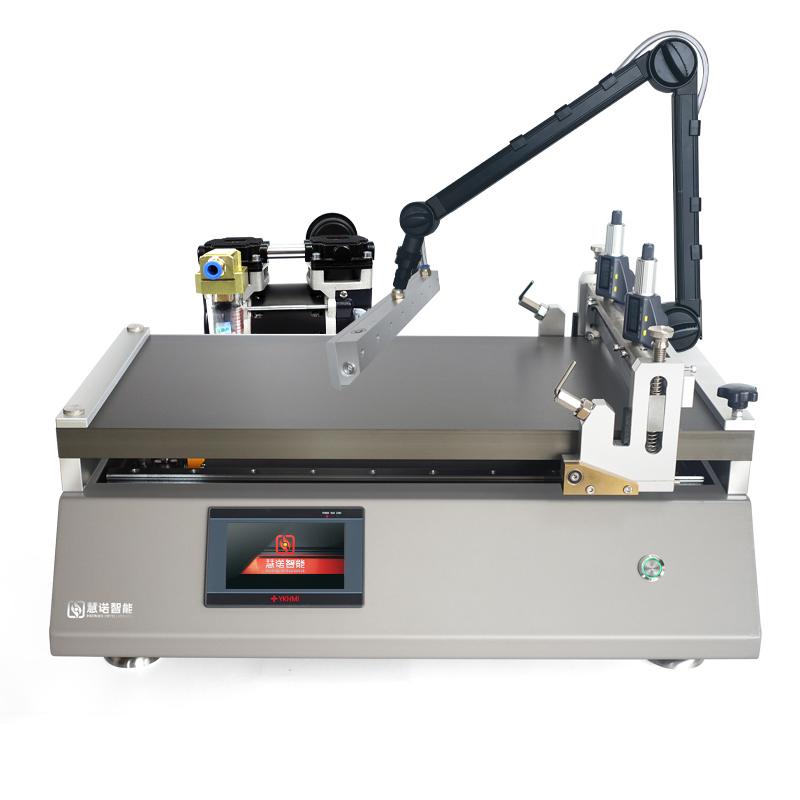

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate (e.g. Glass, cardboard, fabric) and fix it on the coating table
2. Select the coating method (bar or drawdown blade) and install the corresponding Spreader head
3. Set application length and Spreader speed parameters through Touchscreen
4. Adjust film thickness and heating temperature as needed
5. Start the device for automatic filming
6. Spreader head after film
Notice
• Ensure that the power supply of the equipment meets the requirements before operation (100V~ 220V/50~ 60HZ)
• Before Spreader, check whether the substrate is fixed firmly and whether the Vacuum chuck function is normal
• Select the appropriate coating method and thickness range according to the sample characteristics
• Pay attention to the convenience of clamshell design when cleaning Spreader head
• Pay attention to temperature control when using the heating function to avoid overheating
• Customized functions need to be confirmed with the supplier in advance
