Overview

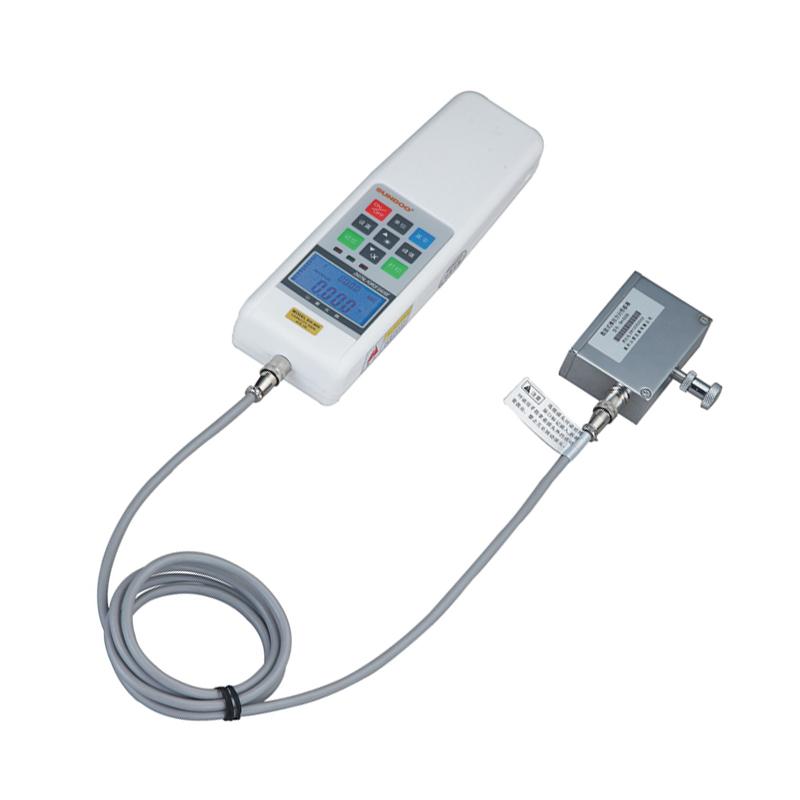

SHB-50B Tension and Compression Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO, with the characteristics of High Accuracy and high resolution. The digital display Force Gauge is small in size, light in weight and easy to carry. It is suitable for push-pull load test, plug-in force test and failure test of various products. It can be combined with a machine and a fixture to form a small testing machine.
Features
1. High Accuracy and resolution
2. Free setting and judgment of upper and lower deviation values, red and green indicator lights and buzzer automatic sound and light alarm settings
3. Test direction display
4. Blue backlight can be switched on and off
5. Can store 10 sets of test data and automatically calculate the average value of the stored data
6. Three units N, kgf, lbf are automatically converted
7. The data on the LCD screen can be flipped and displayed
8. With peak hold function, peak automatic release function and free setting of release time
9. Power-saving design of automatic shutdown without operation, free shutdown time setting
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, pass or fail value judgment, connect the dedicated machine to achieve When the predetermined stop value is reached, the machine stops moving
Principle
SHB-50B Pull and Compress Force Gauge performs push and pull force measurement through external Sensor structure. Measurement range is 10%~ 100% FS, and digital display is used to display measurement results in real time. The instrument processes and analyzes the collected load data through the built-in processing system, and realizes various function settings and Data storage.
Applications
Product push-pull load test, insertion force test, failure test
Steps
1. Read the instructions carefully before use
2. Set the upper and lower limit deviation values as needed
3. Select the test direction and unit
4. Perform a push-pull test
5. View and store test data
6. Can be connected to a computer or printer through the serial port for data output
Notice
• Please read the instructions carefully before use
• Make sure the battery is fully charged
• Set test parameters correctly
• Avoid exceeding the maximum Measured value 50N
• Regularly charge and maintain the battery
