Overview

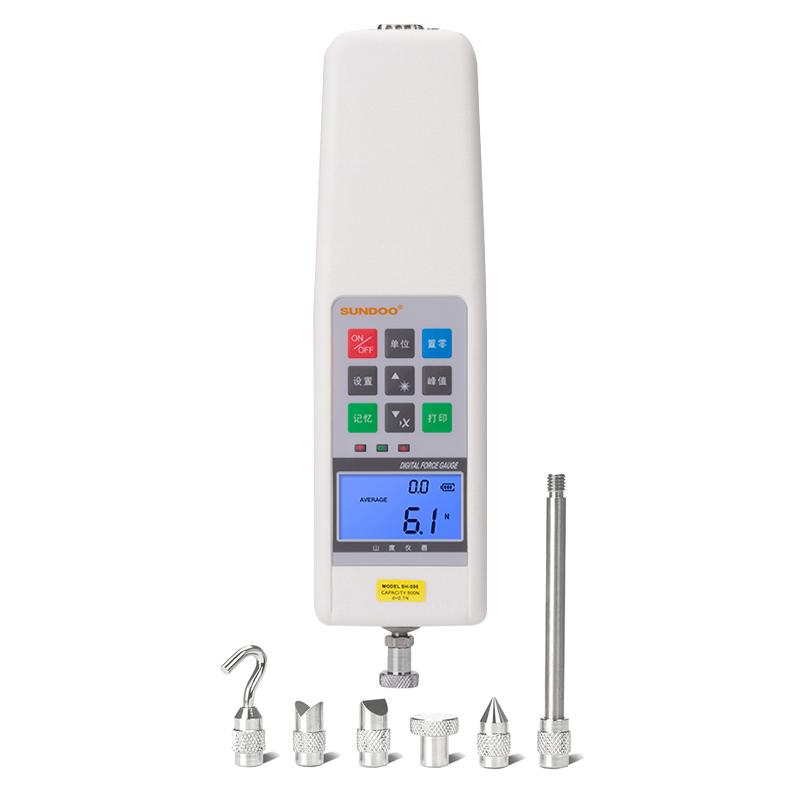

SHB-20 Force Gauge is a digital display push-pull test instrument produced by SUNDOO. It has the characteristics of High Accuracy and High Resolution. It is suitable for thrust and tension testing. The instrument is small and easy to design, supports a variety of unit automatic conversion, Data storage and alarm functions, and can be connected to a computer, printer or special machine for extended applications.
Features
1. High Accuracy and high resolution;
2. The upper and lower limit deviation values are freely set and judged, and the red and green indicator lights and buzzer are automatically set for sound and light alarm;
3. Test direction display;
4. The blue backlight can be switched on and off;
5. It can store 10 sets of test data and automatically calculate the average value of the stored data.
6. Three units N, kgf, and lbf are automatically converted;
7. The data on the LCD screen can be flipped and displayed;
8. With peak hold function, peak automatic release function and free setting of release time;
9. Power-saving design for automatic shutdown without operation, with free shutdown time setting.
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, qualified or unqualified value judgment, connect the dedicated machine to achieve When the predetermined stop value is reached, the machine stops moving.
Principle
The SHB-20 Force Gauge detects the push-pull load through the built-in Sensor, converts the force value into an electrical signal, and displays it in real time on the digital display screen after processing. The instrument supports peak hold, automatic alarm and Data storage, and can be connected to external devices for Data analysis and control through serial output.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
1. Read the instructions carefully before use.
2. Connect the power supply or ensure that the battery is charged.
3. Set the upper and lower limit deviation values and alarm parameters;
4. Select the test unit and display mode.
5. Carry out push-pull load testing, and the instrument automatically records data.
6. Connect external devices through the serial port for data output or control.
Notice
• Operating temperature: 20 ℃ +/- 10 ℃;
• relative humidity: 35% RH~ 65% RH;
• No vibration source and no corrosion medium around;
Make sure to fully understand the function of the instrument before use.
• Charging time of battery is about 4 hours, use time is about 40 hours;
• Standby time is about 3 months, Battery life ≥ 300 times.
