Overview

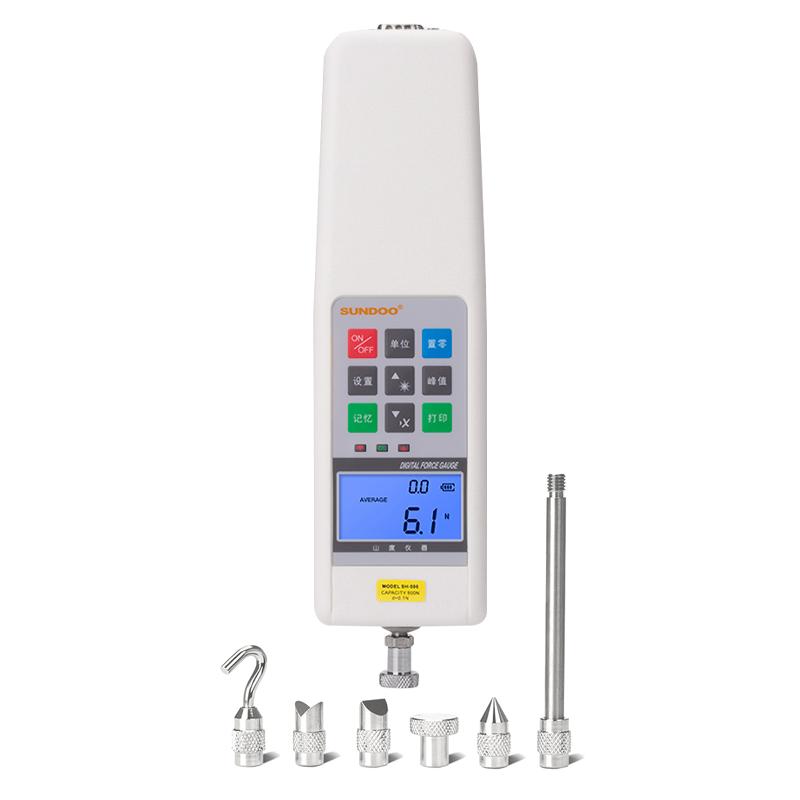

SHB-50 Tension and Compression Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO, with the characteristics of High Accuracy and High Resolution. It is a general-purpose Portable push-pull load test instrument, which is suitable for push-pull load test, plug-in force test and failure test of various products. It can be combined with a machine and a fixture to form a small testing machine.
Features
1. High Accuracy and high resolution
2. Free setting and judgment of upper and lower deviation values, red and green indicator lights and buzzer automatic sound and light alarm settings
3. Test direction display
4. Blue backlight can be switched on and off
5. It can store 10 sets of test data and automatically calculate the average value of the stored data
6. Three units N, kgf, lbf are automatically converted
7. The data on the LCD screen can be flipped and displayed
8. With peak hold function, peak automatic release function and free release time setting
9. Power-saving design for automatic shutdown without operation, free shutdown time setting
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, qualified or unqualified value judgment, connect the dedicated machine to achieve When the predetermined stop value is reached, the machine stops moving
Principle
Measurement range is 10%~ 100% FS. The instrument adopts digital display, peak holding and automatic calculation functions, and can realize connection and data transmission with computers, printers and special machines through serial output.
Applications
Product push-pull load test, insertion force test, failure test
Steps
1. Read the instructions carefully before use
2. Connect the power supply or ensure that the battery is fully charged
3. Set the upper and lower limit deviation values, unit conversion and other parameters as needed
4. Conduct a thrust or pull test
5. View the LCD display data or connect external devices through the serial port
6. The instrument can automatically store data and calculate the average value
Notice
• Please read the instructions carefully before use
• Operating temperature: 20 ℃ +/- 10 ℃
• relative humidity: 35% RH~ 65% RH
• There should be no vibration source and no corrosion medium around
• The test bench needs to be purchased separately
