Overview

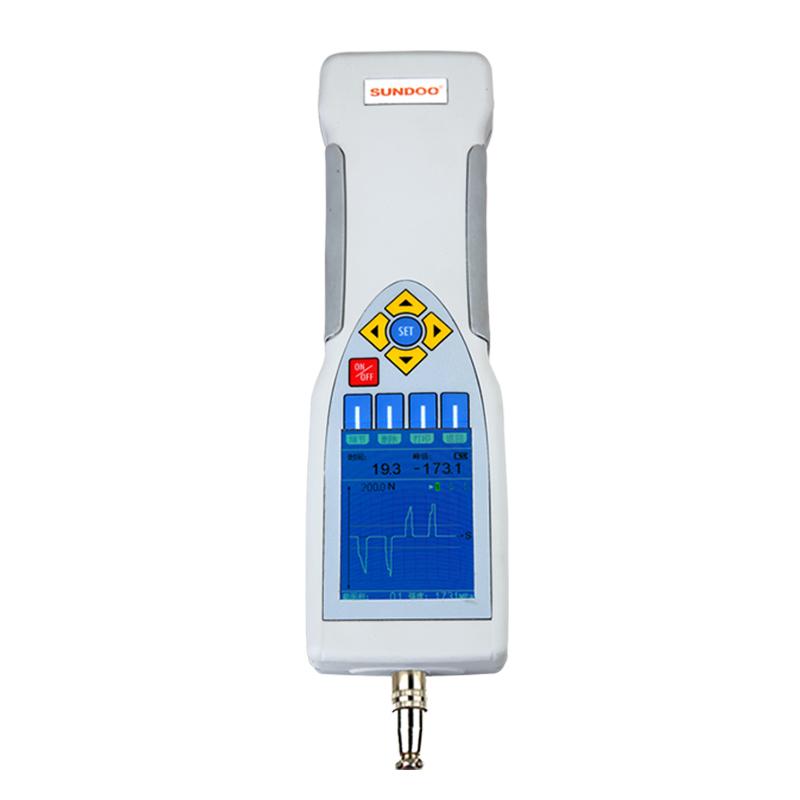

SP-20 Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO with High Accuracy and high resolution. It adopts 240 × 320TFT color screen display, supports the whole process of Linear dispersion monitoring and testing, and has functions such as upper and lower limit deviation setting, automatic alarm of buzzer, Data storage, etc. It is suitable for push-pull load test, plug-in force test and failure test of various products.
Features
1.240 × 320 pixel 65535 color TFT screen
2. Peak, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process
3. Free setting of upper and lower deviation values
4. The screen can be flipped to display
5. Can store 3 sets of Linear dispersion data
6. Can store 70 sets of peak and tracking value data
7. Four units N, kgf, lbf, and ozf are automatically exchanged
8. With peak hold function, peak automatic release function and free setting of release time
9. Test material strength by entering material cross-sectional area
10. Power-saving design of automatic shutdown without operation, free shutdown time setting
11. Can be connected to a dedicated machine to stop running when the predetermined force value is reached
12. USB port hot-swappable connection PC, through supporting software to achieve multi-mode measurement, unlimited storage, transfer, traceability test Linear dispersion data and custom test report
Principle
The SP-20 Force Gauge converts the signal into digital values and displays it in real time on the TFT screen through the built-in Sensor measurement of thrust or tension. It supports the whole process of Linear dispersion monitoring and testing, which can be judged by setting the upper and lower deviation values and buzzer alarms, and can be connected to a special machine for control operation. The USB interface allows hot-swappable connection to the PC, and the supporting software is used for data processing and storage.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
1. Read the instructions carefully before use
2. Connect the power supply or make sure the battery is charged.
3. Set the upper and lower limit deviation values and units as needed
4. Perform a thrust or pull test, monitor the screen display
5. Use peak hold and automatic release functions
6. Linear dispersion and peak data storage
7. Connect the PC for data transfer through the USB port
Notice
• Operating temperature: 20 ℃ +/- 10 ℃
• relative humidity: 35% RH~ 65% RH
• No vibration source and no corrosion medium around
• Read the instructions carefully before use to ensure correct operation
