Overview

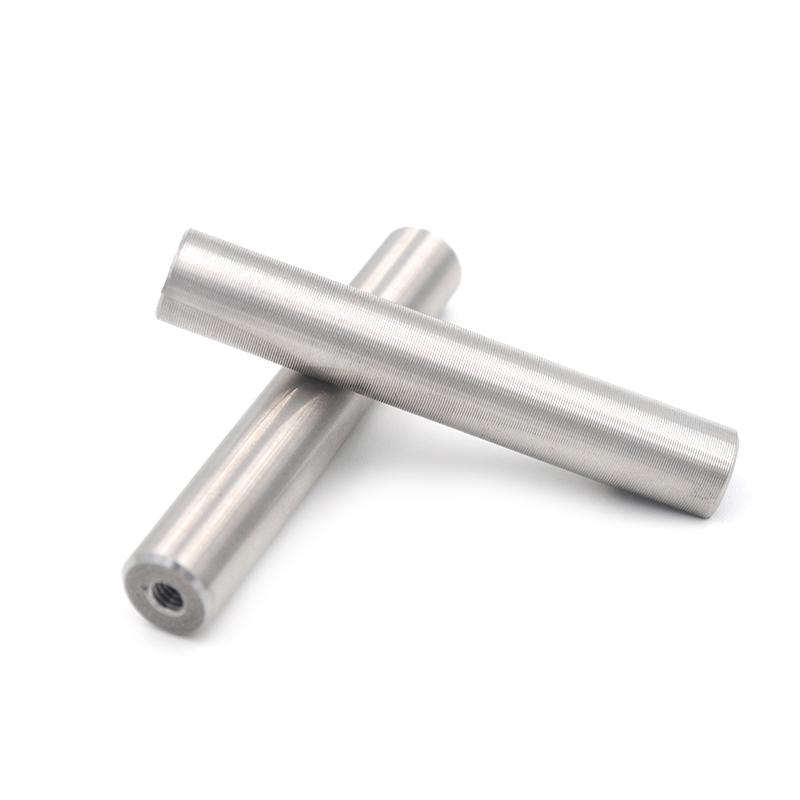

OSP-00/60 coating rod is a formed coating rod of Japanese OSP brand, which can realize 0 μm ultra-thin film Spreader. The product is made of 304 stainless steel, with a diameter of 10mm, a total length of 60mm, an application width of 60mm, a continuous groove design, and a film accuracy of 1 μm.
Features
1.Design formed to achieve 0 μm thin film Spreader
2. Adopt a special cold extrusion process to form continuous grooves without the worry of broken wires
3. film accuracy up to 1μm
4.304 stainless steel material, durable and easy to clean

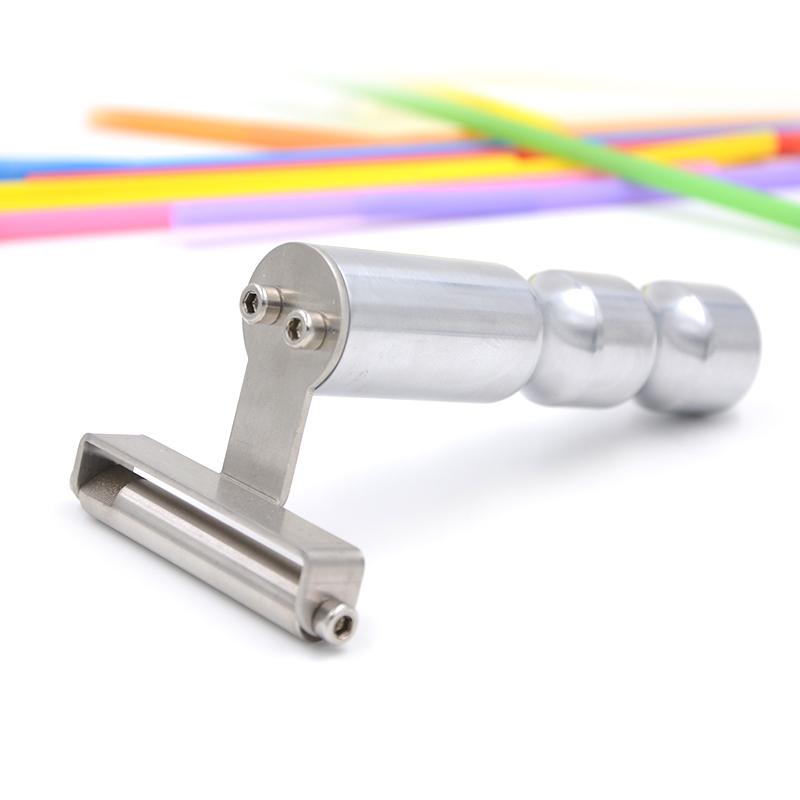

5. Can be equipped with Spreader handle, film easily, reduce the force error
Principle
The OSP formed coating rod is processed into a structure with continuous grooves through a special cold extrusion process, and the coating is uniformly Spreader on the surface of the substrate by extrusion during use to form a film of precise thickness.
Applications
Laboratory film, film prepative, material coating, scientific research experiment

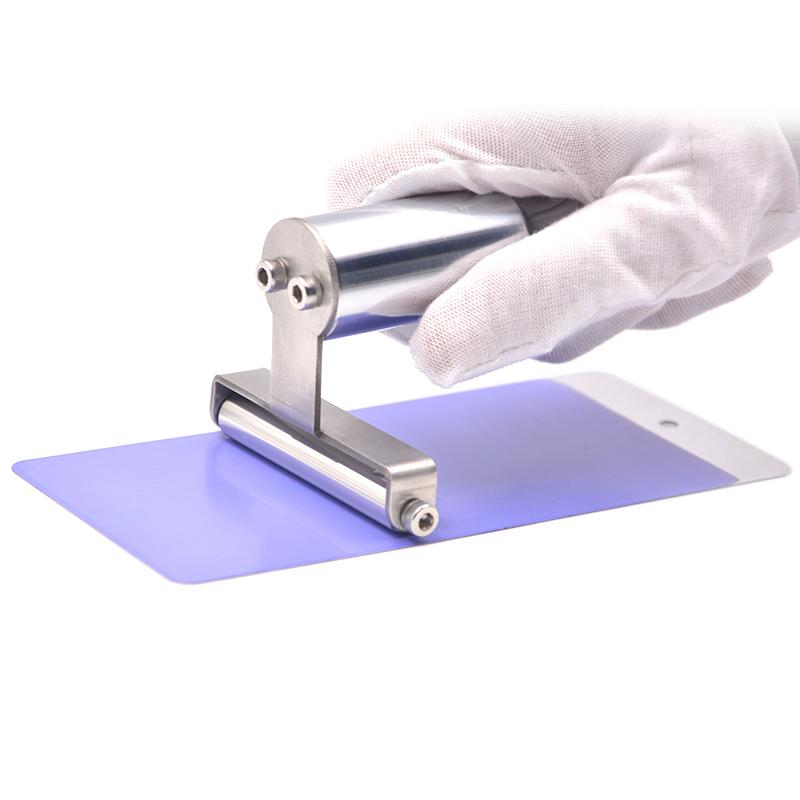

Steps
1. Spreader Substrate and Coatings
2. Place the coating rod at the starting position of the substrate
3. Uniform force push coating rod
4. Clean the coating rod in time after completing the Spreader
Notice
• It should be cleaned in time after use to keep the coating rod clean
• Avoid scratching the surface of the coating rod with hard objects
• Pay attention to moisture and corrosion when storing
• Keep the force uniform during use to ensure film mass
