Overview

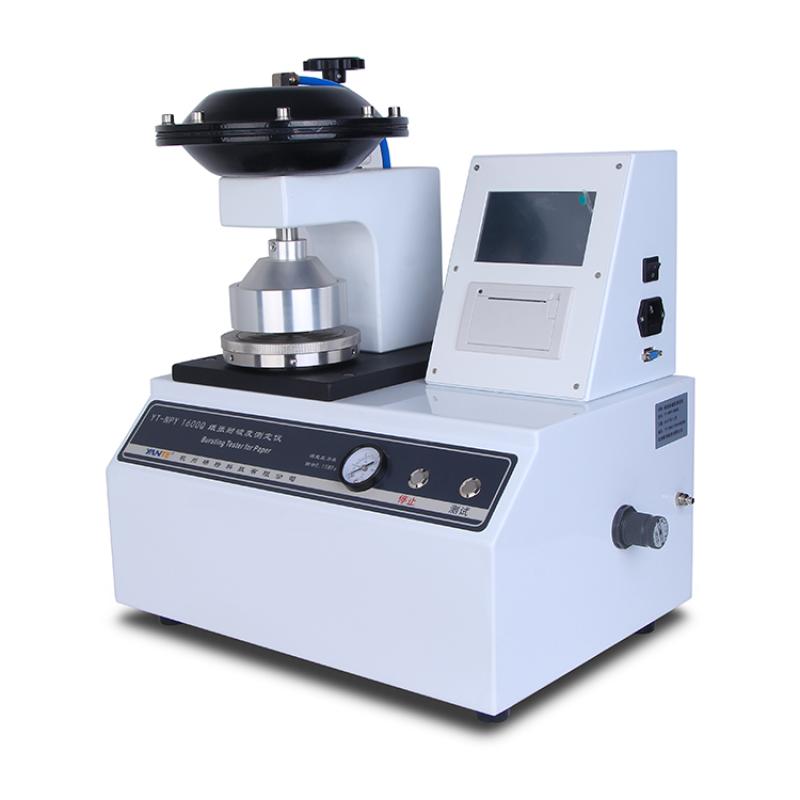

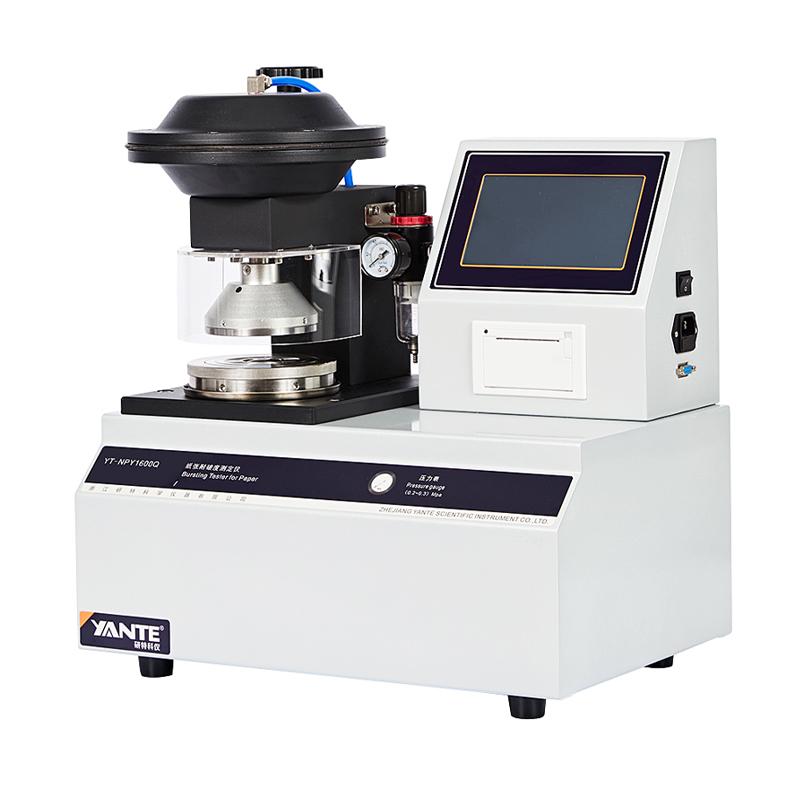

YT-NPY1600Q paper Burst resistance tester is a special instrument for measuring paper Burst Strength. The instrument adopts High Accuracy Sensor, which has high Measurement accuracy, and the clamping system adopts pneumatic mode, which is convenient for operation and has data processing function. It can directly obtain statistical results of various data, and can automatically reset, easy to operate, easy to adjust, and stable performance.
Features
1. One-click testing, easy to understand
2. The clamping system adopts automatic type, which is convenient for measurement (air source is required)
3. The main board adopts new technology and new design, and the CPU adopts a 32-bit ARM processor, which improves the processing speed of the instrument and calculates the data more accurately and quickly
4. Adopt 5-inch color Touchscreen, Chinese display, touch buttons, making the operation simple and easy to understand
5. Linear dispersion chart can be displayed, real-time display pressure
6. Automatic measurement, statistics, printing test results, and data saving function
7. Overrange Automatic Reset to Protect Precision Sensors
8. Test unit kPa, kgf/cm2, Psi display, can be arbitrarily selected
9. Using thermal printing movement, no need to use inks and color ribbon, no noise when working, fast printing speed and other characteristics
10. This instrument is equipped with a standard RS232 interface, which can communicate with microcomputer software (purchased separately).
Principle
The instrument uses a pneumatic clamping system to fix the sample, uses a High Accuracy Sensor to measure the Burst Strength of the material under pressure, and quickly calculates the data through an ARM processor to display the pressure Linear dispersion and test results in real time.
Applications
All kinds of paper, cardboard, gray paper, color box, aluminum foil, film, rubber, silk, cotton and other non-paper materials
Steps
1. Connect the power and air source
2. Place the sample in the clamping system
3. Set test parameters through Touchscreen
4. One-click start test
5. Instrument automatic measurement and display results
6. Data is automatically saved and printed
Notice
• Need to be equipped with a gas source, the gas source pressure is 0.15MPa
• Ambient Temperature should be within 10~ 35 ℃
• relative humidity should be less than 85%
• Power supply voltage is AC (220 +/- 10%) V, 50Hz before use
• Microcomputer software needs to be purchased separately
• Net weight 56kg, be careful when handling
