Overview

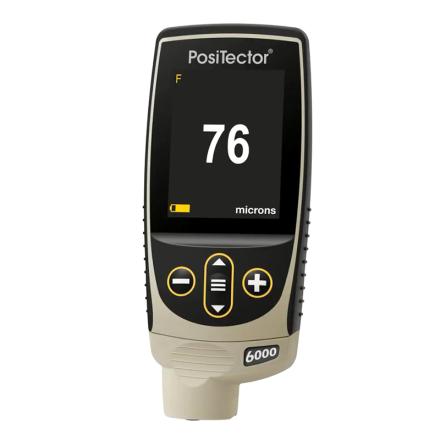

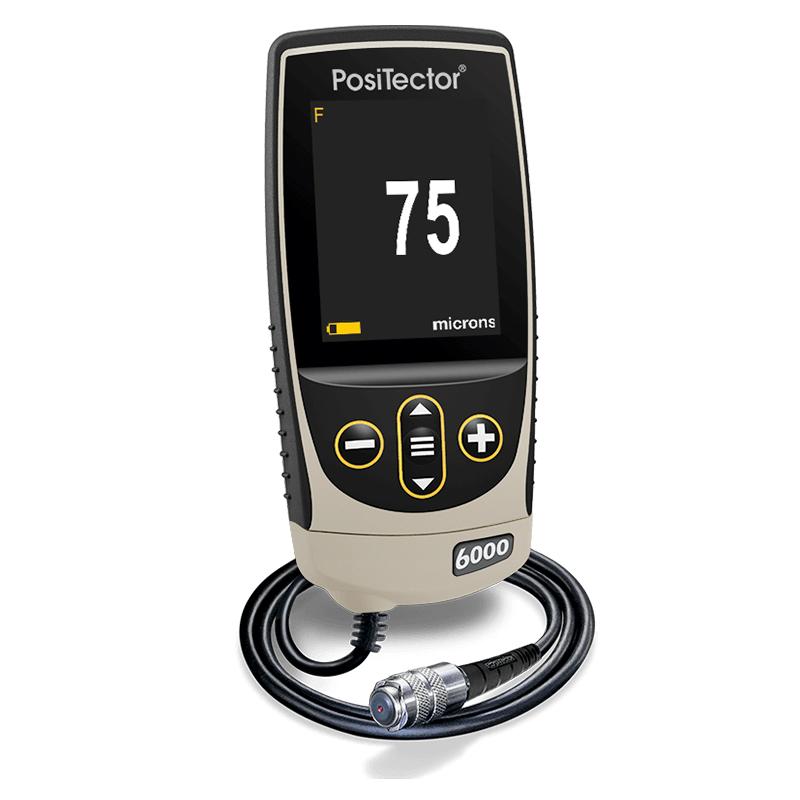

Defelsko PosiTector 6000 FS3 Coating thickness gauge is a magnetic metal Coating thickness gauge for measurement of ferrous metal substrates. It has the advantages of accurate measurement, wide application, compliance with various standards, easy use, etc. Measurement accuracy is high. The instrument adopts a general-purpose split Probe, Measurement range is 0~ 1500 microns, which belongs to the advanced Coating thickness gauge.
Features
1. Measurement accuracy, error range of +/- 1%, resolution of 0.1μm
2. Universal split Probe for ferrous metal substrates and nonmagnetic coatings

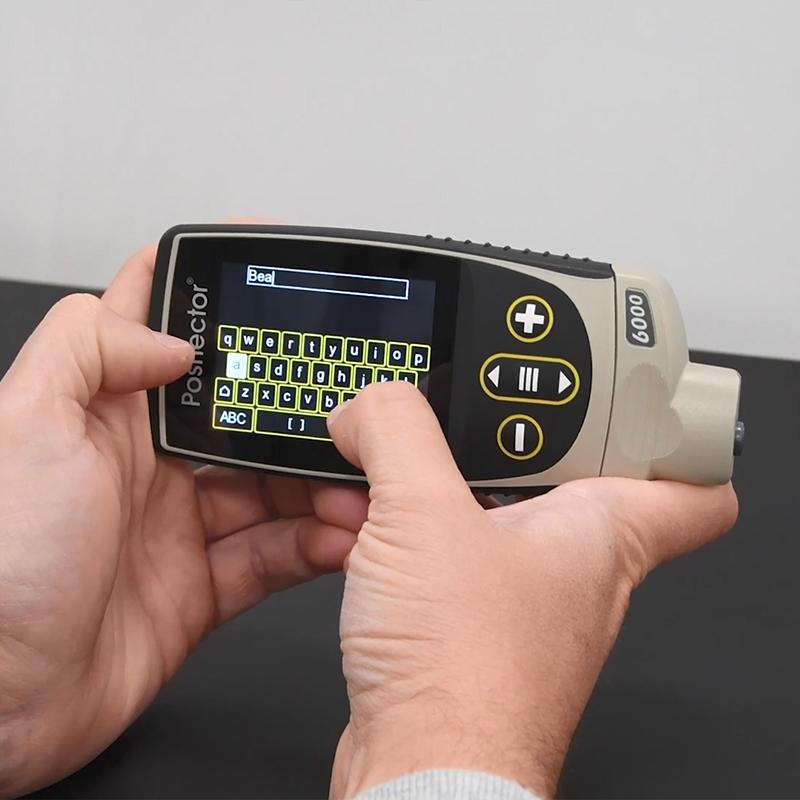

3. Equipped with 2.8-inch Color Touchscreen, easy to operate
4. Support USB and Bluetooth Interface for easy data transfer

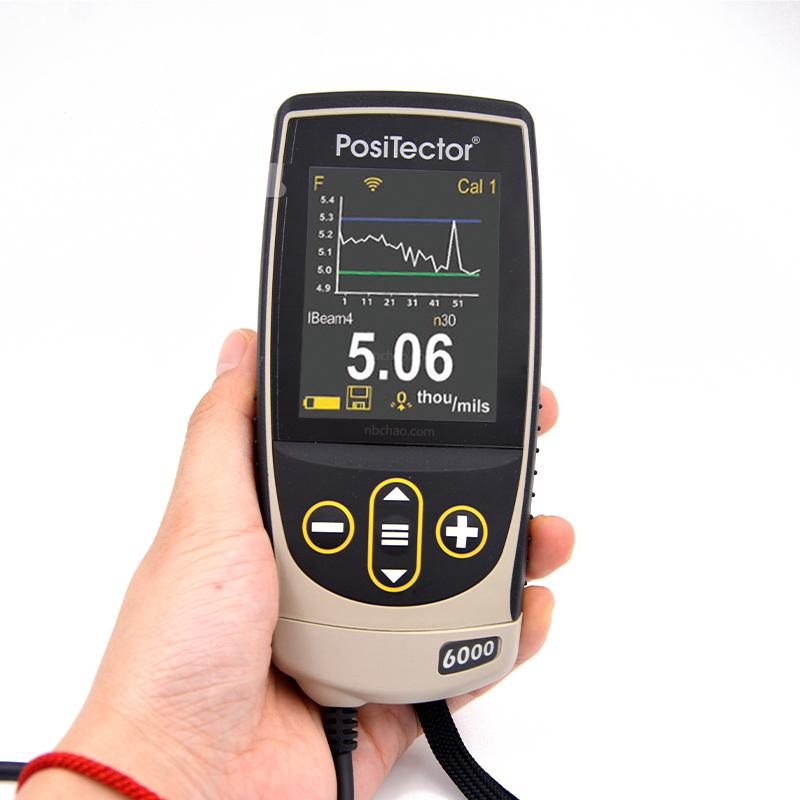

5. With statistical functions, including measurement times, MAX Maximum, MIN Minimum, Average, Standard Deviation
6. Built-in icon function to save screen images
7. Large data storage capacity, can store 250,000 Measured values and 1000 packets
Measurement speed: more than 180 readings per minute
9. Protection Rating IP65, suitable for a variety of environments
10. Support Chinese and English system languages
Principle
The PosiTector 6000 FS3 Coating thickness gauge is based on the principle of magnetic Induction and uses Probe to detect nonmagnetic Coating thickness on ferrous metal substrates for accurate measurement.
Applications
Ferrous metal substrate, nonmagnetic coating environment
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 * AAA alkaline battery

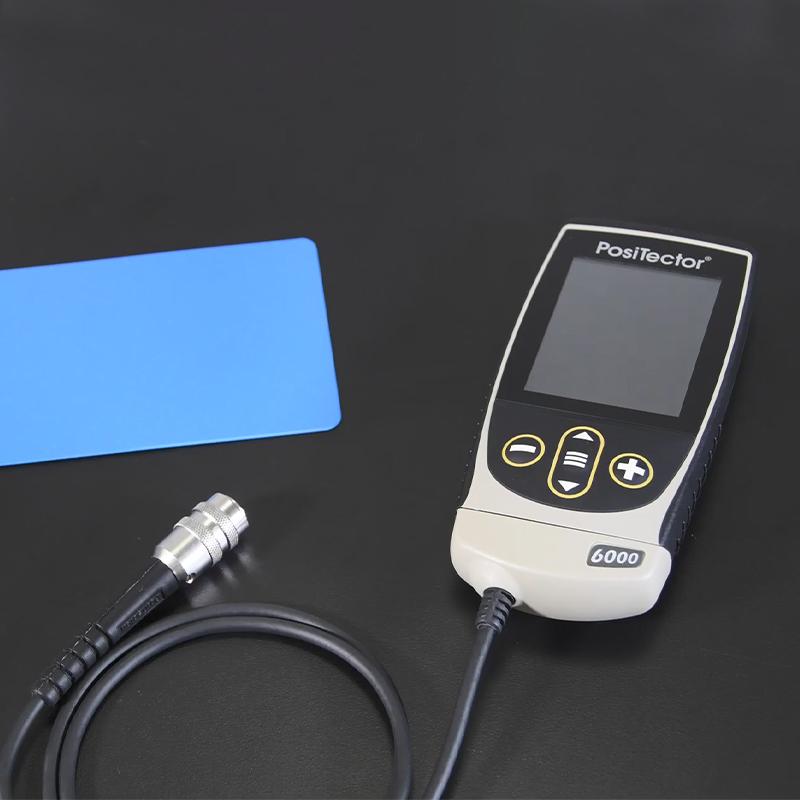

2. Connect the FS3 Probe
3. Open the device and select the system language
4. Perform calibrating (using Defelsko calibrated STDS1 or STDA1)
5. Probe placed on a nonmagnetic coating of ferrous metal substrate to begin measurement
6. View measurement results and statistics with Touchscreen
7. Use the USB or Bluetooth interface to transfer data to the supporting PosiSoft software
8. Save or export measurement data
Notice
• Only suitable for ferrous metal substrates and nonmagnetic coating environments
• It needs to be calibrated before use to ensure measurement accuracy
Avoid use in extreme environment conditions to protect equipment
• Regularly check the battery power to ensure normal power supply
• Pay attention to group management when storing data to avoid data loss
• Keep Probe clean during operation to avoid affecting measurement results
