Overview

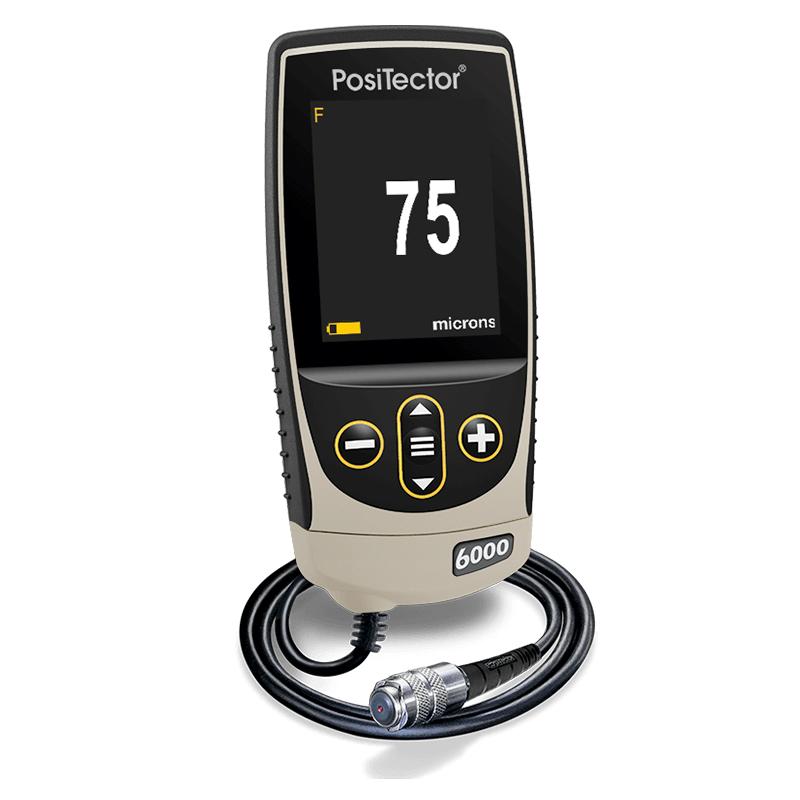

The Defelsko PosiTector 6000 FNS1 Coating thickness gauge is a standard dual function Coating thickness gauge with a universal split FNS1 Probe that enables simultaneous measurement of Coating thickness on magnetic and nonmagnetic substrates. Measurement ranges from 0 to 1500 microns, the instrument can store 250 measurements and is equipped with Posisoft analysis software for data management.
Features
1. Dual function thickness gauge, to meet all iron/non-iron Coating thickness detection
2. Automatic substrate type identification and measurement for all metal substrates

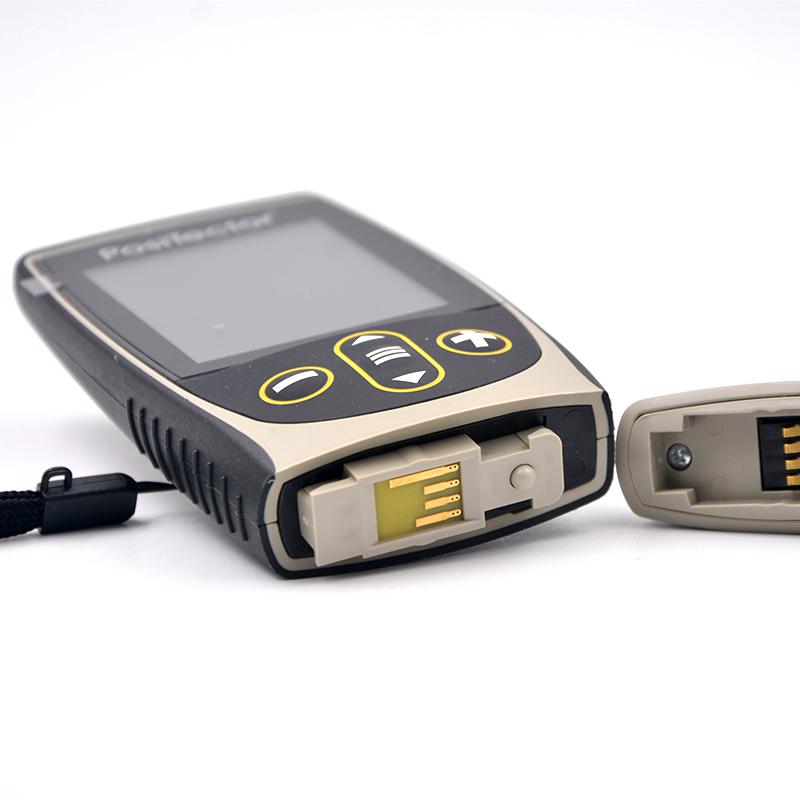

3. Split Probe design, Probe is easy to replace and compatible with all hosts
4. Equipped with 2.8-inch color Touchscreen, intuitive operation
5. With IP65 Protection Rating, adapt to a variety of working environments
Measurement speed up to 60 + readings per minute
7. Store 1000 Measured values and 100 Screen Images
Principle
The PosiTector 6000 FNS1 Coating thickness gauge uses the magnetic Induction and eddy Current dual Measurement principles. For ferrous metal substrates, the magnetic Induction principle is used to measure nonmagnetic Coating thickness; for non-ferrous metal substrates, the eddy Current principle is used to measure nonconductive Coating thickness. The instrument can automatically identify the substrate type and switch the corresponding Measurement mode.
Applications
Coating thickness detection of metal surface, industrial painting quality control, anticorrosive coating measurement, platings thickness measurement
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 AAA alkaline batteries
2. Choose F Probe or N Probe as needed
3. Probe contact with the coating surface to be tested
4. The instrument automatically recognizes the substrate type and begins measurement

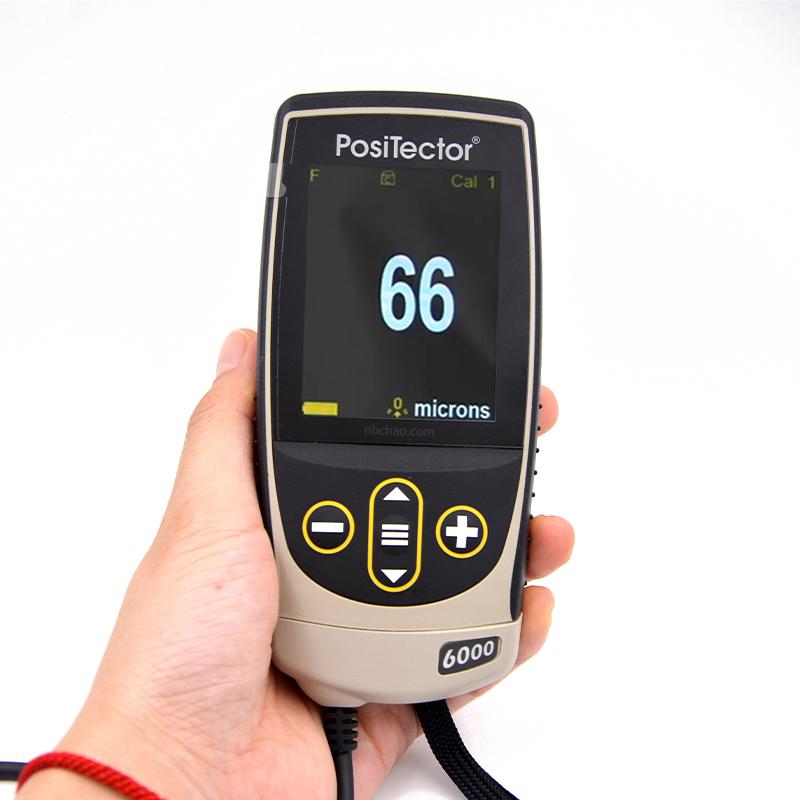

5. View measurement results through Touchscreen
6. Connect to the computer using the USB interface and analyze the data through PosiSoft software
Notice
• Ensure that the Probe is in full contact with the coated surface for accurate readings
• Regularly calibrate using Defelsko calibrating standards (STDS1, STDA1)
• Avoid use in strong magnetic or electric field environments
• Pay attention to the battery level and replace it in time to ensure Measurement accuracy
When storing measurement data, be careful not to exceed the limit of 1000 values
