Overview

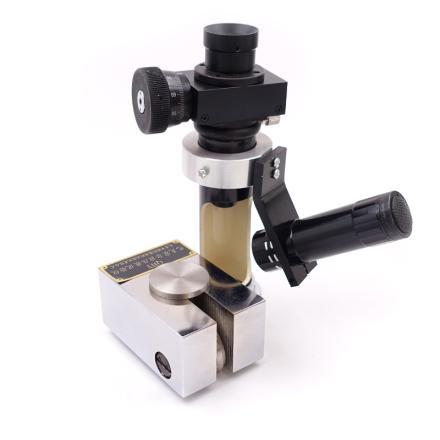

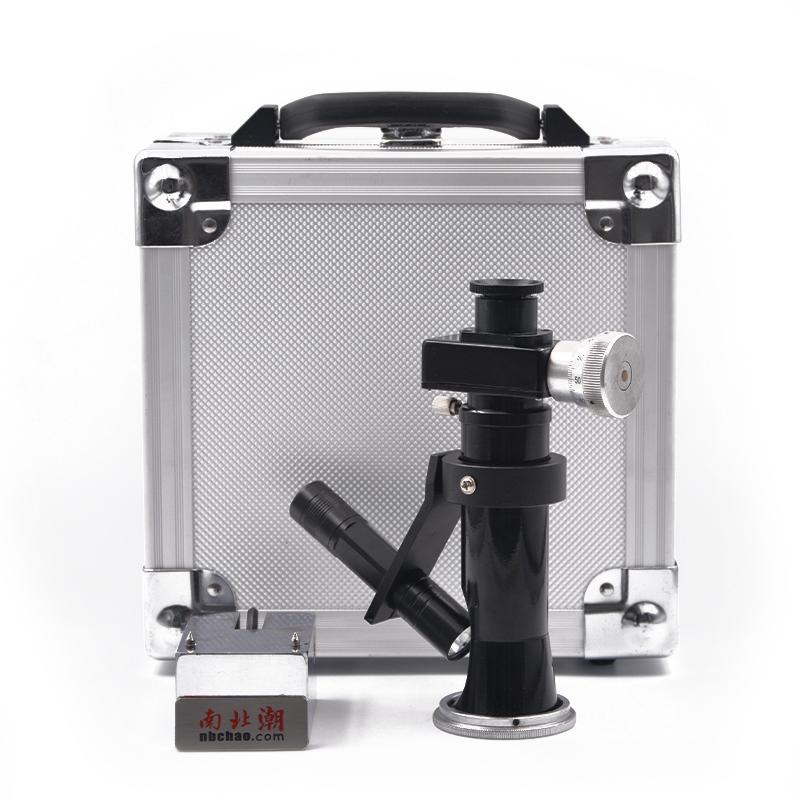

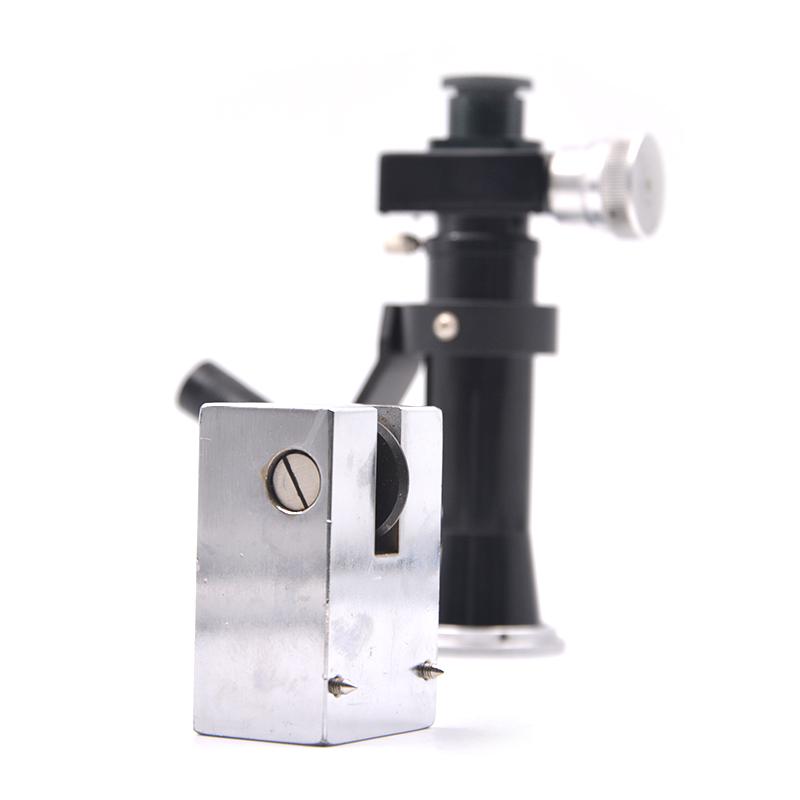

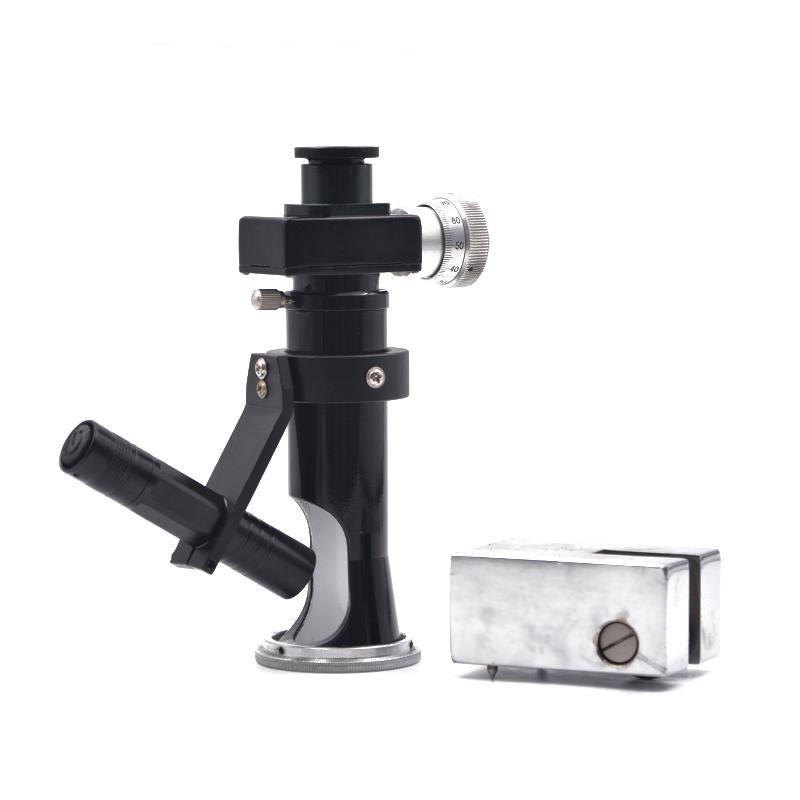

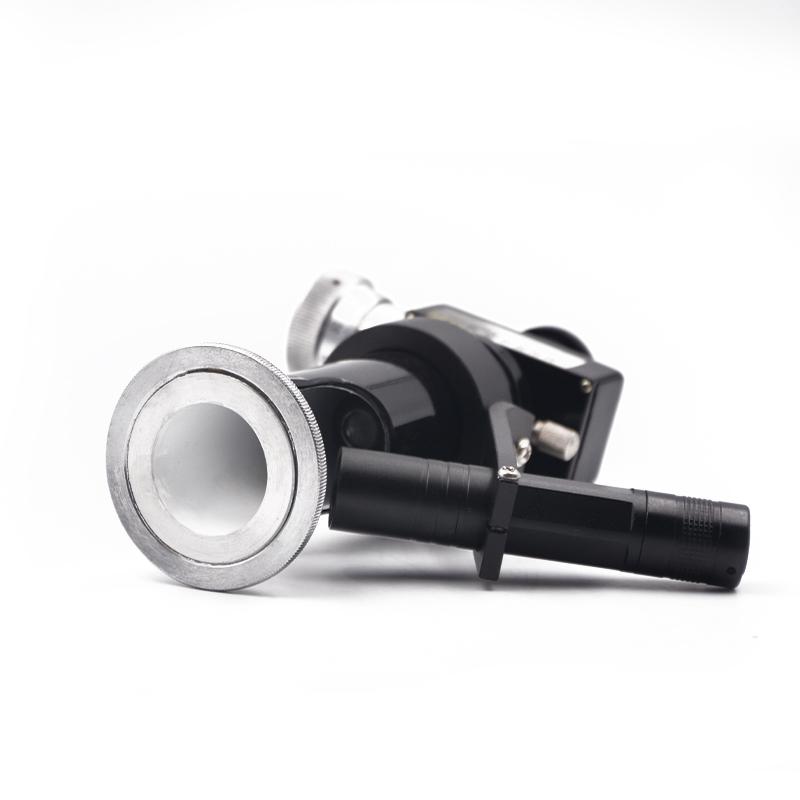

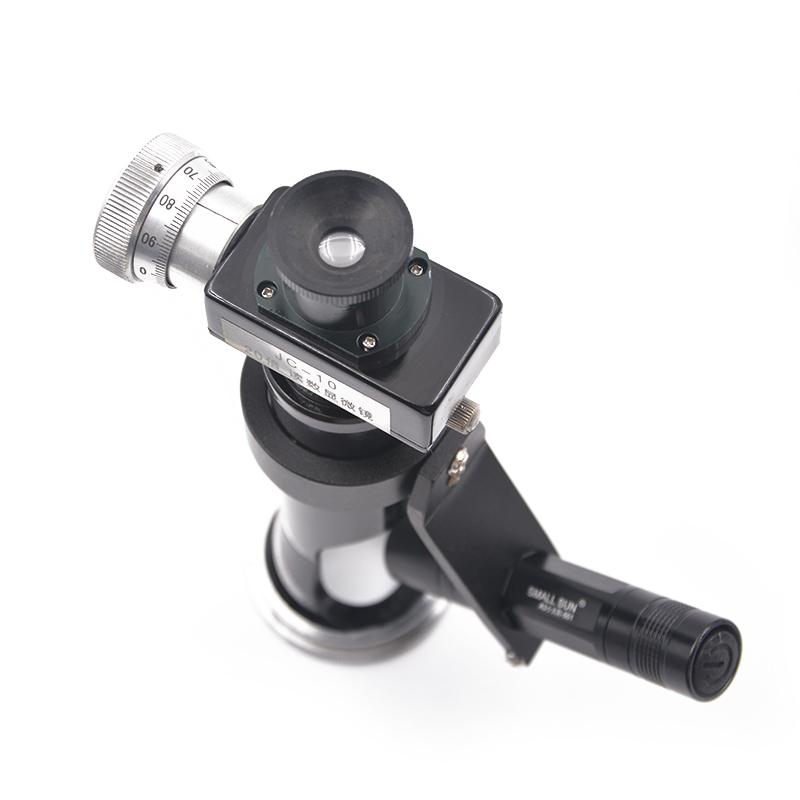

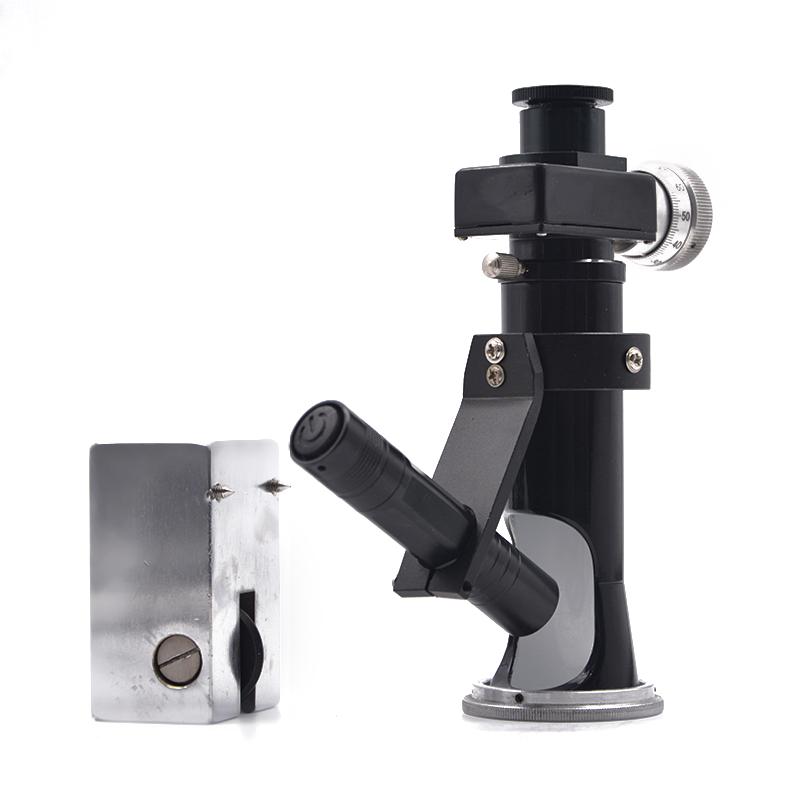

The PUSHEN QHY Buchholz Crowd Tester is used to test the pressure resistance of single or multiple coatings, but is not suitable for high resilience Coatings. The instrument includes a steel block with 2 fulcrums, a sharp-edged Crowd disc, and a 20x Microscope with scale and Illuminant.
Features
1. Equipped with 20x scale Microscope and lighting flashlight
2. Crowd reading accuracy up to 0.1mm
3. Crane load 500g, Crane knife diameter 30mm
4. Compact shape, size 200 × 80 × 50mm, weight only 2kg
Principle
During the test, the Cedar instrument was placed on the coating surface for 30 seconds to obtain the Cedar, and the length of the Cedar was observed with a Microscope and an illuminating flashlight. The length of the Cedar is inversely proportional to Hardness. The longer the Cedar, the lower the Hardness. According to the Cedar length comparison table, the coating pressure resistance can be obtained.
Standards
GB/T 9275、ISO 2815、DIN 53153
Steps
1. Place the Crowder on the coating surface
2. Hold for 30 seconds to get Caller
3. Use Microscope and Illuminated Flashlight to Observe Crane Length
4. According to the Cedar length comparison table, the coating pressure resistance is obtained
Notice
• Not suitable for high resilience Coatings
• Clearance is inversely proportional to Hardness
• Microscope for accurate reading
