Overview

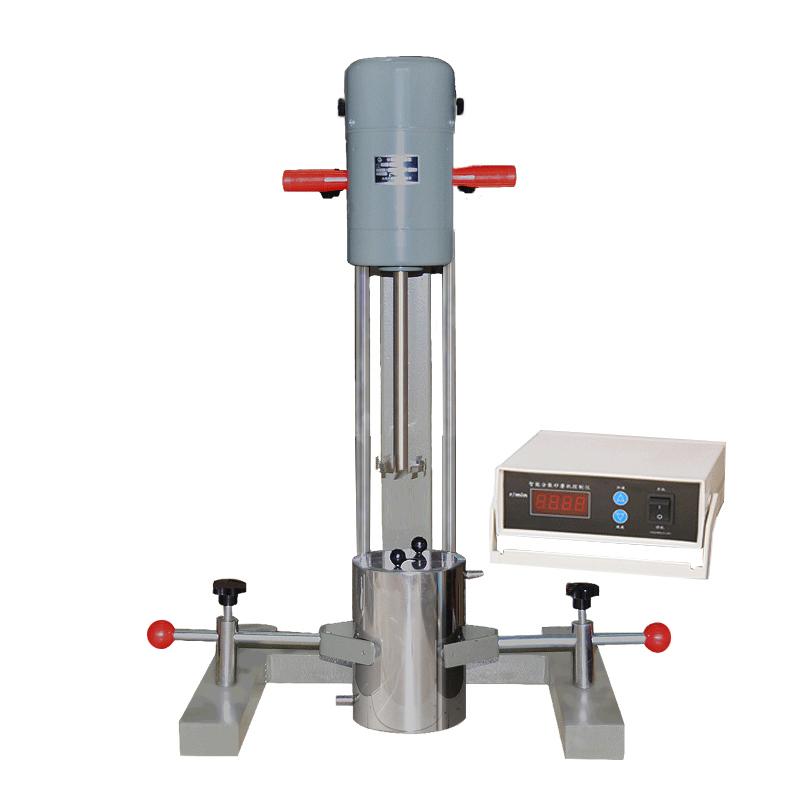

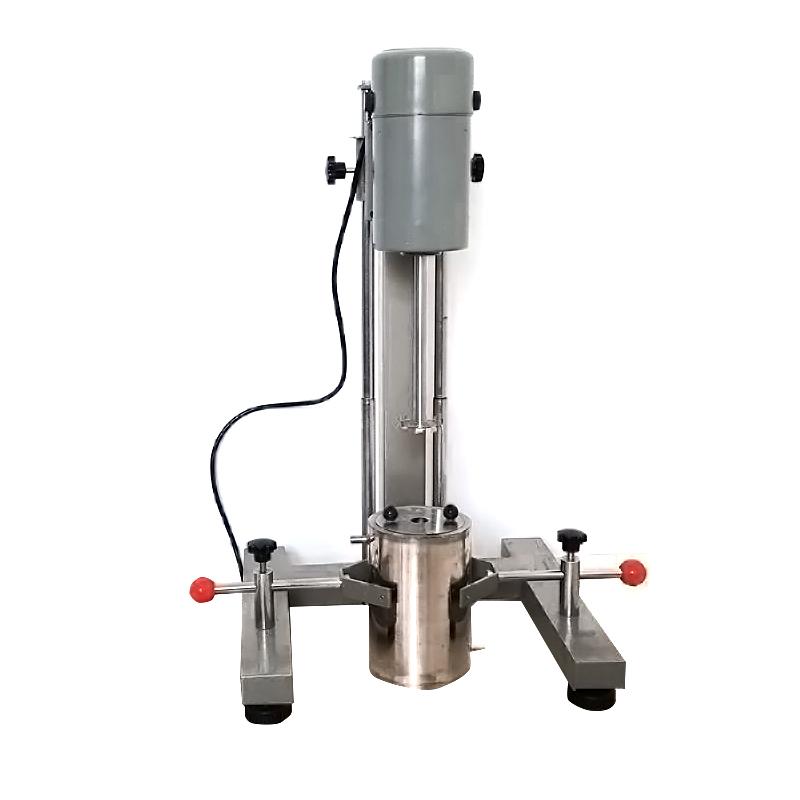

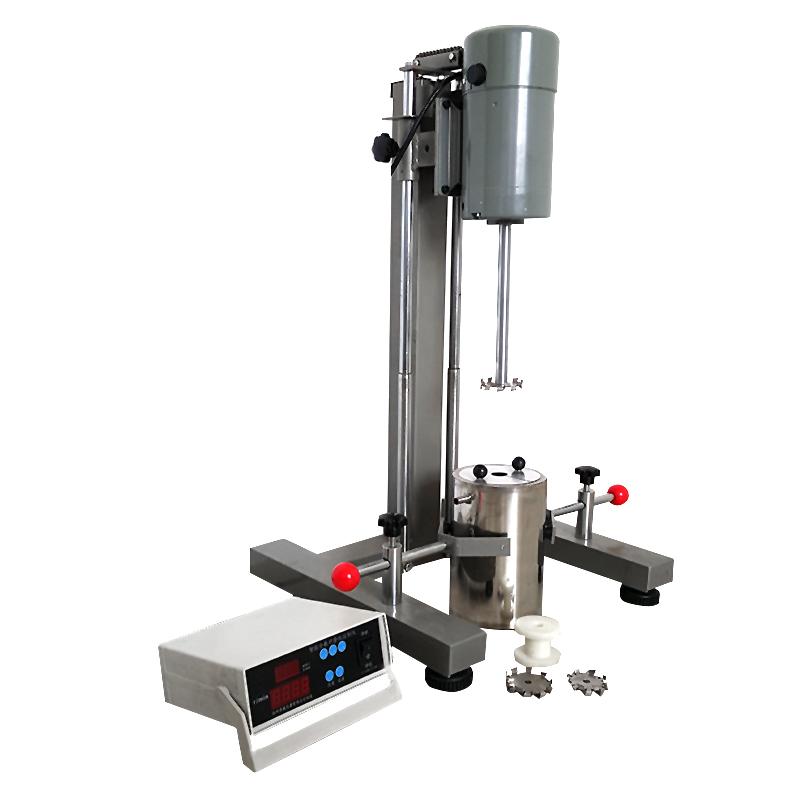

The QIWEI FS-400D Disperser (Digital Display High Speed) is a device that integrates dispersion and mixing functions. It adopts electronic constant force speed control circuit and digital display technology. It has the characteristics of high efficiency, good mixing effect, easy cleaning and simple and convenient manual lifting. This model is equipped with chain and square column struts, adjustable height, and motor Power is 400W.
Features
1. Adopt electronic constant force speed control circuit and digital display for intuitive operation.
2. Set dispersion and mixing functions in one, one machine is multi-purpose.
3. High efficiency, good mixing effect, easy to clean.
4. Manual lifting is simple and convenient, and supports height adjustment.
5. Power 400W, Processing capacity.
Principle
The FS-400D Disperser adopts an electronic constant force speed control circuit, which directly displays the rotating shaft Rotation speed digitally, and is equipped with a dispersion impeller and a sand grinding disc. The dispersion head generates a swirl/spin tangential high line speed under the high-speed drive of the motor, and the material experiences hydraulic shearing and high-frequency mechanical effects under centrifugal force, withstanding thousands of actions per minute to achieve efficient mixing, dispersion and homogenization.
Applications
Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Place the device in a stable position and connect it to the power supply.
2. Select the dispersed impeller or sand disc as needed and install it.
3. Use the manual lifting function to adjust the height of the dispersion head to the appropriate position.
4. Rotation speed (100-8000rpm) set by intelligent controller.
5. Add the material to the cylinder and start the equipment for dispersion or mixing.
6. After the operation is completed, turn off the power supply and clean the equipment.
Notice
• Power supply voltage is 220V 50HZ before use to avoid voltage mismatch.
• During operation, pay attention to the material viscosity not exceeding 100000mPa.s to prevent equipment overload.
• Regularly check the chain and lifting parts to ensure smooth lifting.
• Disconnect the power supply during cleaning to prevent the risk of electric shock.
• Select the appropriate Mixing Tank (e.g. 1.5L, 2.5L or 5L) according to the Processing capacity to avoid overloading.
