Overview

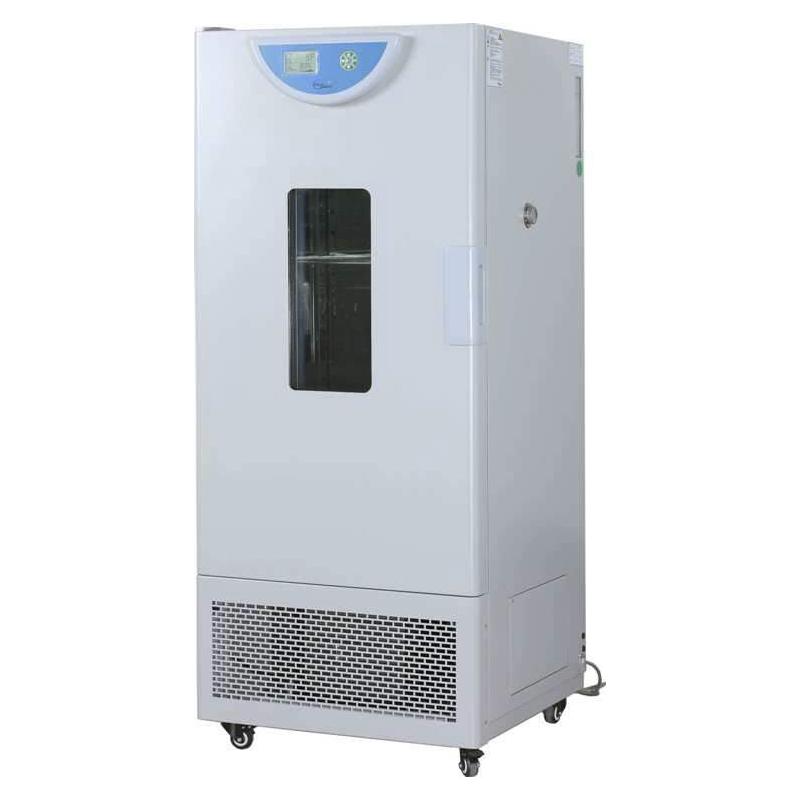

YIHENG BPMJ-150F mildew incubator is a new generation of incubator products. It combines more than ten years of design and manufacturing experience and adopts fluorine-free and environmentally friendly design. The product has dual functions of biochemical foster and ultraviolet sterilization. It adopts mirror stainless steel liner and humanized Operating interface, which is suitable for scenarios such as cell foster and microbial experiments.
Features
1. Fluorine-free environmentally friendly design, in line with the concept of healthy living
2. Large screen LCD display, Menu Operating interface, easy to understand
3. Mirror stainless steel liner, four corners and half arc transition, easy to clean
4. The left side is equipped with a 25mm test hole for easy wiring
5. Shaker can be built to foster thermostatic oscillation
6. Brand Compressor and circulating fan, even temperature and Humidity
7. Fuzzy PID controller, accurate temperature control, with timing function
8. Automatic control of circulating fan speed to avoid sample volatilization
9. Self-diagnosis function, fault information at a glance
10. Multi-stage programmable controller for automatic control operation
11. Optional data processing function, support data storage and playback
12. Safety alarm system to ensure the safe operation of the experiment
13. UV sterilization system to effectively prevent and foster pollution
Principle
The incubator uses a brand Compressor and a circulating fan to form an air duct circulation system to ensure uniform distribution of Humidity at the working room temperature. The fuzzy PID controller is used to precisely control the temperature, and the circulating fan speed can be automatically adjusted according to the thermostatic state to avoid sample volatilization caused by excessive air volume. Equipped with an ultraviolet sterilization system, the inside of the box can be regularly disinfected to prevent contamination during cell fostering.
Applications
Cell fostering, microbial experiment, mold fostering, thermostatic oscillation fostering
Standards
No relevant information
Steps
1. Connect the AC220V power supply
2. Set temperature, time and other parameters through the LCD screen
3. Programmable setting of multi-stage temperature, circulating wind speed and heating rate
4. Put in the sample and start fostering
5. Optional connection to printer or U disk for data recording
Notice
• Ambient Temperature should be kept within the range of + 5~ 35 ℃
• Pay attention to the temperature alarm prompt, the operation will be automatically interrupted if the temperature exceeds the limit
• Regularly use the UV sterilization system to disinfect the inside of the box
• Freely load and unload shelf brackets when cleaning the studio
• Additional booking is required for optional functions, and the delivery period is increased by 7 days
