Overview

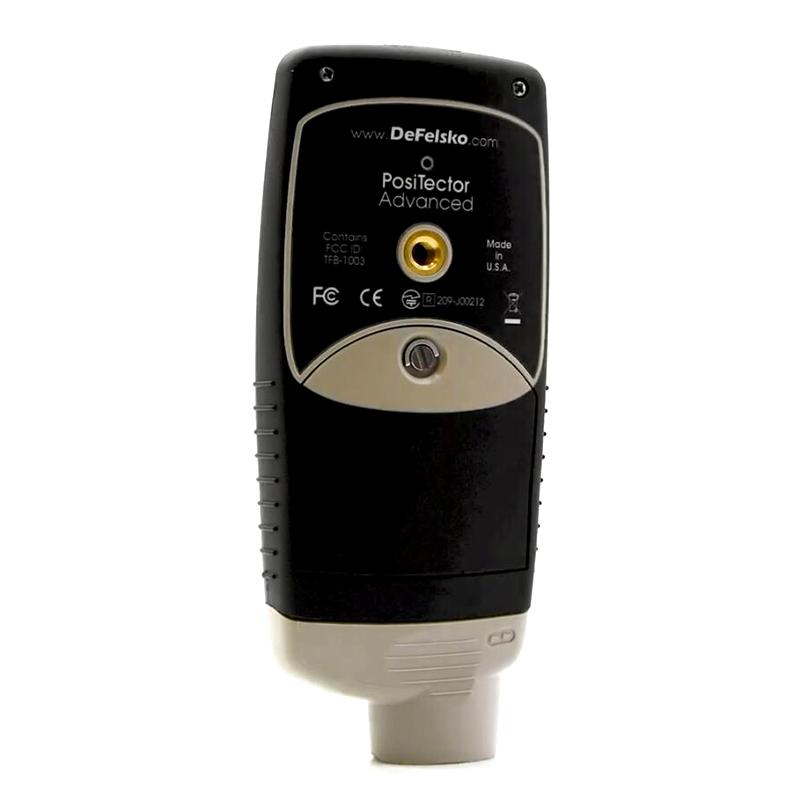

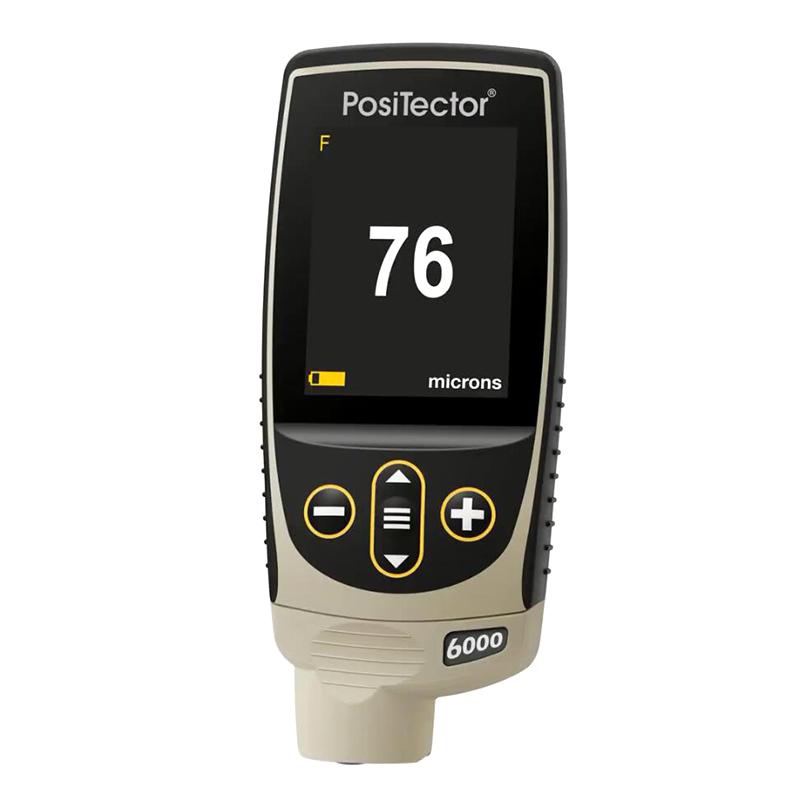

The Defelsko PosiTector 6000 FT1 Portable platings thickness gauge is an integrated standard magnetic Coating thickness gauge with built-in Probe and supports one-handed operation. The instrument is used to measure the thickness of nonmagnetic coatings on ferrous metals (such as steel), especially for thick protective coatings such as epoxy, rubber, foam fire-proof coatings, etc. Measurement range 0~ 6mm, display data through color LCD screen.
Features
1. One-piece design, built-in Probe, easy to operate with one hand
2. Measurement range, covering 0~ 6000μm
3. High resolution up to 0.1 μm
4. Equipped with 2.8-inch Color Touchscreen
5. Built-in statistical functions, including measurement times, MAX Maximum, MIN Minimum, Average, Standard Deviation
6. Large data storage capacity, can store 1000 Measured values and 100 screen images
7. Protection Rating IP65, adapt to harsh environment
8. Measurement speed, more than 60 readings per minute
9. Support multilingual systems, including Chinese and English
10. Provide USB interface and PosiSoft software suite for easy data transmission and analysis
Principle
The PosiTector 6000 FT1 Coating thickness gauge works based on the principle of magnetic Induction. The built-in FT1 Probe detects the thickness of nonmagnetic coatings on ferrous metal substrates, and the measurement signal is processed and displayed on a color LCD screen.
Applications
Ferrous metal substrate, nonmagnetic coating environment, thick protective coating measurement
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 * AAA alkaline battery
2. Power on and select the system language (e.g. Chinese or English).
3. Probe the instrument on a nonmagnetic coating surface of a ferrous metal substrate
4. Take measurements and read the thickness data on the display
5. Connect to a computer using a USB port, and transfer and analyze data through the PosiSoft software suite
6. Measured values or screen images as needed
Notice
• Only suitable for ferrous metal substrates and nonmagnetic coating environments
• Make sure the battery is fully charged before use
• Avoid Operating in Extreme Temperatures or Humidity Conditions
• Periodically calibrated to maintain Measurement accuracy
• Pay attention to dust and moisture when storing, and meet the requirements of IP65 Protection Rating
