Overview

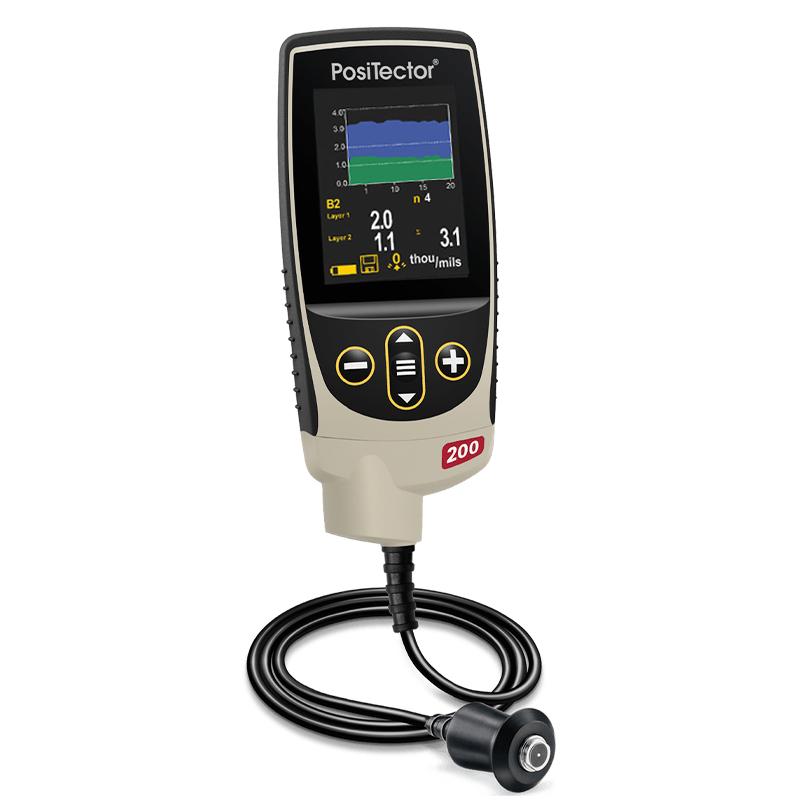

The PosiTector 200 C3 is a Defelsko brand ultrasonic Coating thickness gauge designed for Non-metallic substrates. The instrument uses proven ultrasound technology for nondestructive measurement of Coating thickness on wood, concrete, plastic and other substrates. The advanced model can measure up to 3 layers of coating systems.
Features
1. Easy measurement: most applications do not need to be calibrated, equipped with enhanced one-handed menu navigation and flashing display, suitable for use in noisy environments
2. Good protection: with weatherproof performance, resistant to solvents, acids, oils, water and dust, equipped with shock absorption protective rubber leather case
3. High compatibility: using PosiTector interchangeable platform, any PosiTector Probe can be connected to a single meter body
4. The link is valid: supports USB, WiFi and Bluetooth connections, compatible with PosiSoft PC, Mac and Smartphone software
5. Accurate and reliable: Response Sensor provides fast and accurate readings, with calibrated certificate traceable to NIST or PTB
6. Powerful: with statistical mode, screen capture, Data storage and software update functions
Principle
This product uses proven non-Destructiveness ultrasound technology for measurement of Coating thickness through ultrasonic principles. The Response Sensor provides fast, accurate readings that comply with ASTM D6132 and ISO 2808 standards.
Applications
Wood, plastic and other polymer coatings, concrete, fiberglass and other coatings, thick and soft coatings such as polyurea, asphalt neoprene, very thick polymers
Standards
ASTM D6132、ISO 2808
Steps
1. Prepare for measurement, most applications without calibrating
2. Operate with enhanced one-handed menu navigation
3. View readings through a high contrast ratio backlit display
4. Continuous display/update of Average, Standard Deviation, Min/Max Thickness and Readings using Statistical Mode
5. Transfer data via sealing USB port or Bluetooth connection
6. Use the screen capture function to record and save images to USB flash memory
Notice
• Measurement range only for polymer based coatings
• D Probe polyurea Measurement range from 50 to 5000 μm (2 to 200 mil)
The minimum single-layer thickness is only suitable for multi-layer applications, depending on the material to be tested
• Powered by alkaline or rechargeable batteries
• The instrument body and Probe enjoy a two-year warranty
Software updates over the network ensure that instruments are kept up to date
