Overview

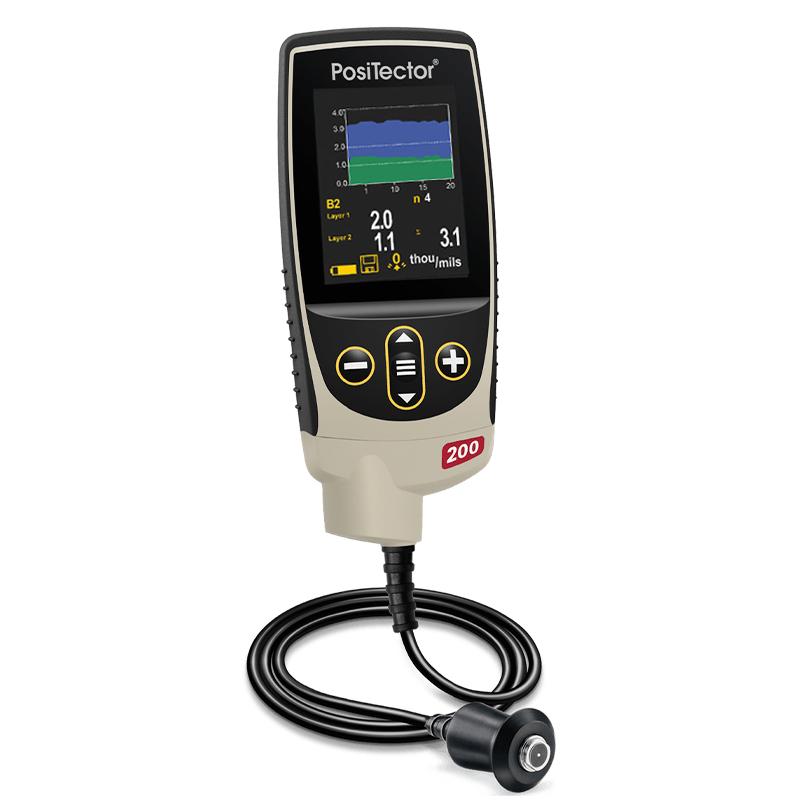

The PosiTector 200 D3 is the Defelsko brand ultrasonic Coating thickness gauge for Coating thickness measurement on Non-metallic substrates. The product uses proven ultrasonic technology to nondestructive measurement of Coating thickness on wood, concrete, plastic and other substrates. Advanced models can measure up to 3 layers of coating systems.
Features
1. Technology mature: using ultrasound technology, suitable for a variety of applications, no need to calibrate
2. Good protection: weatherproof design, resistant to solvents, acids, oils, water and dust
3. High compatibility: PosiTector is an interchangeable platform that supports multiple Probe connections
4. The link is valid: supports USB, WiFi and Bluetooth connections, compatible with PosiSoft PC, Mac and smartphone software
5. With calibrated certificate: calibrated certificate can be traced back to NIST or PTB
6. Simple operation: enhanced one-handed menu navigation, flashing display suitable for noisy environment
7. Durability: shock-absorbing protective rubber leather case, instrument body and Probe two-year warranty
8. High Accuracy: Response Sensor Provides Fast and Accurate Readings
9. Versatility: high contrast ratio backlit display, unit switchable, multi-language display
10. Powerful: statistical mode, screen capture, software update and Data storage
Principle
The PosiTector 200 D3 uses the ultrasonic Measurement principle to nondestructive detect Coating thickness by transmitting and receiving ultrasonic signals. Sensor Response is fast, ensuring accurate readings and compliance with relevant international standards.
Applications
Thick, soft coatings such as polyurea, asphalt, neoprene, very thick polymers
Standards
ASTM D6132、ISO 2808
Steps
1. Prepare for measurement: most applications do not require calibrating
2. Operate with enhanced one-handed menu navigation
3. Read data in noisy environment with flashing display
4. Restore factory settings with RESET function
5. Connect USB, WiFi or Bluetooth for data transmission
6. Use statistical mode to view averages, Standard Deviations, etc
Notice
* Scope restrictions apply only to polymer based coatings
The minimum single-layer thickness for multi-layer applications depends on the test material
Make sure the equipment is in good condition before use and avoid operating in extreme environments
Make sure the connection is stable during data transmission
* Regularly check battery level, use alkaline or rechargeable batteries
