Overview

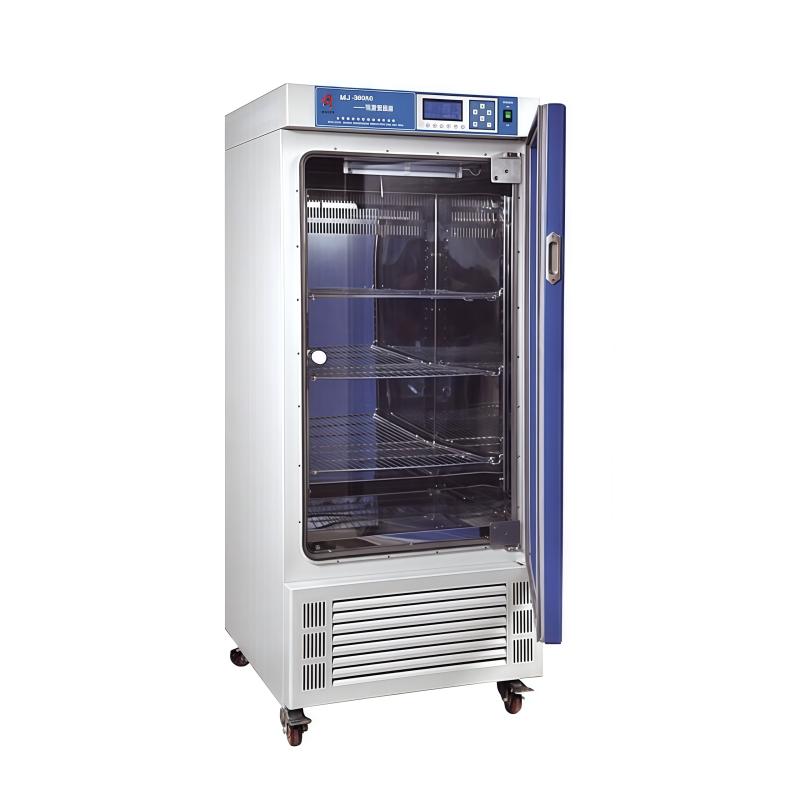

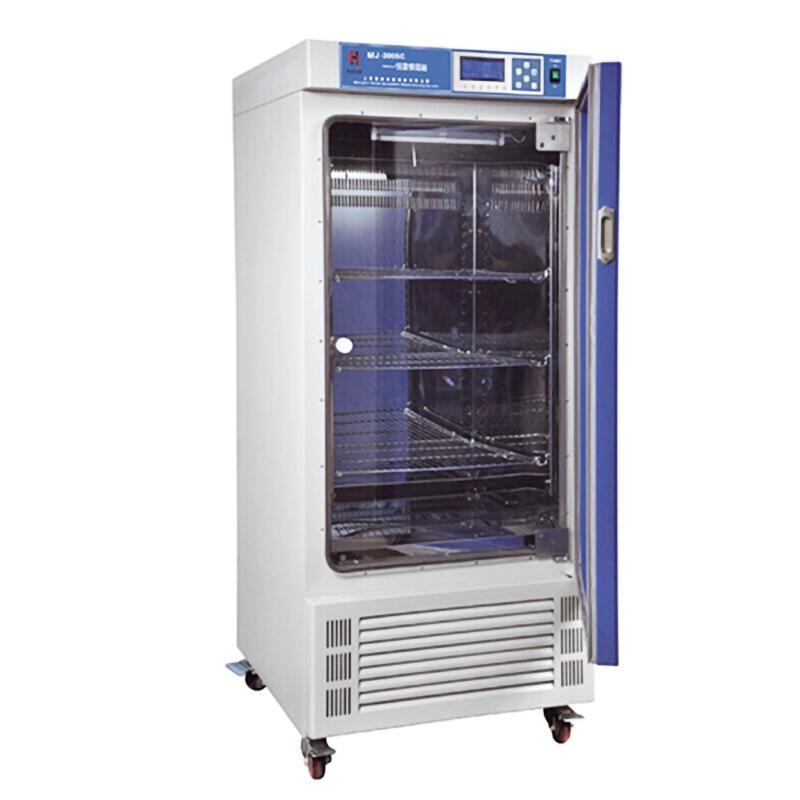

HUITAI MJ-150F-I mildew incubator is a special thermostatic equipment suitable for environmental protection, drug inspection, agriculture, livestock, aquatic and other scientific research, institutions, and production departments. It is used for water body analysis and BOD determination, as well as the fostering, preservation, plant cultivation and breeding tests of bacteria, molds and microorganisms.
Features
1. Humanized design: Large screen LCD display multiple sets of data, Menu Operating interface is simple and easy to understand; Mirror stainless steel liner is easy to clean, shelf spacing is adjustable; energy saving and environmental protection without fluorine refrigerant; optional test hole for experimental operation.
2. Quality assurance: use brand Compressor and self-developed cooling system to extend life; JAKEL tube flow circulating fan and unique air duct to ensure Temperature uniformity; PID Control mode temperature control is accurate, with timing function.
3. Ultraviolet sterilization system: the top layer of the box is designed to effectively kill floating bacteria and prevent pollution.
4. Intelligent LCD programmable multi-stage controller (optional): 15 30-step programs can be preset, and each setting time is 1 to 99 hours and 99 minutes to achieve automatic control.
5. Independent temperature limit alarm system (optional): over-temperature automatic interruption and sound and light alarm to ensure safety.
6. Convenient data processing (optional): USB or RS485 interface can be connected to a printer or computer to record temperature parameters.
Principle
The mildew incubator precisely adjusts the temperature through the PID Control mode with small fluctuations. The JAKEL tube flow circulating fan and unique air duct structure are used to form a good air circulation system to ensure uniform temperature in the box. The ultraviolet sterilization system is located on the top layer of the box to kill floating bacteria in the circulating air and prevent foster pollution. The optional intelligent program controller realizes multi-stage programmable automatic operation.
Applications
Environment protection, drug inspection, agriculture and livestock, aquatic products, scientific research, colleges and universities, production departments
Steps
1. Connect the power supply and set the required temperature and time parameters.
2. Adjust the shelf spacing in the box as needed.
3. Start the device and monitor the LCD display data.
4. Optional use of ultraviolet sterilization system or intelligent program controller for automatic control.
5. After the experiment, turn off the power and clean the liner.
Notice
• Power supply voltage is AC 220V 50Hz/10A before use to avoid overload.
• Regularly clean the mirror stainless steel liner to prevent contamination.
• Pay attention to the independent temperature limit alarm system prompt when overheating, and deal with it in time.
• Optional accessories such as test holes and program controllers should be installed and used according to the instructions.
• Avoid operating in humid or high temperature environments to extend equipment life.
