Overview

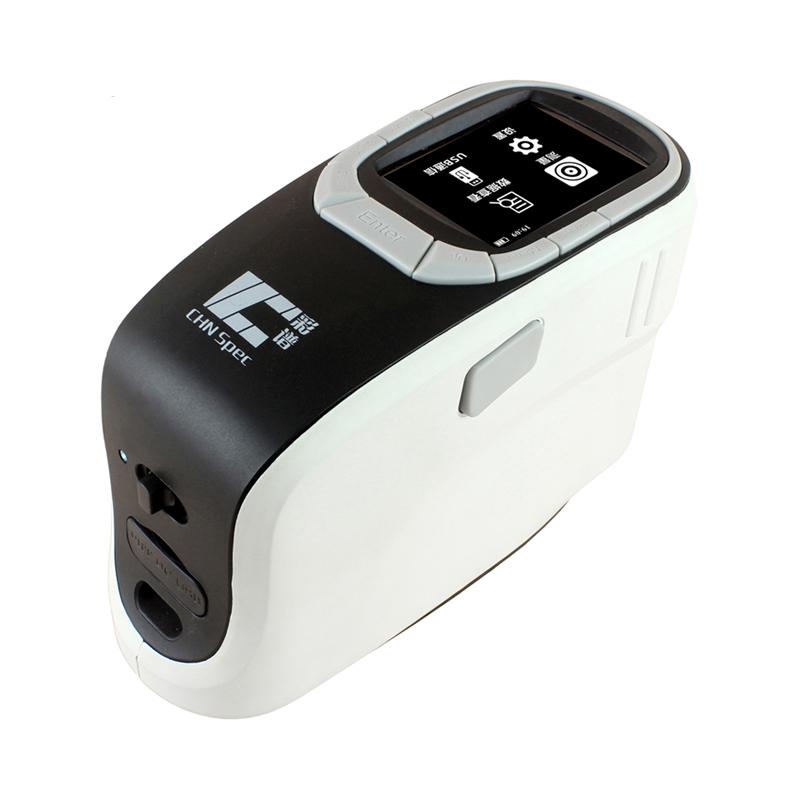

The CHNSPEC CS-580A Colorimeter is a spectroscopic colorimeter with high-quality components and D/8 lighting structure for stable and accurate measurement. It uses CLEDs Illuminant to avoid white light loss, and has an automatic Gloss compensation function to eliminate the influence of different material surfaces Glossiness, which is cost-effective.
Features
1. Adopt internationally widely applicable D/8 conditions, SCI/SCE compatible lighting
2. Provide three years quality assurance, can be returned without passing the Measurement, and equipped with replacement machines
3. Color analysis software as standard, supports Color data management and comparison
4. Each instrument comes with a national Measurement verification report. Traceability to the National Measurement Institute
5. Standard light sources and nearly 40 chroma indicators, customizable test methods
6. Built-in camera viewfinder, patented design, clear observation of measurement area
7. Optional Colorschemer studio to support multi-industry color scheme requirements
8. Professional horizontal design, no moving parts, avoid shaking
9. Large storage space, can store 100 sets of master standards and 20,000 records
10. Support SCI and SCE simultaneous measurement, LED Illuminant long life, low power design
Principle
The CHNSPEC CS-580A Colorimeter uses a D/8 illumination structure, i.e. a scattering Illuminant and an 8-degree viewing angle, combined with the SCS Optical inspection engine and ETC real-time calibrating technology. It uses CLEDs full-band equalized LED Illuminants, through a spectroscopic integrated system measurement reflectance, and synchronizes SCI and SCE measurements to eliminate the influence of mirror reflection and ensure the accuracy of Color measurement.
Applications
Color scheme, Coatings, Spinning & weaving, Plastics, Food, Building materials, inks, pigments, printing, Paper, Glass, Cosmetics, Dental care
Standards
Measurement verification standards
Steps

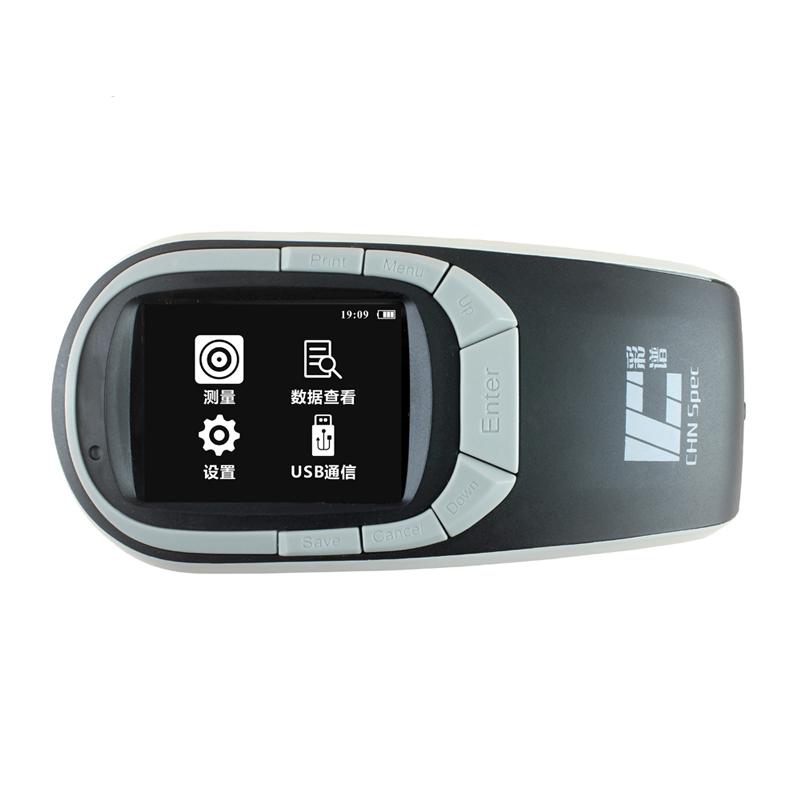

1. Power on the instrument and select Operating language
2. Align the measured area through camera viewing
3. Select Measurement mode and Illuminant condition
4. Perform measurements and the instrument automatically displays SCI/SCE data
5. Transfer data to PC software via USB or Bluetooth
6. Use software to analyze Color data and generate reports
7. Optional micro printer printing results
Notice
• Avoid operating in high temperature or high Humidity environment, recommended Ambient Temperature 0~ 45 ℃, relative humidity 80% or lower
• Avoid condensation of water vapor during storage, Temperature range -25~ 55 ℃
• Ensure the stability of the instrument during measurement and avoid handheld jitter
Periodically calibrate instruments to ensure measurement accuracy

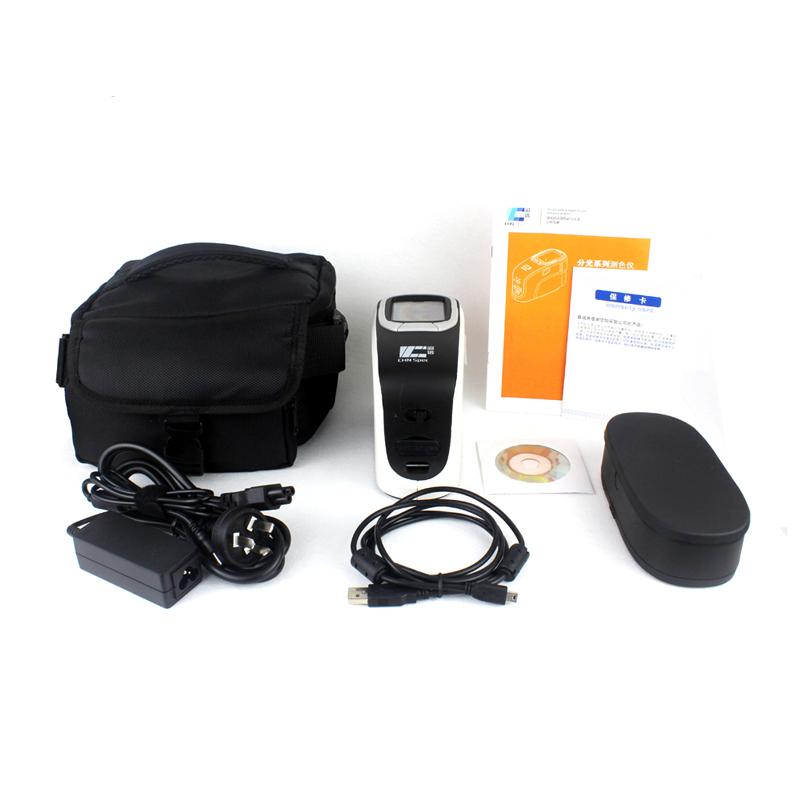

• Use original accessories to avoid affecting performance

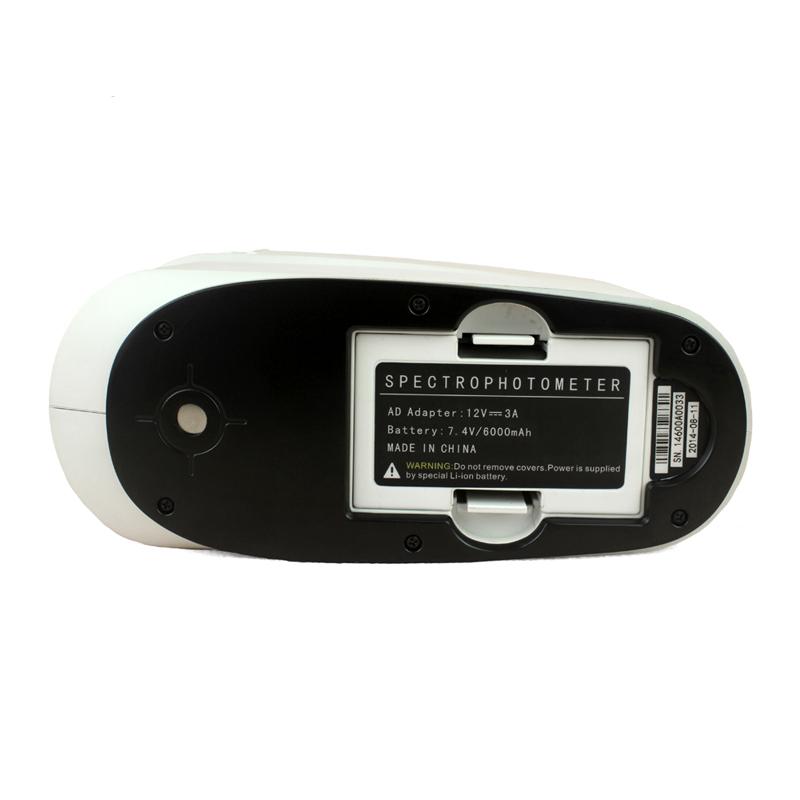

• Battery rechargeable, repeability, pay attention to reasonable use to prolong life
