RDS 90G #3/8 "Gap Applicator Rod Stainless steel 205.7μm wet film thickness

Name: RDS 90G #3/8 "Gap Applicator Rod Stainless steel 205.7μm wet film thickness
Brand: RDS
SKU: NB039474
Price: 176.0 USD
Availability: PreOrder

$ 176.00Ex works

The gap wire-wound structure is used to reduce blockage and scratches, and the 205.7 μm wet film thickness is combined with the wide and shallow cavity design to promote better flow and complete wetting of high viscosity fluids.

Model

90G# 3/8"

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB039474

Service :The delivery and service By NBCLab.Com

Overview

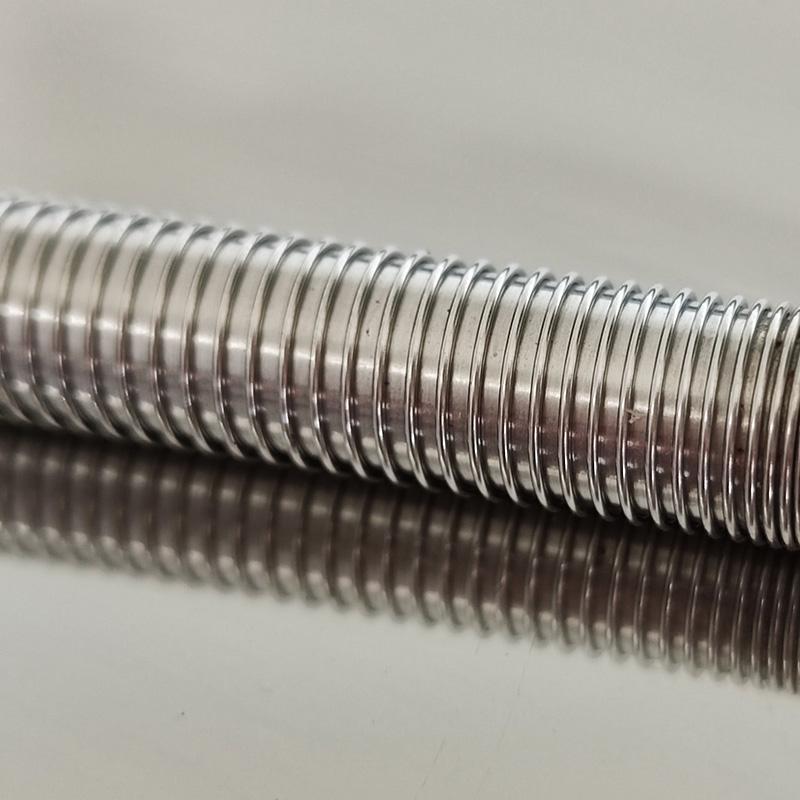

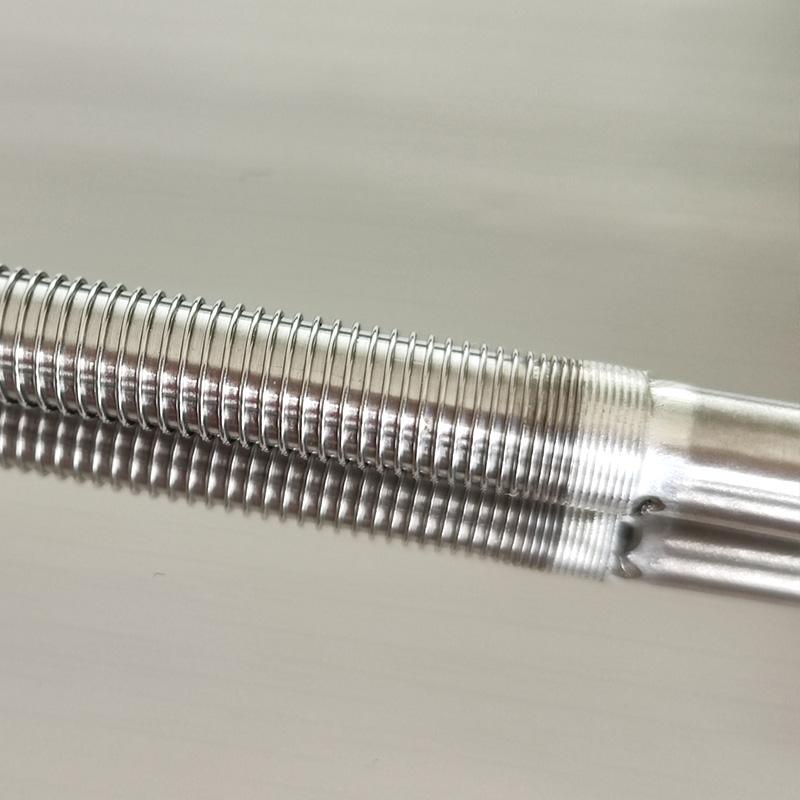

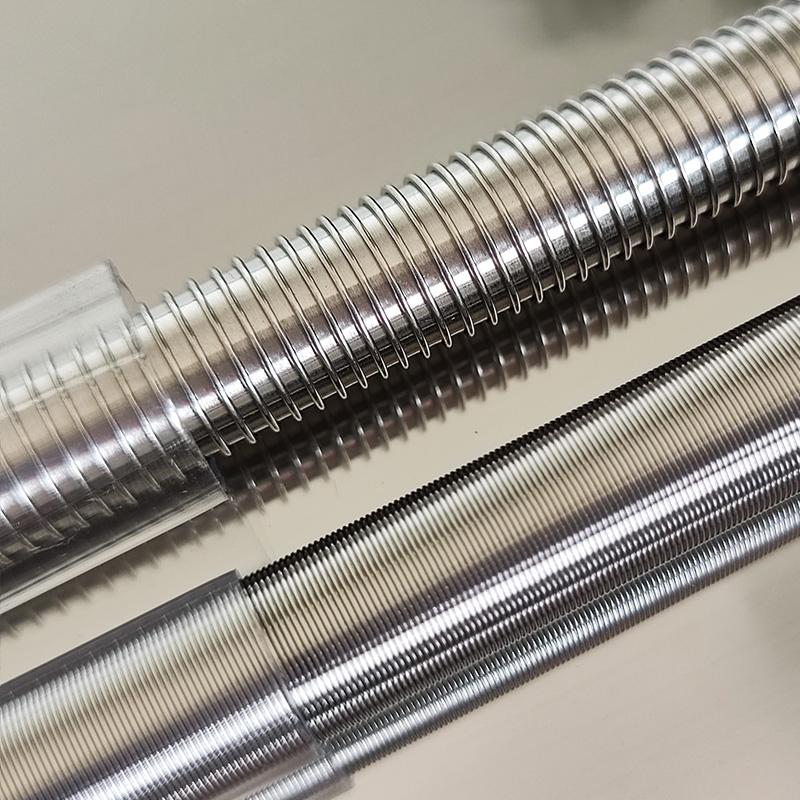

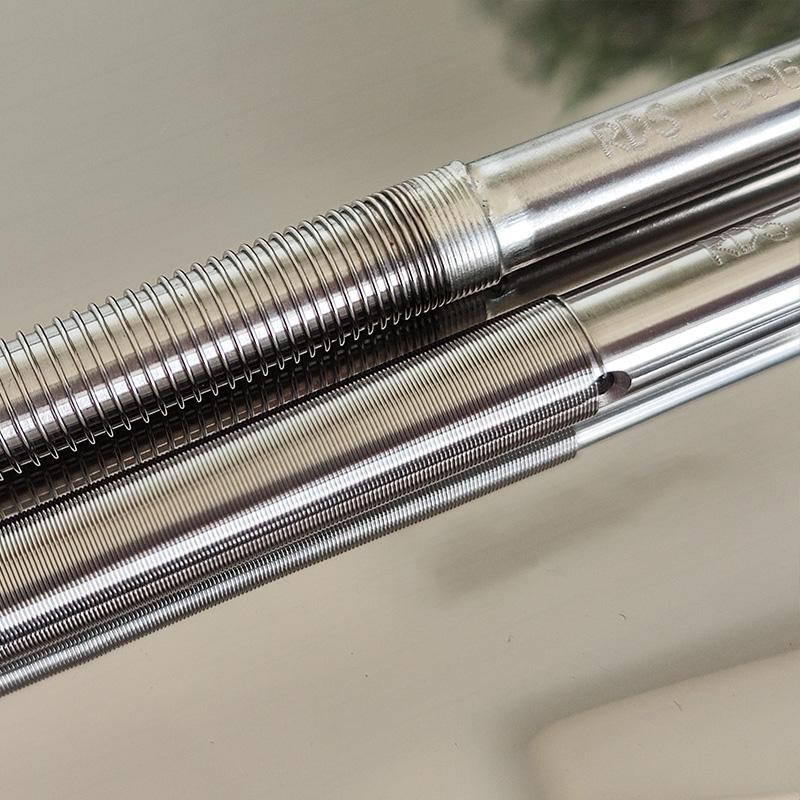

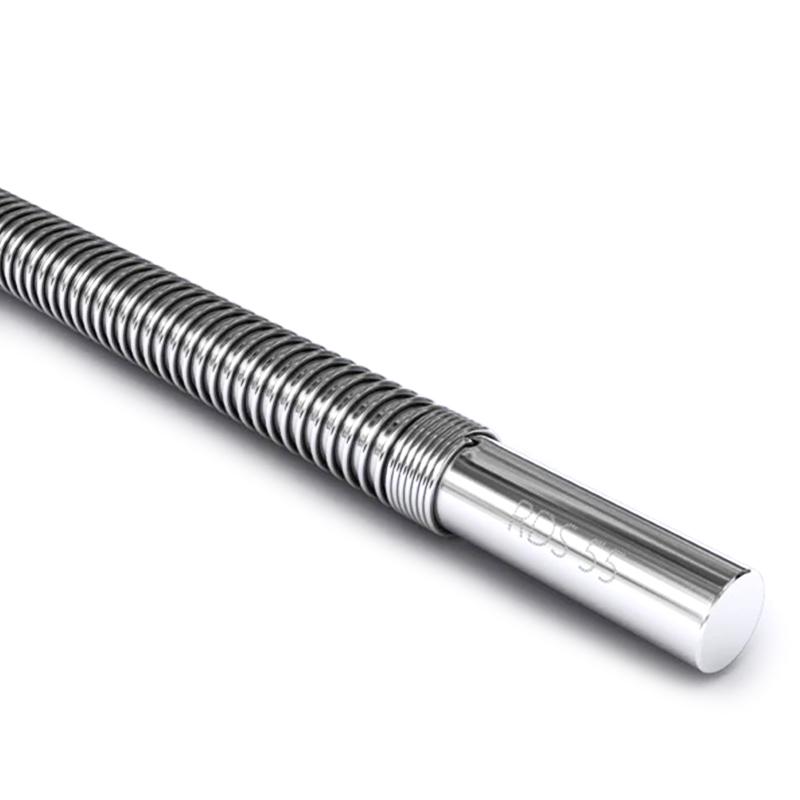

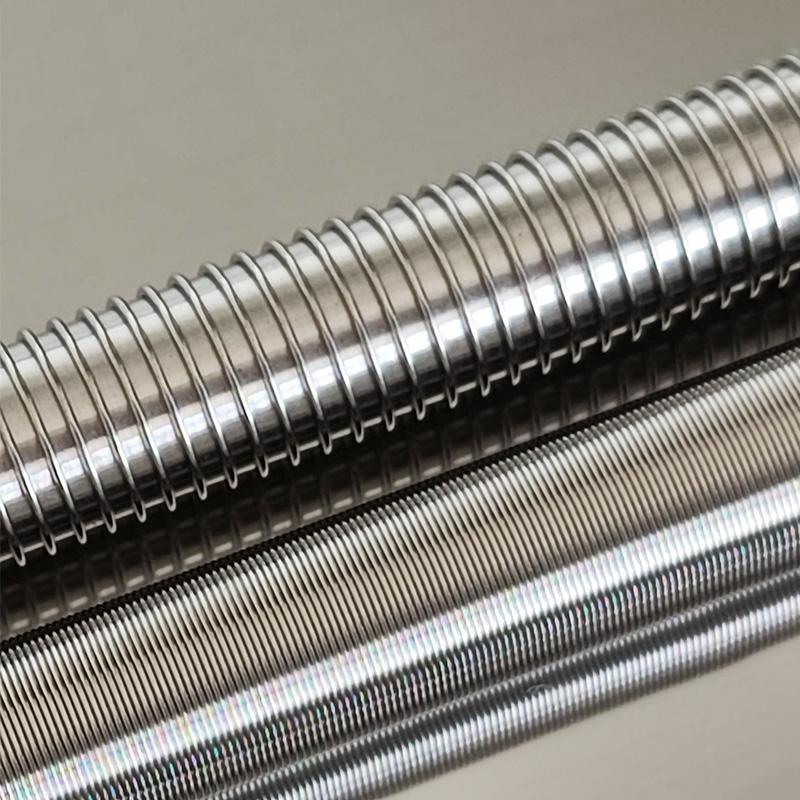

The RDS 90G #3/8 "Gapped Applicator rod is a Spreader tool designed for high viscosity fluids, manufactured in stainless steel with a diameter of 9.52mm, a total length of 400mm, an application width of 300mm, and a wet film thickness of 205.7μm.

Features

1. Adopt gap wire-wound production process to reduce fluid blockage and scratches. 2. Wide and shallow cavities are formed by winding smaller wires to promote the flow of thick coatings. 3. Smaller wire design reduces coating flow interruption and enhances wetting effect.

Principle

Following the Mayer Rod film principle, high viscosity fluids can flow better by wrapping smaller wires at spacing to form cavities. Smaller wires create smaller interruptions in the coating flow, allowing the coating to wetting more completely.

Applications

Spreaders for high viscosity fluids, thick coating prepatives

Steps

1. Prepare high viscosity fluid samples. 2. Applicator rod on the substrate surface. 3. Apply pressure evenly and move Applicator rod for Spreader. 4. Clean Applicator rod after Spreader.

Notice

• Applicator rod clean and free of blockage before use • Spreaders maintain uniform pressure and speed • Only for High Viscosity Fluid Spreaders • Clean in time after use to prevent residues

Production process
interstitial wire-wound
wet film thickness
205.7 μm
rod diameter
9.52mm
Total length
400mm
application width
300mm
material
stainless steel
