Overview

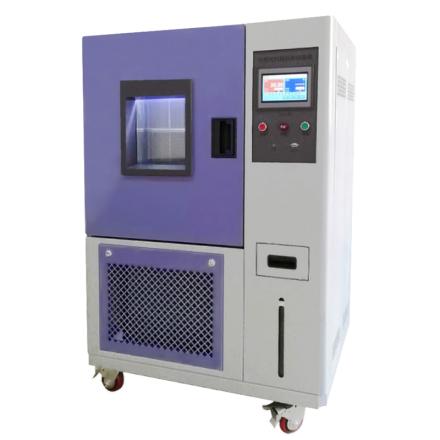

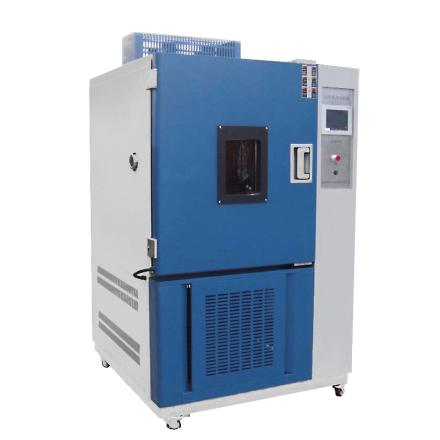

KESIONOTS KS-OTS-HD225LC low/high temperature test chamber, also known as environmental test chamber, is suitable for high temperature and low temperature Reliability test of industrial products. The equipment is used for parts and materials of electronic and electrical, automobile and motorcycle, aerospace, ship weapons, colleges and universities, R & D institutions and other related products to inspect various performance indicators under high temperature and low temperature (alternating) cycle changes, and support product design, improvement, identification and inspection, such as aging test.
Features
1. Temperature range: -40~ 150 ℃
2. High temperature resolution accuracy: +/- 0.1 ℃
3. Temperature Uniformity: +/- 1.0 ℃
4. High temperature control accuracy: +/- 1.0 ℃
5. Temperature Fluctuation: +/- 0.5 ℃
6. Fast heating rate: Technologies 4.0 ℃/min
7. Stable cooling rate: Technologies 1.0 ℃/min
8. Studio material quality: stainless steel
9. Advanced outer box material: cold plate nano paint
10. Excellent thermal insulation material performance: high temperature resistance and high density chlorine-based formic acid vinegar foam insulator material
11. Reliable refrigeration system: air, water-cooled/double-stage Compressor
12. Complete protection devices: no fuse switch, Compressor overload protection switch, refrigerant high and low voltage protection switch, ultra-humidity over-temperature protection switch, fuse, fault warning system
13. Complete accessories: viewing window, 50mm test hole, PL box light, Shelf, wet and dry ball gauze
14. Controller system optional: Korean or Japanese "OYO" brand
15. High-quality refrigeration system brand: French "Taikang" brand or German "BITZER"
Principle
The low/high temperature test chamber realizes temperature control through the refrigeration system and the heating system. In the aging test such as promoting the deterioration of sulfur rubber, high temperature and low temperature environment changes are simulated. For example, one day of testing at 70 ° C is theoretically equivalent to 6 months of exposure to the atmosphere to calculate the tensile force and elongation change rate before and after heating.
Applications
Electronics and electricians, automobiles and motorcycles, aerospace, ships and weapons, colleges and universities, R & D institutions
Standards
GB10592-89、GB2423.1、GB2423.2、GJB150.3、GJB150.4、IEC、MIL
Steps
1. Power supply: 220VAC +/- 10% 50/60Hz or 380VAC +/- 10% 50/60Hz according to Power supply voltage requirements
2. Set temperature parameters: Set the required Temperature range through the controller system
3. Place the sample: put the parts or materials of the product to be tested into the studio
4. Start-up test: run the equipment for high temperature, low temperature or alternating cycle test
5. Monitoring process: observe the test status through the viewing window and test hole
6. End the test: stop the equipment after a predetermined time or condition is reached
7. Take out the sample: perform performance index inspection and analysis
Notice
• Power supply voltage meets equipment requirements to avoid overload
• Regularly check whether the protection device such as no fuse switch, Compressor overload protection switch is normal
• Before use, confirm that the refrigeration system is running stably and the refrigerant pressure is within a safe range
• Avoid over-humidity or over-temperature operation to prevent triggering the protection switch
• Pay attention to the integrity of thermal insulation materials during maintenance to prevent heat loss
• Close the test hole and viewing window in time after use to keep the temperature stable
• Dry and wet bulb gauze needs to be changed regularly to ensure accurate humidity measurement
