Overview

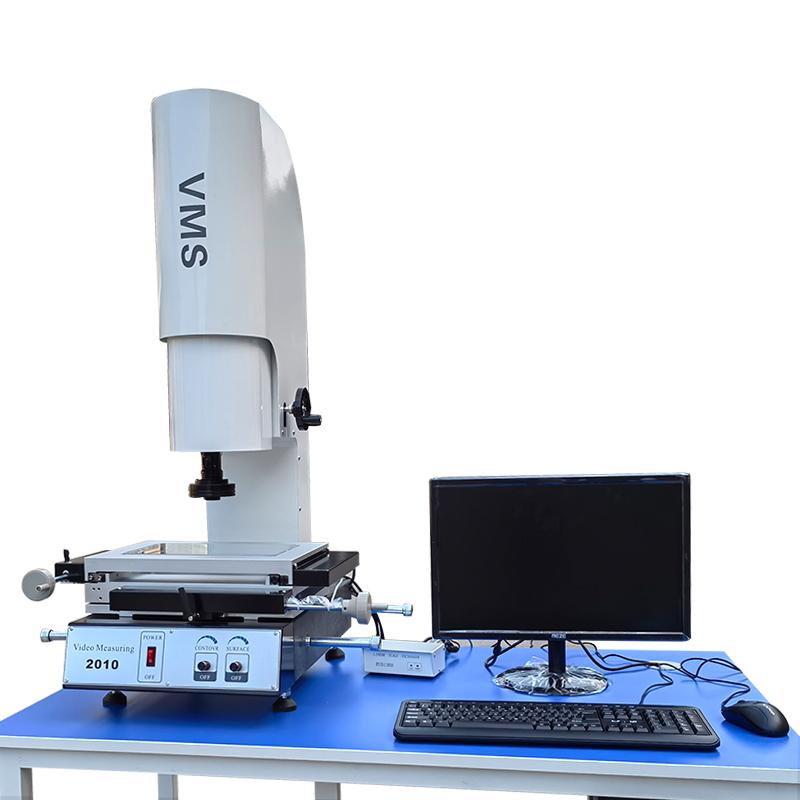

The manual imager NBC-YX-2010 adopts the digital Measuring method to convert the shape of the measured object into a computer through image acquisition, and uses professional measurement software for size measurement. The instrument is mainly used for the detection, positioning, evaluation and diagnosis of various defects (welds, crazing, inclusions, pores, etc.) inside the workpiece, and is suitable for laboratories and engineering sites.
Features
1. Adopt all-marble structure (base, column, workbench), use High Accuracy "Jinan Green" natural granite, two-layer design and precision grade V-shaped guide rail to ensure high Stability and rigidity, stable chemical performance, corrosion resistance, no deformation, no rust.
2. Strengthen Product Structure and Appearance Design, Focus on Software Function Practicality and Stability, Provide Cost-effective Products.
3. Three-axis friction precision transmission, sensitive and reliable, no backlash, fast movement.
4. Optical inspection system and high resolution CCD ensure clear measurement picture.
5. Adjustable LED annular surface light source to achieve large-angle lighting and avoid thermal deformation of the workpiece.
6. Optical inspection ruler and data processing by the digital measurement and data processing system.
Principle
The two-dimensional image measurement instrument converts the shape of the measured object into the computer through image acquisition, and uses professional measurement software for size measurement, replacing the traditional projector's Optical inspection projection magnification method.
Applications
Boiler, Pressure Vessel, Aerospace, Aviation, Electric Power, Petroleum, Chemical Industry, Offshore Oil, Pipeline, Military Industry, Shipbuilding, Automobile, Machinery Manufacturing, Metallurgy, Metal Processing Industry, Steel Structure, Railway Transportation, Nuclear Power, Universities
Steps
1. Place the measured object on the workbench.
2. Transform the shape of the object into the computer through the image acquisition system.
3. Use professional measurement software for dimensional measurement and analysis.
Notice
• Recommended operating environment: temperature 19~ 24 ℃, humidity 45%~ 75%.
• Power supply voltage is 220V (AC)/50HZ to ensure power matching.
• Optional accessories include Z-axis image altimetry or British Reishaw probe contact measurement, optional according to requirements.
